NAVIGATION & FRONT MONITOR DISPLAY
86140ARECEIVER ASSY, RADIO & DISPLAY
DENSO TEN,MEXICO PACKAGE
PANASONIC,TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
sub86100-47891
PANASONIC,TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
sub86100-47892
PANASONIC,TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
sub86100-47893
PANASONIC
PANASONIC,TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
PANASONIC
DENSO TEN,CAMBODIA SPEC&
DENSO TEN,MONGOLIA SPEC&
DENSO TEN,LAOS SPEC&
DENSO TEN,VIETNAM SPEC&
DENSO TEN
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
CAMBODIA SPEC&
MONGOLIA SPEC&
LAOS SPEC&
VIETNAM SPEC&
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
86190EADAPTER ASSY, STEREO JACK
AUDIO-AUDIO LESS & 6SPEAKER
86211JBRACKET, RADIO RECEIVER, NO.1
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
86212CBRACKET, RADIO RECEIVER, NO.2
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
86730AMICROPHONE ASSY, TELEPHONE
AUDIO-AUDIO LESS & 6SPEAKER
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&AUDIO-AUDIO LESS & 6SPEAKER
86860ANTENNA ASSY, NAVIGATION
AUDIO-AUDIO LESS & 6SPEAKER
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&AUDIO-AUDIO LESS & 6SPEAKER
86862BRACKET, NAVIGATION ANTENNA
AUDIO-AUDIO LESS & 6SPEAKER
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&AUDIO-AUDIO LESS & 6SPEAKER
8614552010CONNECTOR, ANTENNA MALE
main86145-52010
9015350015
main90153-50015
9015950327
main90159-50327
9167380616
main91673-80616

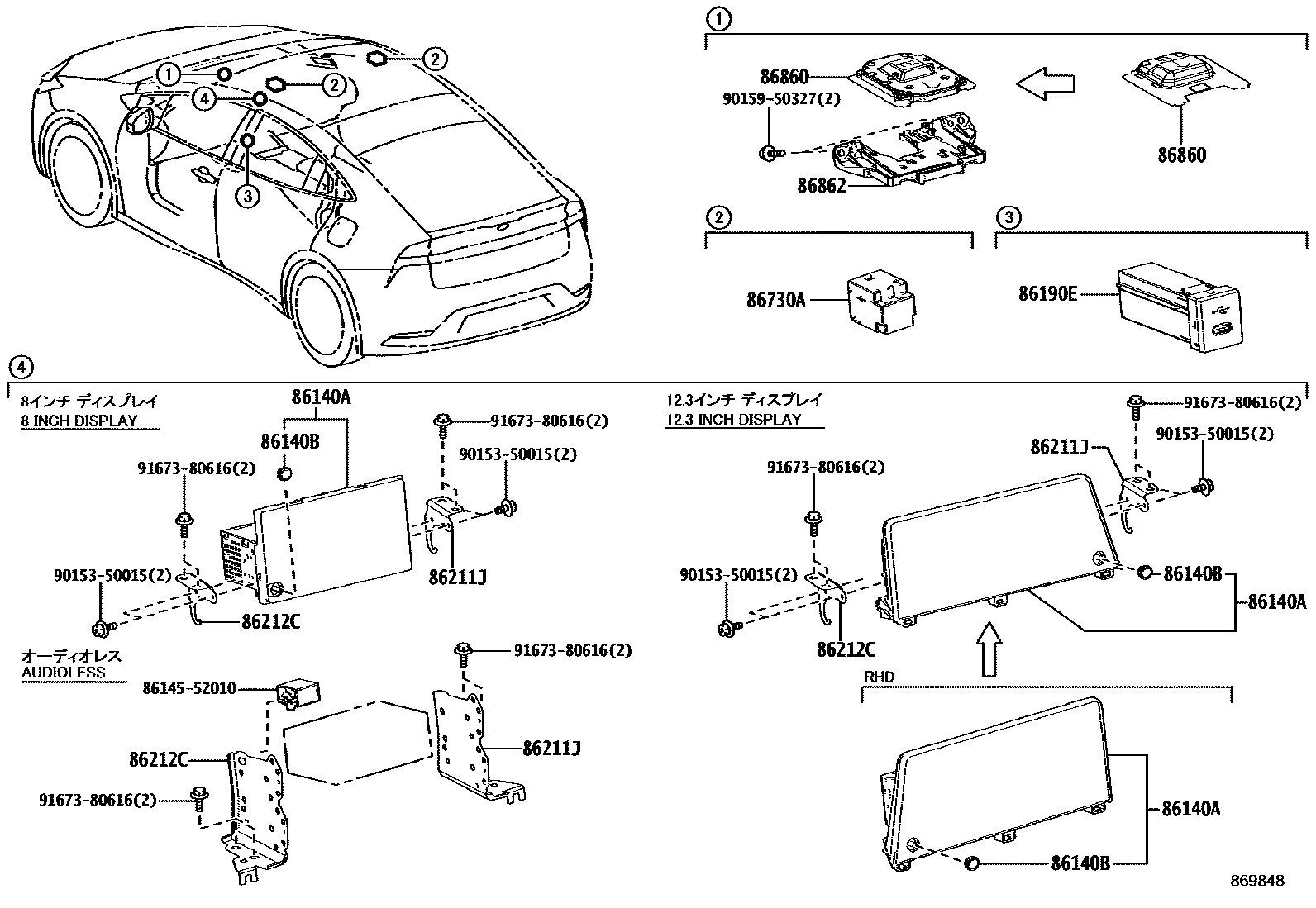

12 parts on this diagram · 1 diagram in section
