REAR WASHER

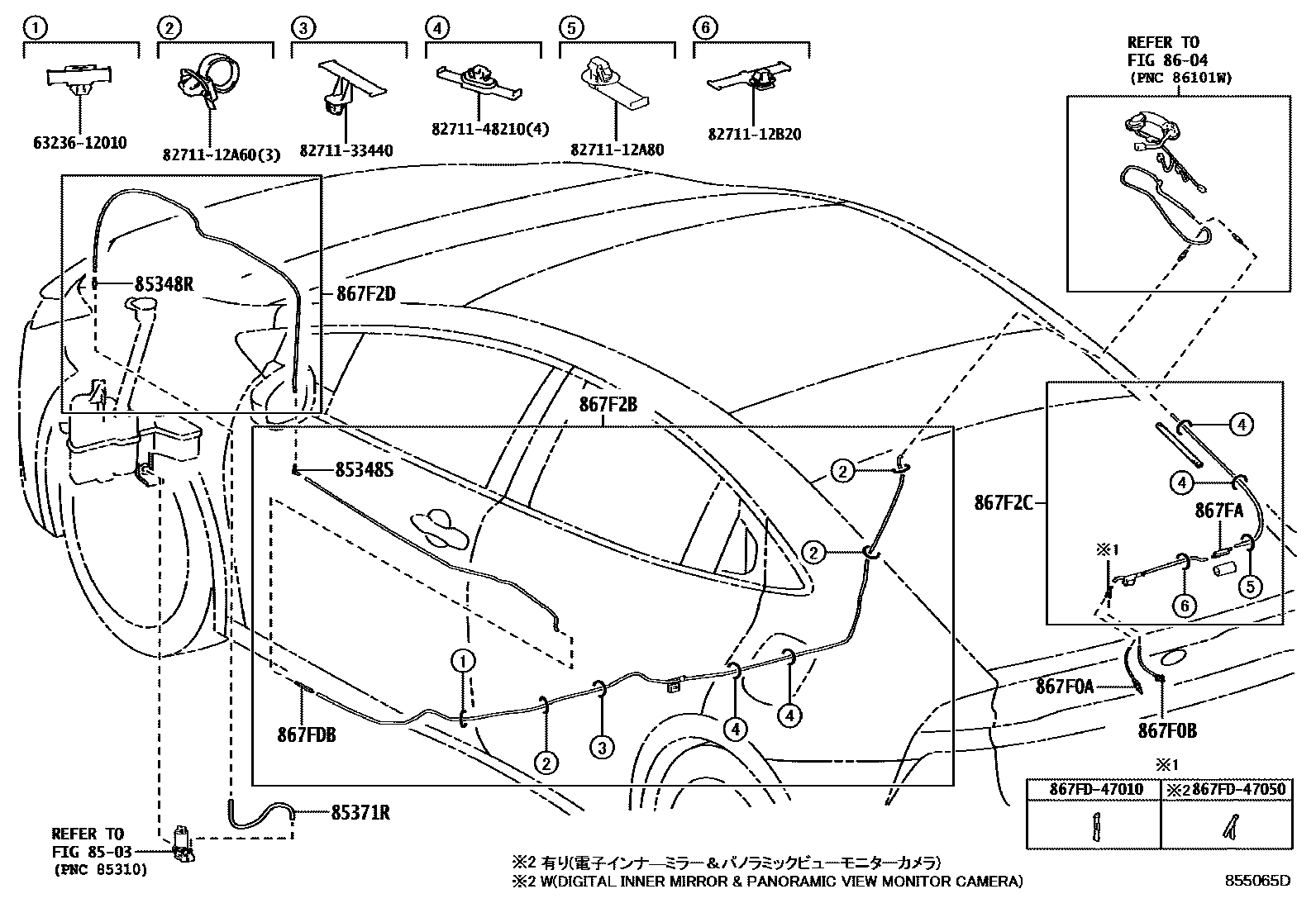

Parts diagram
8503
85348RJOINT, REAR WASHER HOSE, NO.1
main867FD-47010i202212
PARKING SUPPORT ALT/BRK-WITHOUT
85348SJOINT, REAR WASHER ELBOW, NO.1
main85376-16370i202212
PARKING SUPPORT ALT/BRK-WITHOUT
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90069-46265i202212
L=324
8604
867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1
main867F0-30020i202212
main867F0-30010i202303
TAIWAN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITH(*BSM
867F0BNOZZLE ASSY, CAMERA CLEANER, NO.2
main867F0-30010i202212
MEXICO PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-NA 12.3INCH PREMIUM 6SPEKER
867F2BHOSE, CAMERA CLEANER, NO.1
main867F2-47070i202303
L=3986,TAIWAN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WI
main867F2-47090i202303
L=3986
867F2CHOSE, CAMERA CLEANER, NO.2
main867F2-47060i202212
PARKING SUPPORT ALT/BRK-WITHOUT
main867F2-47050i202212
MEXICO PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-NA 12.3INCH PREMIUM 6SPEKER
867F2DHOSE, CAMERA CLEANER, NO.3
main867F2-47010i202212
PARKING SUPPORT ALT/BRK-WITHOUT
867FAFILTER, CLEANER HOSE
main867FA-47050i202212
PARKING SUPPORT ALT/BRK-WITHOUT
867FDBJOINT, LIDAR CLEANER HOSE, REAR NO.4
main867FD-47030i202212
PARKING SUPPORT ALT/BRK-WITHOUT
6323612010CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
main63236-12010
8271112A60WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12A60
8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12A80
8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B20
8271133440WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33440
8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48210
867FD47010JOINT, LIDAR CLEANER HOSE, FRONT NO.4
main867FD-47010
867FD47050JOINT, LIDAR CLEANER HOSE, FRONT NO.4
main867FD-47050

20 parts on this diagram · 3 diagrams in section
