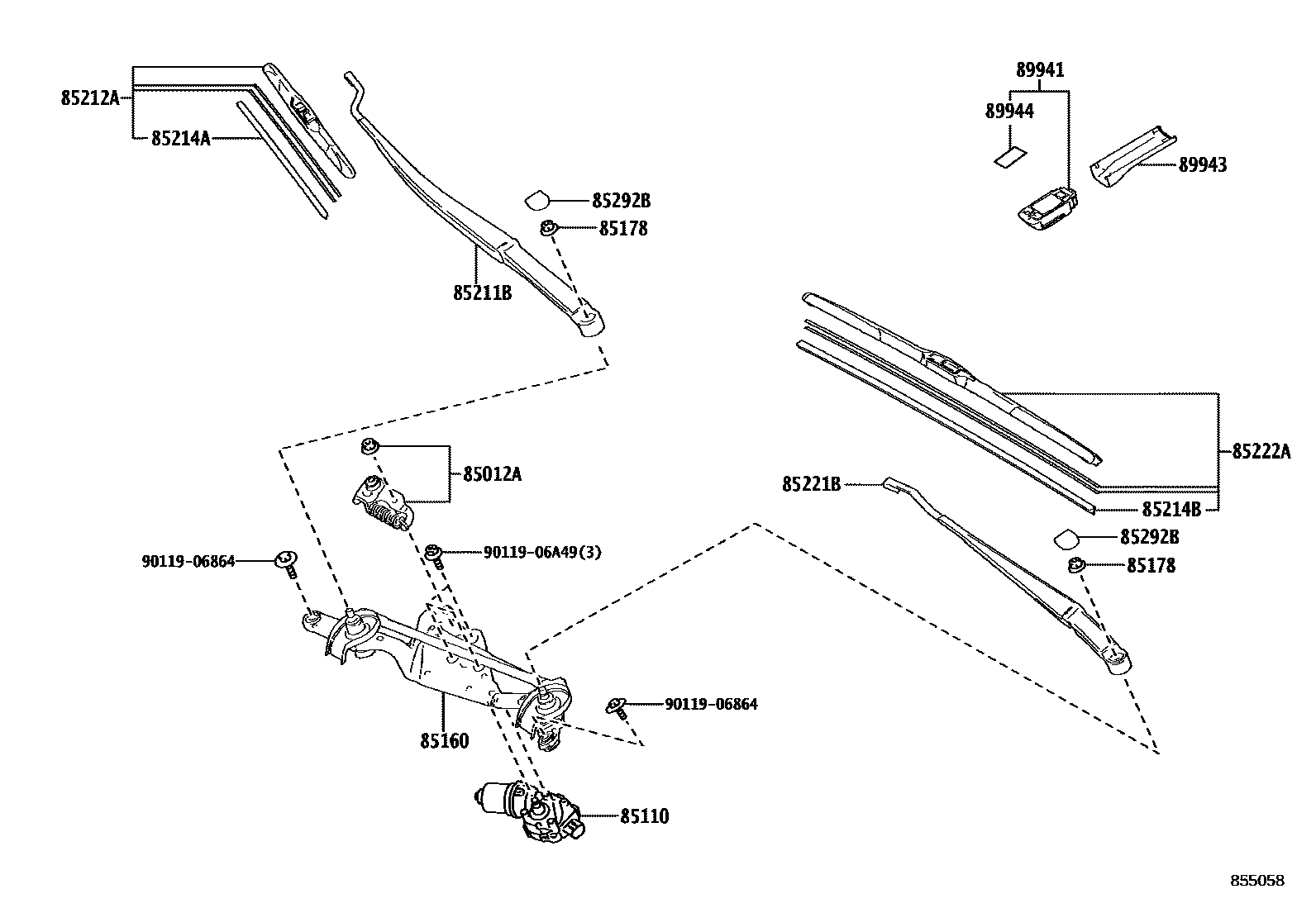

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iMXWH61,ZVW60..RHD202212

main85012-58030iMXWH61,ZVW60..LHD202212

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C80iMXWH61,ZVW60..LHD202212

main85110-12C90iMXWH61,ZVW60..RHD202212

85160LINK ASSY, WINDSHIELD WIPER

main85150-47250iMXWH61,ZVW60..LHD202212

main85150-47260iMXWH61,ZVW60..RHD202212

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iMXWH61,ZVW60202212

85211BARM, FRONT WIPER, RH

main85211-47260iMXWH61,ZVW60..LHD202212

main85211-47270iMXWH61,ZVW60..RHD202212

85212ABLADE, FR WIPER, RH

main85212-12430iMXWH61,ZVW60..LHD202212

main85212-52240iMXWH61,ZVW60..RHD202212

85214ARUBBER, WIPER, RH

main85214-28080iMXWH61,ZVW60..RHD202212

main85214-68030iMXWH61,ZVW60..LHD202212

85214BRUBBER, WIPER, LH

main85214-28080iMXWH61,ZVW60..LHD202212

main85214-68030iMXWH61,ZVW60..RHD202212

85221BARM, FRONT WIPER, LH

main85221-47220iMXWH61,ZVW60..LHD202212

main85221-47230iMXWH61,ZVW60..RHD202212

85222ABLADE, FR WIPER, LH

main85222-12860iMXWH61,ZVW60..RHD202212

main85222-52270iMXWH61,ZVW60..LHD202212

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iMXWH61,ZVW60202212

89941SENSOR, RAIN

main89941-78010iMXWH61202303

89943COVER, RAIN SENSOR

main89943-47040iMXWH61202303

89944TAPE, RAIN SENSOR

main89944-42020iMXWH61202303

9011906864

main90119-06864

9011906A49

main90119-06A49

16 parts on this diagram · 2 diagrams in section
