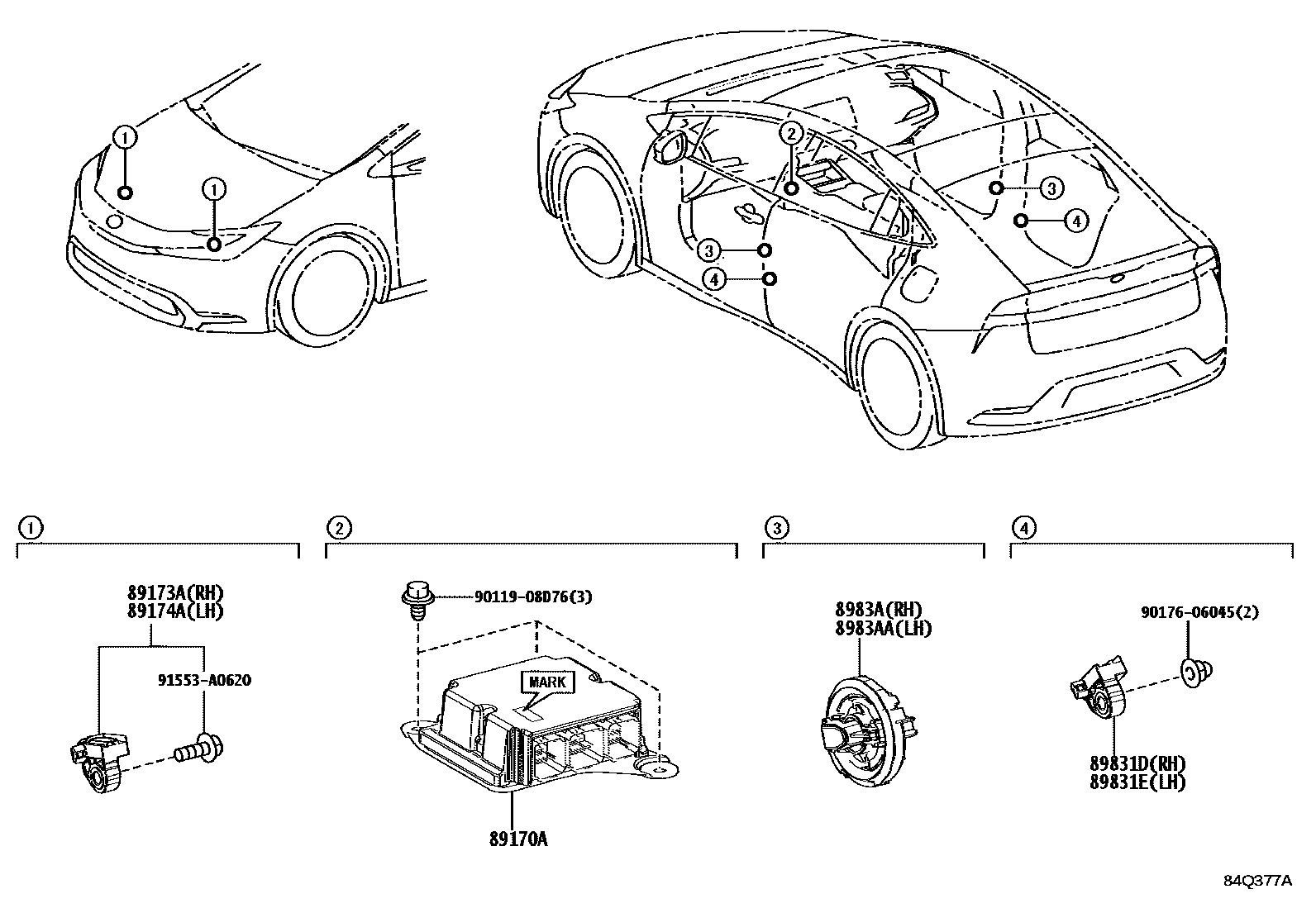

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-47B80iMXWH61,ZVW60202212-202507

*614,MARK89170-47B80

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iMXWH61,ZVW60202212

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iMXWH61,ZVW60202212

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-52100iMXWH61,ZVW60202212

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-52100iMXWH61,ZVW60202212

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52020iMXWH61,ZVW60202212

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52020iMXWH61,ZVW60202212

9011908D76

main90119-08D76

9017606045

main90176-06045

91553A0620

main91553-A0620

10 parts on this diagram · 1 diagram in section
