WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE 0010 1ENGINE 0011 1ENGINE 0012 1ENGINE 0013 1ENGINE 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1DOOR 0017 1FLOOR & ROOF 0018 1FLOOR & ROOF 0019 1HIGH VOLTAGE CABLE 0020 1HIGH VOLTAGE CABLE 0021 1HIGH VOLTAGE CABLE 0022 1HIGH VOLTAGE CABLE 0023 1SEAT 0024 1SEAT 0025 1CLAMP & BRACKET 0026 1CLAMP & BRACKET 0027 1CONNECTOR 1/2 0028 1CONNECTOR 2/2

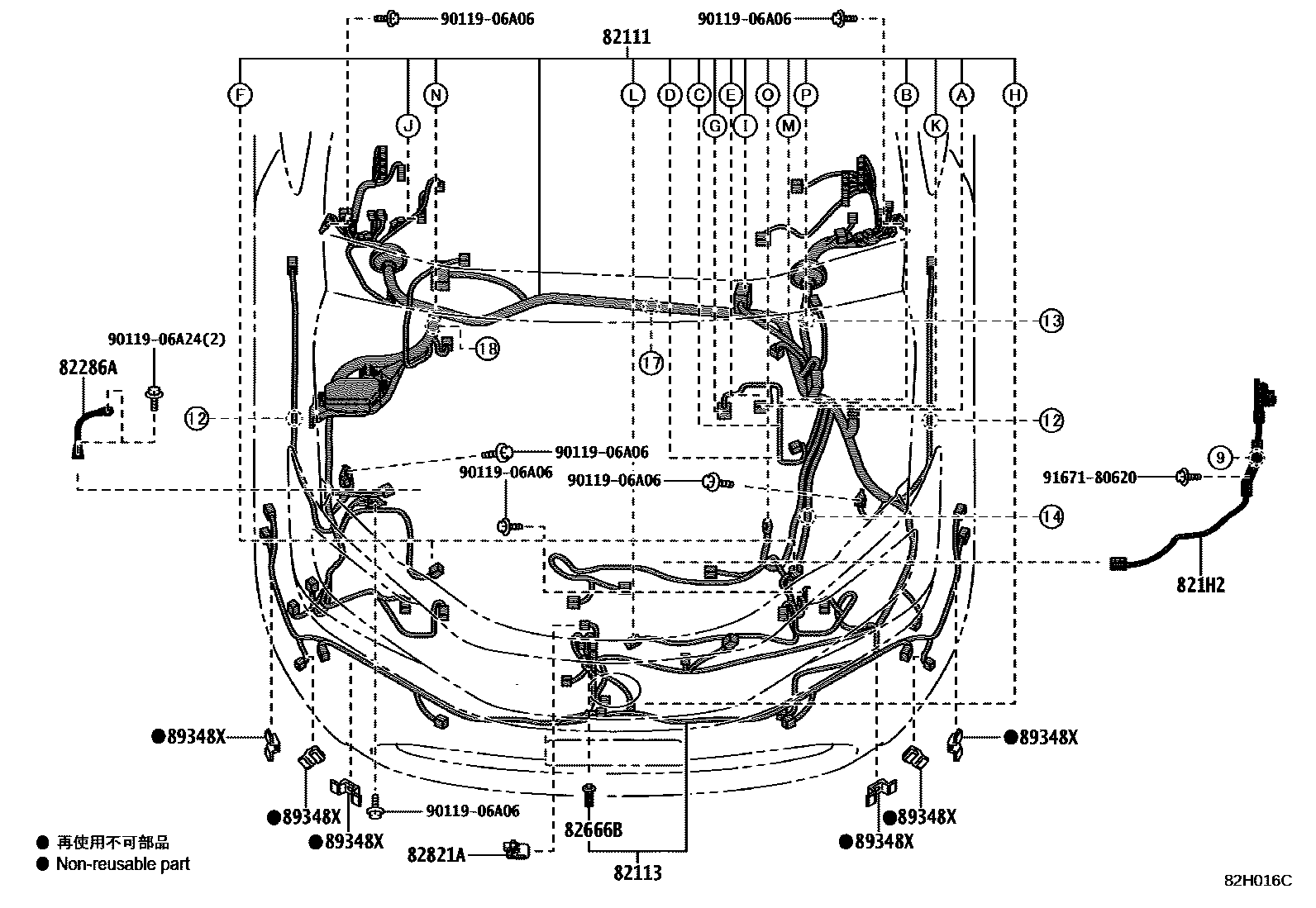

82111WIRE, ENGINE ROOM MAIN

main82111-47V60iZVW60..RHD¥141,000202212-202409

main82111-47V62iZVW60..RHD¥127,000202409-202507

main82111-4EB50iZVW60..LHD202212-202409

main82111-4EB52iZVW60..LHD202409-202507

main82111-4EX90iMXWH61..LHD..E202303-202408

main82111-4EX91iMXWH61..LHD..E202409-202507

main82111-4EY00iMXWH61..LHD..H202303-202408

main82111-4EY01iMXWH61..LHD..H202409-202507

main82111-4F100iMXWH61..RHD..E202303-202408

main82111-4F101iMXWH61..RHD..E202409-202507

main82111-4F110iMXWH61..RHD..H202303-202409

main82111-4F111iMXWH61..RHD..H202409-202507

82113WIRE, ENGINE ROOM, NO.3

main82113-47570iMXWH61;ZVW60..LHD¥2,680202212

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)

821H2WIRE, HV AIR CONDITIONER

main821H2-16030iMXWH61¥7,700202303

main821H2-V1010iZVW60¥7,700202212

82286AWIRE, EARTH, NO.2

main82286-12010iMXWH61¥1,430202303

main82286-47010iZVW60¥1,430202212

82666BHOLDER, CONNECTOR NO.3

main82666-42720iMXWH61;ZVW60..LHD¥160202212

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)

82821ACOVER, CONNECTOR

main82821-47410iZVW60..RHD¥360202212

PARKING SUPPORT ALT/BRK-WITHOUT

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iMXWH61;ZVW60..LHD¥260202212

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)

9011906A06

main90119-06A06¥60

9011906A24

main90119-06A24¥60

9167180620

main91671-80620¥60

10 parts on this diagram · 28 diagrams in section
