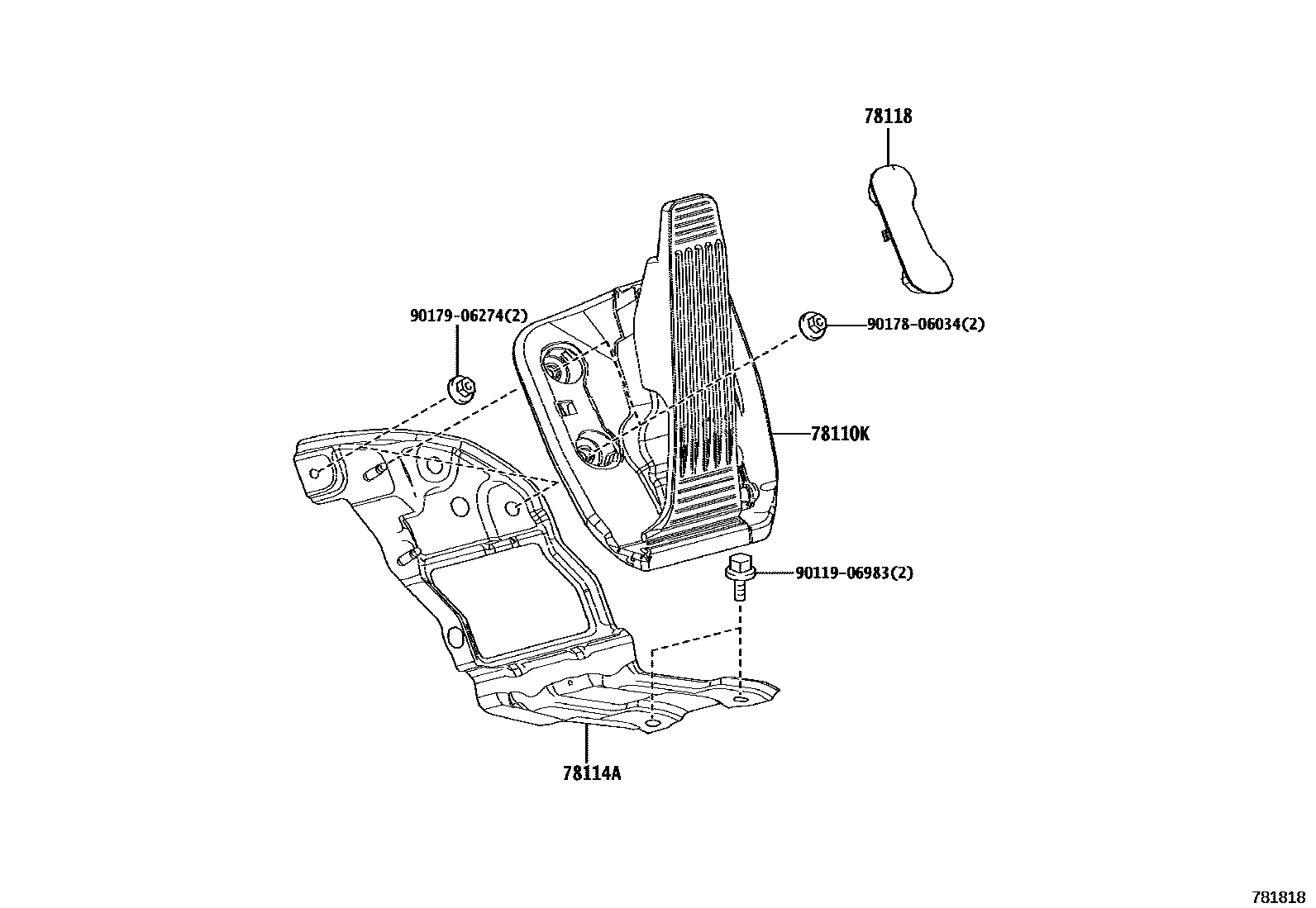

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-47080iZVW60..LHD202212

main78110-47090iZVW60..RHD202212

main78110-47110iMXWH61..RHD202303

main78110-48130iMXWH61..LHD202303

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-47010iMXWH61,ZVW60..LHD202212

main78114-47030iMXWH61,ZVW60..RHD202212

78118PAD, ACCELERATOR PEDAL

main78117-42010iMXWH61,ZVW60..LHD202212

main78117-47010iMXWH61,ZVW60..RHD202212

9011906983

main90119-06983

9017806034

main90178-06034

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
