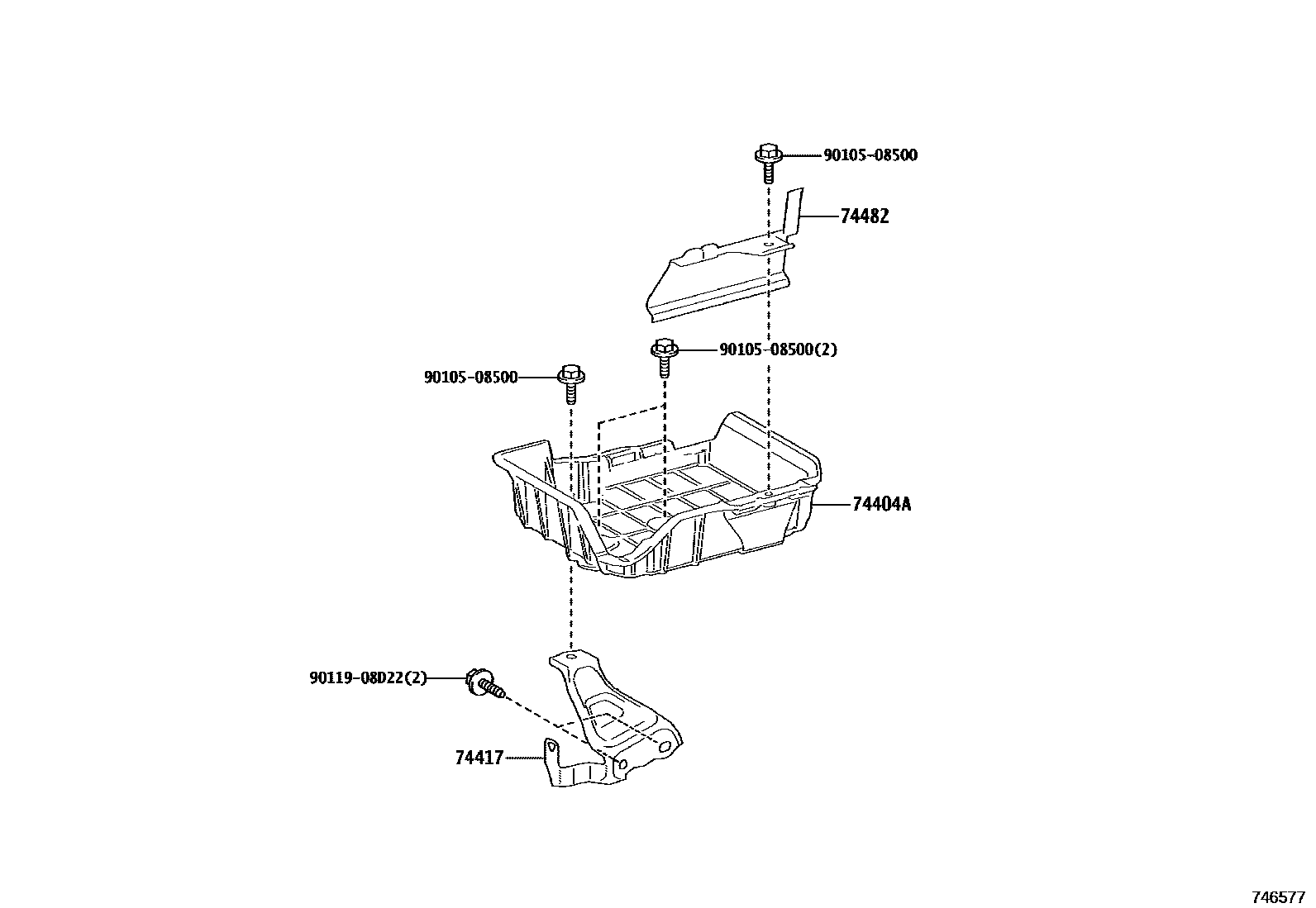

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-12610iZVW60202212

74417BRACKET, BATTERY CARRIER

main74417-12060iZVW60202212

74482CLAMP, BATTERY, NO.2

main74482-47010iZVW60202212

9010508500

main90105-08500

9011908D22

main90119-08D22

5 parts on this diagram · 2 diagrams in section
