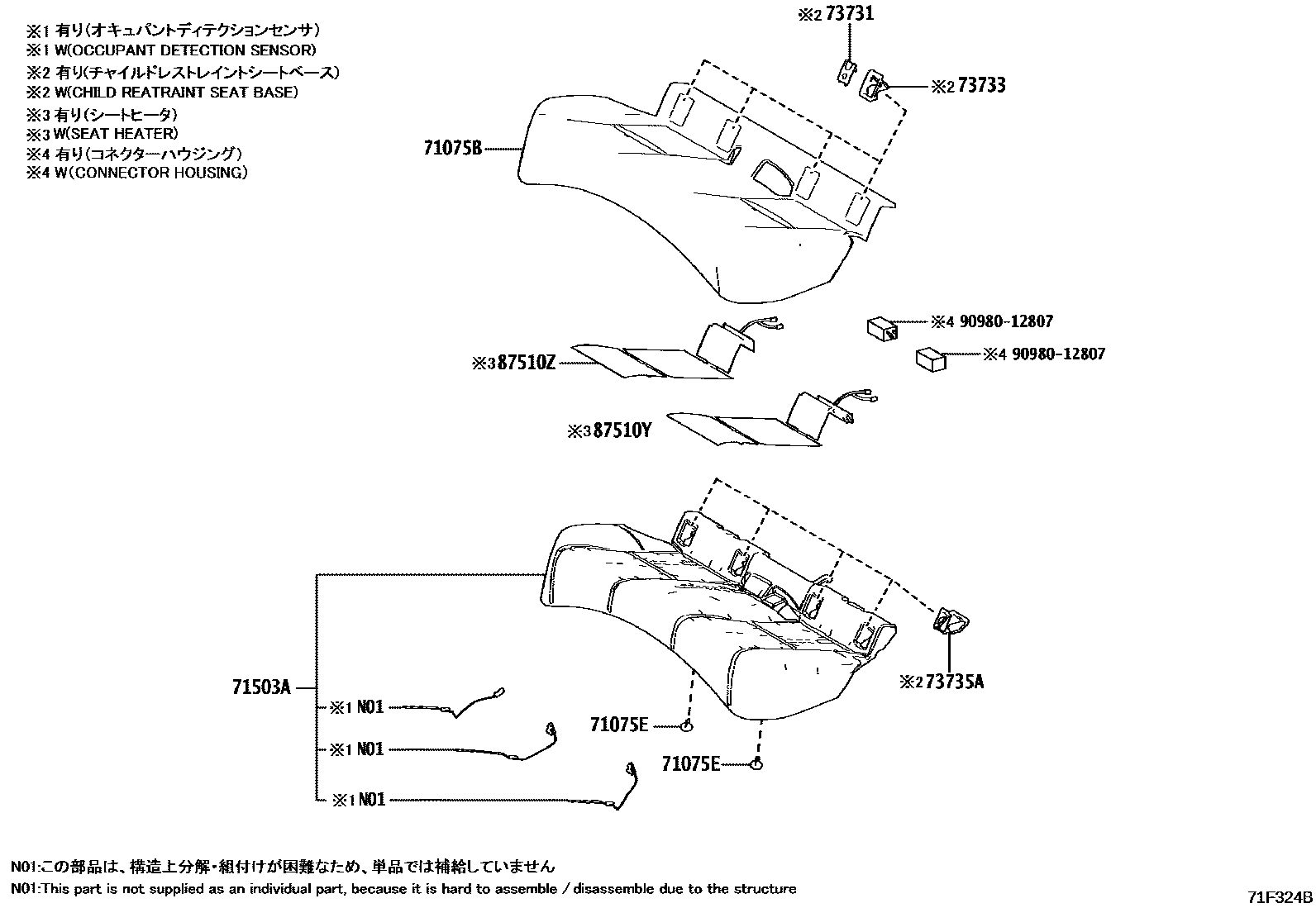

REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0002 1SEAT BACK 0003 1SEAT FITTING PARTS 0004 1SEAT FITTING PARTS

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47A60-B2iZVW60202212

MEDIUM GRAY,TRIM1#

main71075-47A60-C4iZVW60202212

BLACK,TRIM2#

main71075-47B90-C6iMXWH61202303

BLACK/RED,TRIM22

main71075-47B90-C7iMXWH61202303

BLACK/LT.GRAY,TRIM20

71075ECLIP(FOR REAR SEAT)

main90467-07049-23iMXWH61,ZVW60202212

BLACK

sub90467-07049¥90

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-47280iZVW60¥16,300202212

main71503-47310iMXWH61202303

73731COVER, CHILD RESTRAINT SEAT

main73731-12020-C0iMXWH61202303

BLACK,TRIM2#

73733COVER, CHILD RESTRAINT SEAT BASE

main73733-76010-C0iMXWH61202303

BLACK,TRIM2#

73735ACUP, CHILD RESTRAINT SEAT GUIDE

main73735-76010-C0iMXWH61202303

BLACK,TRIM2#

87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH

87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH

9098012807

main90980-12807¥220

9 parts on this diagram · 4 diagrams in section
