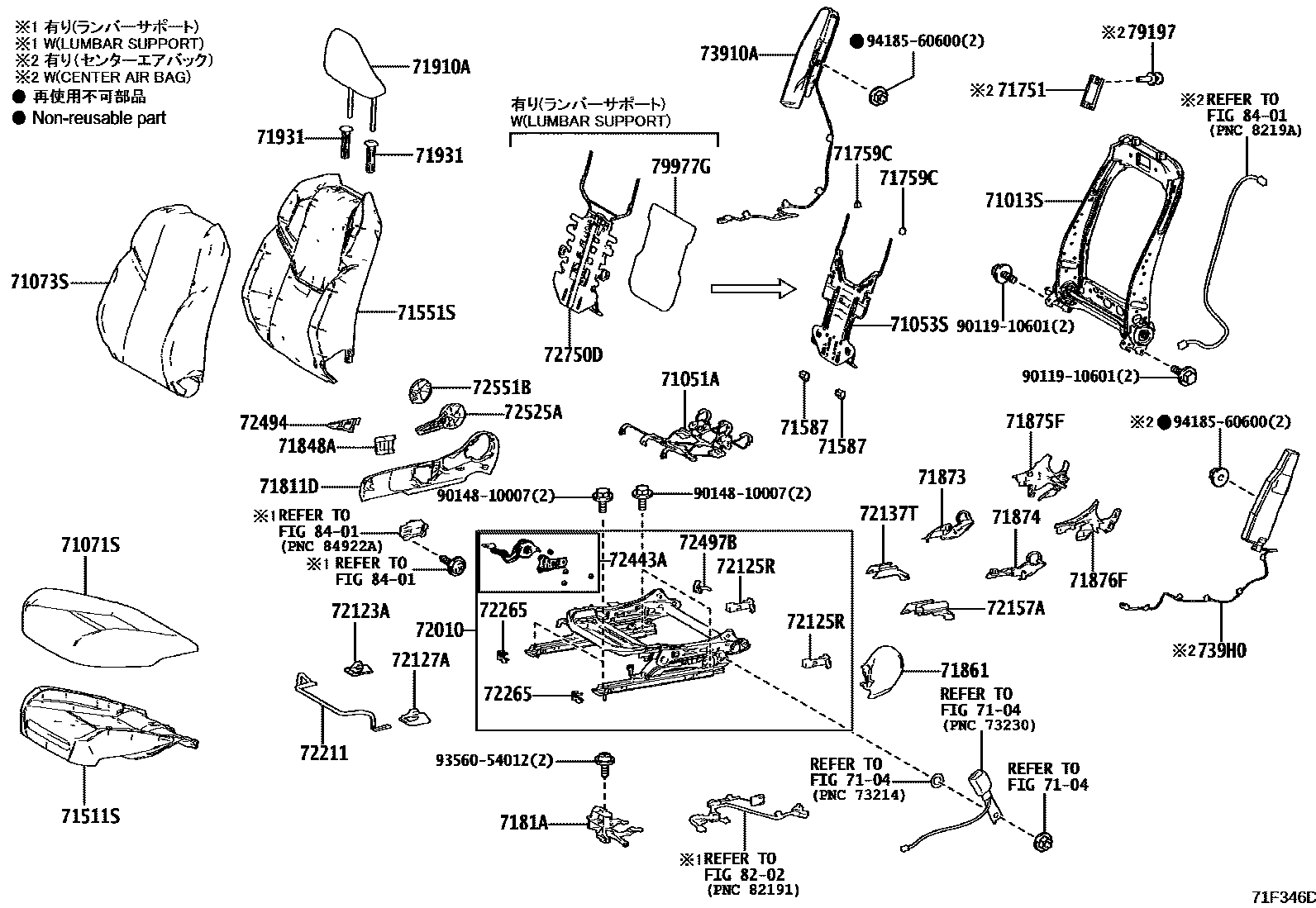

FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK/RED,TRIM22
BLACK/LT.GRAY,TRIM20
RED NO.55,TRIM22
LT.GRAY NO.831,TRIM20
BLACK/RED,TRIM22
BLACK/LT.GRAY,TRIM20
RED NO.55,TRIM22
LT.GRAY NO.831,TRIM20
BLACK/RED,TRIM22
BLACK/LT.GRAY,TRIM20
RED NO.55,TRIM22
LT.GRAY NO.831,TRIM20
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
BLACK/RED,TRIM22
BLACK/LT.GRAY,TRIM20
GRAY,TRIM1#
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM20
BLACK/RED,TRIM22
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71751HANGER, SEAT COVER
71759CHOOK, FRONT SEATBACK, NO.1
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71848ACAP, SEAT ADJUSTER COVER, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
BLACK,TRIM2#
BLACK,TRIM1#,2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK/RED,TRIM22
BLACK/LT.GRAY,TRIM20
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM1#,2#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM1#,2#
72010ADJUSTER ASSY, FRONT SEAT, RH
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
72211HANDLE, SEAT TRACK ADJUSTING
72265COVER, SEAT TRACK UPPER RAIL, RH
72443AGEAR, VERTICAL ADJUSTER, RH
72494HANDLE, VERTICAL ADJUSTING, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
72551BCOVER, RECLINING HINGE, RH
FRONT SEAT-*DRS(POWER SEAT),SPORTY,BLACK,TRIM2#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
73910AAIRBAG ASSY, FRONT SEAT, RH
739H0AIRBAG ASSY, FRONT SEAT CENTER, RH
79197HOOK, SEATBACK COVER
79977GFELT, FRONT SEATBACK, RH
SEAT COVER MATERIAL-SYNTHETIC LEATHER
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
8202
8401
9011910601
9014810007
9356054012
9418560600
45 parts on this diagram · 6 diagrams in section
