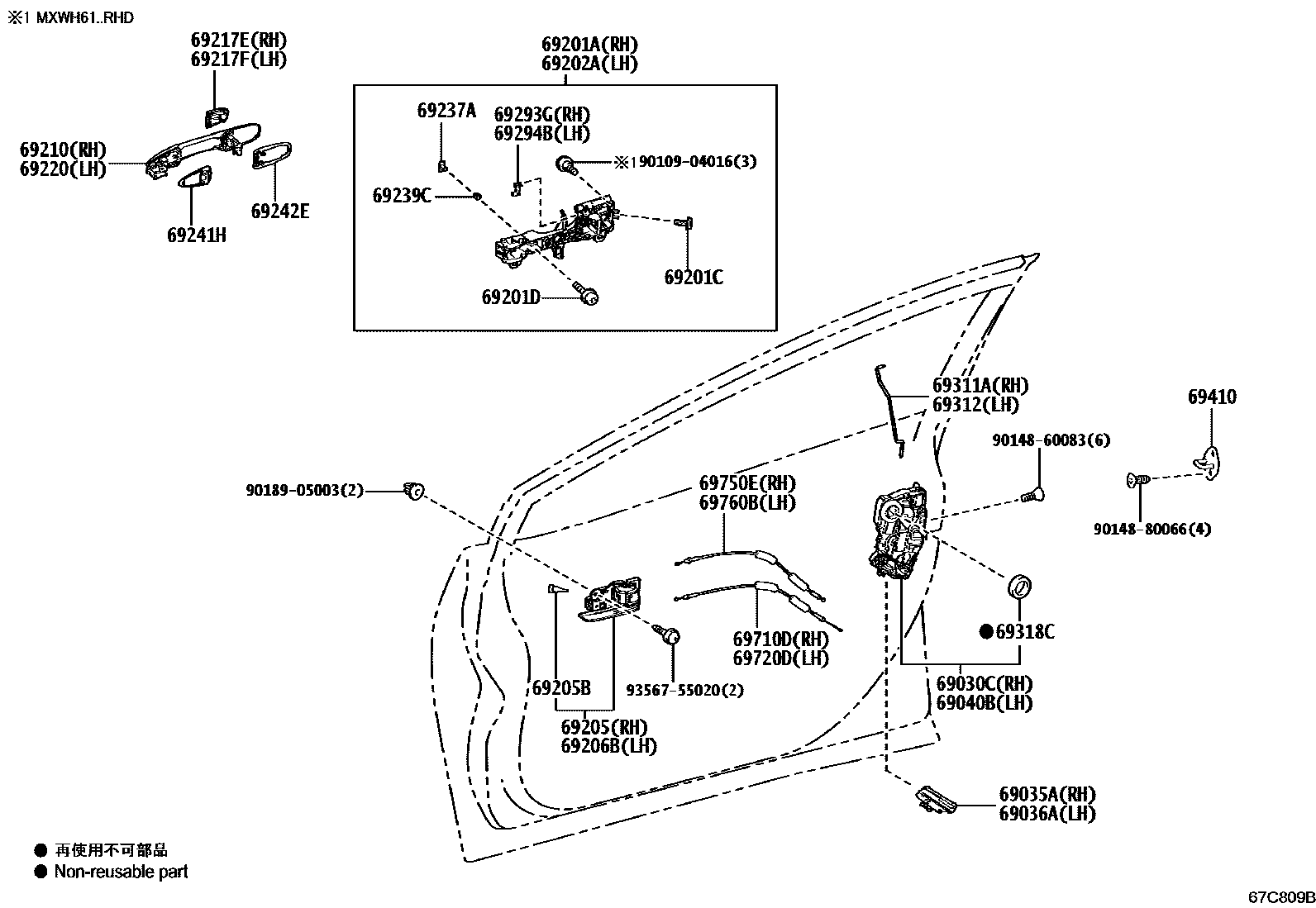

FRONT DOOR LOCK & HANDLE

69030CLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, RH

main69030-28190iZVW60..RHD202212

main69030-42280iMXWH61..LHD202303

main69030-42290iZVW60..LHD202212

main69030-42300iMXWH61..RHD202303

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iZVW60;MXWH61..LHD202212

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iZVW60;MXWH61..LHD202212

69040BLOCK ASSY, FRONT DOOR W/MOTOR & COURTESY LAMP SWITCH, LH

main69040-28220iZVW60..RHD202212

main69040-42310iMXWH61,ZVW60..LHD202212

main69040-42320iMXWH61..RHD202303

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iZVW60;MXWH61..LHD202212

main69201-47090iMXWH61..RHD202303

69201CSCREW, DOOR OUTSIDE HANDLE, NO.1

main90148-50003iZVW60;MXWH61..LHD202212

main90148-50003iMXWH61..RHD202303

LH

main90148-50008iMXWH61..RHD202303

RH

69201DSCREW, DOOR OUTSIDE HANDLE, NO.2

main90148-50006iMXWH61,ZVW60202212

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iMXWH61,ZVW60202212

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-15010-C1iZVW60202212

BLACK,TRIM1#,2#

main69205-33140-C0iMXWH61..H202303

BLACK,TRIM1#,2#

main69205-33140-C0iMXWH61..H202303

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iMXWH61,ZVW60202212

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-15010-C1iZVW60202212

BLACK,TRIM1#,2#

main69206-33150-C0iMXWH61..H202303

BLACK,TRIM2#

main69206-33150-C0iMXWH61..H202303

BLACK,TRIM1#,2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A3iMXWH61,ZVW60..RHD202212

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B3iMXWH61,ZVW60..RHD202212

SILVER ME.,1L0

main69210-K0010-C3iMXWH61,ZVW60..RHD202212

ATTITUDE BLACK MC.,218

main69210-K0010-D5iMXWH61..RHD202303

EMOTIONAL RED 2,2SC ,3U5

main69210-K0010-D5iZVW60..RHD202212

EMOTIONAL RED 2,3U5

main69210-K0010-F1iZVW60..RHD202212

MUSTARD,5C5

main69210-K0010-F1iMXWH61..RHD202303

MUSTARD,2XV ,5C5

main69210-K0010-J6iMXWH61,ZVW60..RHD202212

DK.BLUE,8Q4

main69210-K0010-P4iZVW60..RHD202212

ASH,1M2

main69210-K0010-P4iMXWH61..RHD202303

ASH,1M2 ,2XU

main69210-K0020-A3iMXWH61,ZVW60..LHD202212

PLATINUM WHITE PEARL MC.,089

main69210-K0020-B3iMXWH61,ZVW60..LHD202212

SILVER ME.,1L0

main69210-K0020-C3iMXWH61,ZVW60..LHD202212

ATTITUDE BLACK MC.,218

main69210-K0020-D5iMXWH61..LHD202303

EMOTIONAL RED 2,2SC ,3U5

main69210-K0020-D5iZVW60..LHD202212

EMOTIONAL RED 2,3U5

main69210-K0020-F1iMXWH61..LHD202303

MUSTARD,2XV ,5C5

main69210-K0020-F1iZVW60..LHD202212

MUSTARD,5C5

main69210-K0020-J6iMXWH61,ZVW60..LHD202212

DK.BLUE,8Q4

main69210-K0020-P4iZVW60..LHD202212

ASH,1M2

main69210-K0020-P4iMXWH61..LHD202303

ASH,1M2 ,2XU

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-47020iMXWH61,ZVW60..LHD202212

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-47020iMXWH61,ZVW60..RHD202212

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0010-A3iMXWH61,ZVW60..LHD202212

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B3iMXWH61,ZVW60..LHD202212

SILVER ME.,1L0

main69210-K0010-C3iMXWH61,ZVW60..LHD202212

ATTITUDE BLACK MC.,218

main69210-K0010-D5iZVW60..LHD202212

EMOTIONAL RED 2,3U5

main69210-K0010-D5iMXWH61..LHD202303

EMOTIONAL RED 2,2SC ,3U5

main69210-K0010-F1iMXWH61..LHD202303

MUSTARD,2XV ,5C5

main69210-K0010-F1iZVW60..LHD202212

MUSTARD,5C5

main69210-K0010-J6iMXWH61,ZVW60..LHD202212

DK.BLUE,8Q4

main69210-K0010-P4iZVW60..LHD202212

ASH,1M2

main69210-K0010-P4iMXWH61..LHD202303

ASH,1M2 ,2XU

main69210-K0020-A3iMXWH61,ZVW60..RHD202212

PLATINUM WHITE PEARL MC.,089

main69210-K0020-B3iMXWH61,ZVW60..RHD202212

SILVER ME.,1L0

main69210-K0020-C3iMXWH61,ZVW60..RHD202212

ATTITUDE BLACK MC.,218

main69210-K0020-D5iMXWH61..RHD202303

EMOTIONAL RED 2,2SC ,3U5

main69210-K0020-D5iZVW60..RHD202212

EMOTIONAL RED 2,3U5

main69210-K0020-F1iZVW60..RHD202212

MUSTARD,5C5

main69210-K0020-F1iMXWH61..RHD202303

MUSTARD,2XV ,5C5

main69210-K0020-J6iMXWH61,ZVW60..RHD202212

DK.BLUE,8Q4

main69210-K0020-P4iZVW60..RHD202212

ASH,1M2

main69210-K0020-P4iMXWH61..RHD202303

ASH,1M2 ,2XU

69237ANUT, FRONT DOOR HANDLE

main69237-62010iMXWH61,ZVW60202212

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iMXWH61,ZVW60202212

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iMXWH61,ZVW60202212

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iMXWH61,ZVW60202212

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMXWH61,ZVW60202212

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iMXWH61,ZVW60202212

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-47070iMXWH61,ZVW60202212

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-47070iMXWH61,ZVW60202212

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iMXWH61..RHD202303

main69318-51010iZVW60;MXWH61..LHD202212

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iMXWH61,ZVW60202212

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-47070iZVW60;MXWH61..LHD202212

main69710-47080iMXWH61..RHD202303

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-47070iZVW60;MXWH61..LHD202212

main69710-47080iMXWH61..RHD202303

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-47080iZVW60;MXWH61..LHD202212

main69750-47090iMXWH61..RHD202303

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-47080iZVW60;MXWH61..LHD202212

main69750-47090iMXWH61..RHD202303

9010904016

main90109-04016

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

34 parts on this diagram · 1 diagram in section
