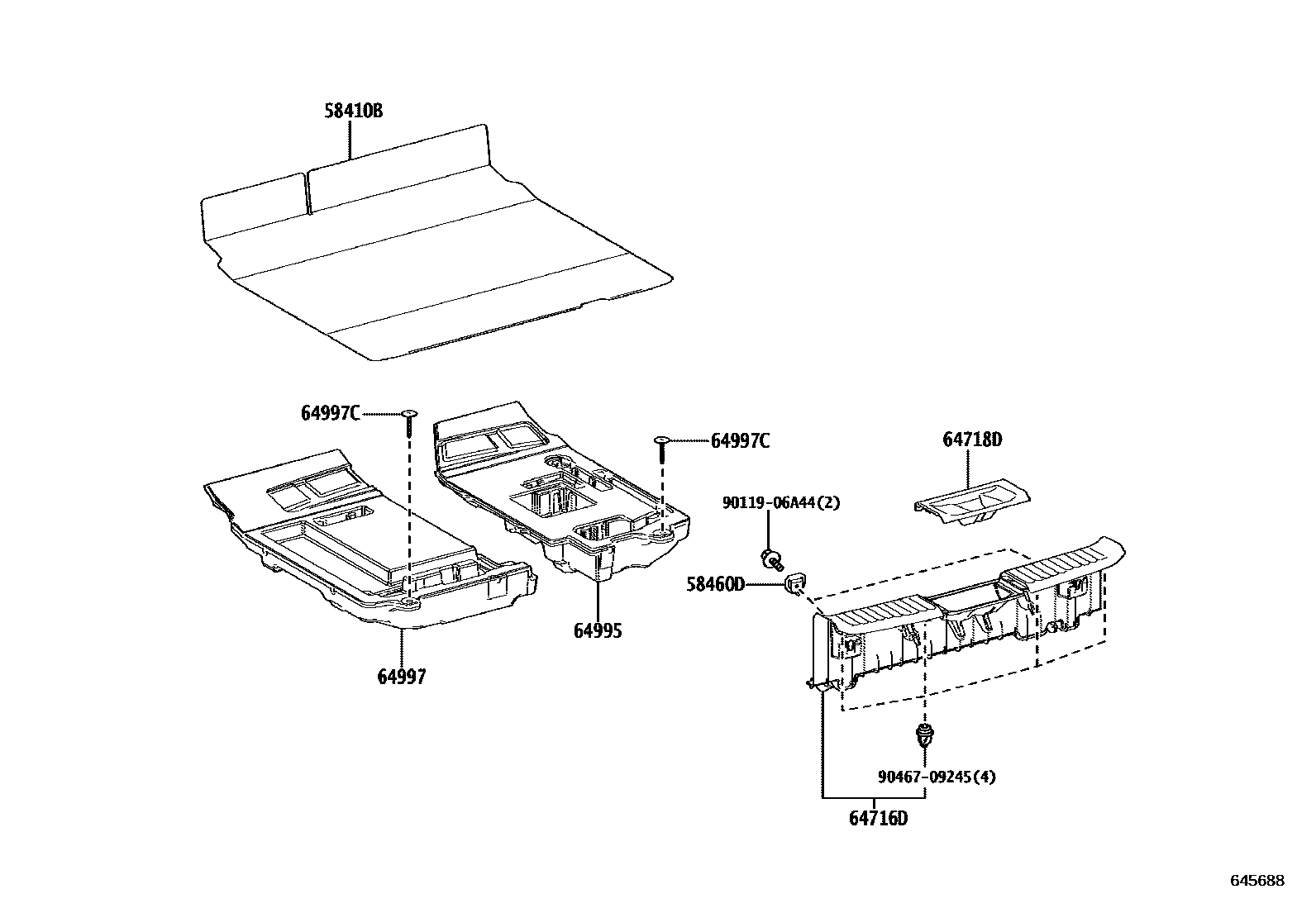

DECK BOARD & DECK TRIM COVER

0001 1DECK BOARD 0002 1DECK BOARD:W(TEMPORARY SPARE 0003 1DECK BOARD 0004 1DECK TRIM COVER 0005 1DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-47030-C1iZVW60..RHD202212

BLACK,TRIM1#,2#

main58410-47040-C1iZVW60..LHD202212

BLACK,TRIM1#,2#

main58410-47040-C1iZVW60..LHD202212

SPARE TIRE-TEMPORARY TIRE(REINFORCEMENT),BLACK,TRIM1#,2#

main58410-47060-C1iMXWH61..H202303

BLACK,TRIM1#,2#

main58410-47060-C1iMXWH61..H202303

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMXWH61,ZVW60202212

64716DCOVER, DECK TRIM, REAR

main64716-47160-C0iZVW60..RHD202212

BLACK,TRIM1#,2#

main64716-47170-C0iMXWH61..H;ZVW60..LHD202212

BLACK,TRIM1#,2#

main64716-47170-C0iMXWH61..H;ZVW60..LHD202212

SPARE TIRE-TEMPORARY TIRE(REINFORCEMENT),BLACK,TRIM1#,2#

main64716-47170-C0iMXWH61..E202303

BLACK,TRIM2#

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-47110-C0iZVW60;MXWH61..H202212

BLACK,TRIM1#,2#

main64718-47110-C0iMXWH61..E202303

BLACK,TRIM2#

64995BOX, DECK FLOOR, RH

main64995-47080iZVW60..LHD202212

SPARE TIRE-TEMPORARY TIRE(REINFORCEMENT)

main64995-47100iZVW60..RHD202212

main64995-47120iMXWH61202303

64997BOX, DECK FLOOR, LH

main64997-47100iZVW60..LHD202212

SPARE TIRE-TEMPORARY TIRE(REINFORCEMENT)

main64997-47120iZVW60..RHD202212

main64997-47140iMXWH61202303

64997CCLIP(FOR DECK FLOOR BOX)

main64726-10020-C2iZVW60;MXWH61..H202212

BLACK,TRIM1#,2#

main64726-10020-C2iMXWH61..E202303

BLACK,TRIM2#

9011906A44

main90119-06A44

9046709245

main90467-09245

9 parts on this diagram · 5 diagrams in section
