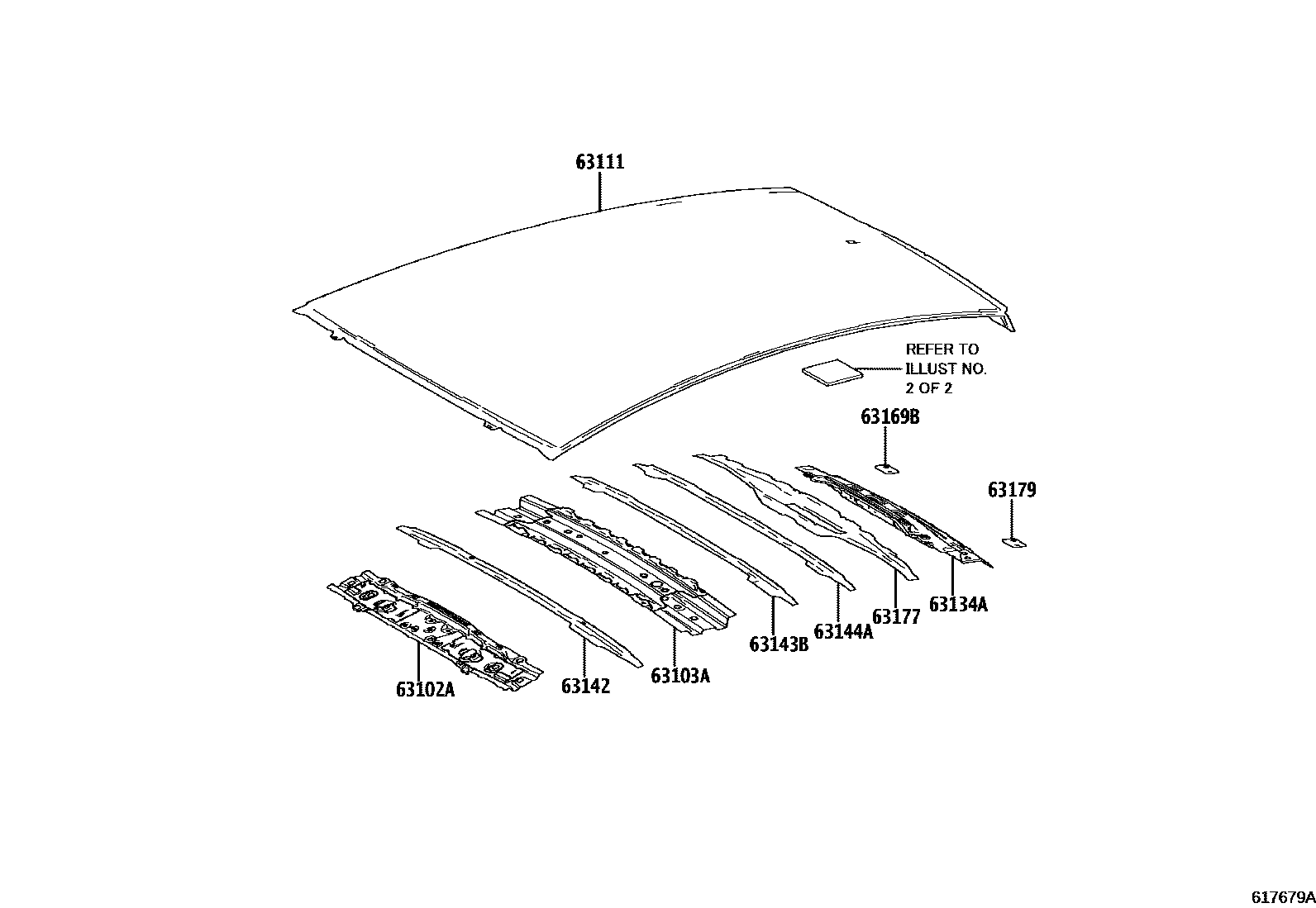

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA) 0003 1ROOF PANEL(SOLAR ROOF) 0004 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47110iZVW60..LHD202212

MEXICO PACKAGE

main63102-47110iMXWH61..LHD..H202303-202501

MOON ROOF-GLASS ROOF, WITH(SOLAR CELL)

main63102-47110iMXWH61..H202303

MOON ROOF-WITH(PANORAMA ROOF)

main63102-47906iMXWH61,ZVW60202212

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47060iMXWH61,ZVW60202212

main63103-47070iMXWH61..RHD..H202303-202501

MOON ROOF-GLASS ROOF, WITH(SOLAR CELL)

63111PANEL, ROOF

main63111-47080iMXWH61,ZVW60202212

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-47050iMXWH61,ZVW60202212

main63134-47060iZVW60..LHD202212

MEXICO PACKAGE

main63134-47060iMXWH61..H202303

MOON ROOF-WITH(PANORAMA ROOF)

main63134-47060iMXWH61..H202303-202501

MOON ROOF-GLASS ROOF, WITH(SOLAR CELL)

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-47080iMXWH61,ZVW60202212

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-47070iMXWH61..RHD..H202303-202501

MOON ROOF-GLASS ROOF, WITH(SOLAR CELL)

main63143-47080iMXWH61,ZVW60202212

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-47080iMXWH61,ZVW60202212

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iMXWH61,ZVW60202212

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-47020iMXWH61,ZVW60202212

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iMXWH61,ZVW60202212

10 parts on this diagram · 4 diagrams in section
