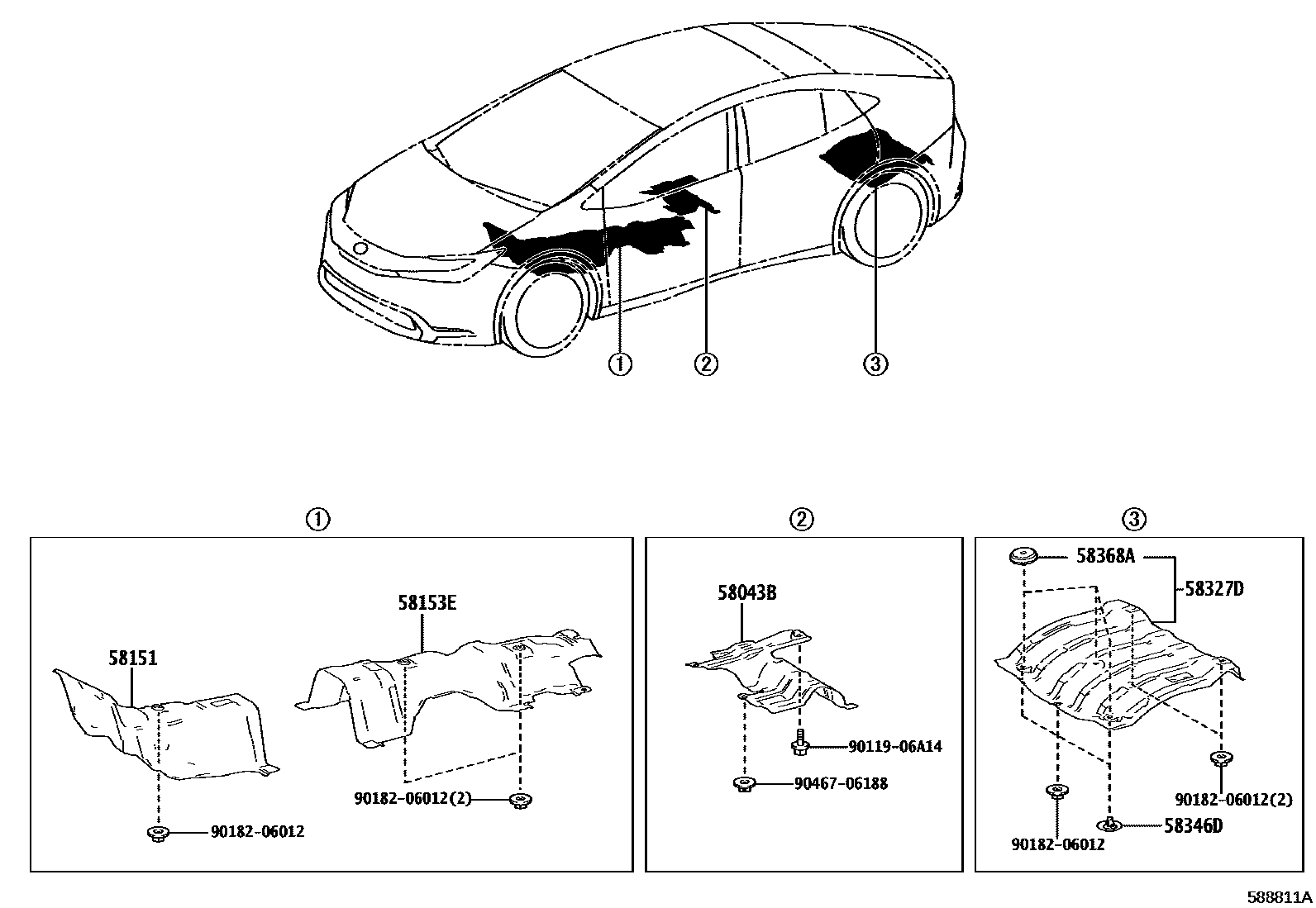

FLOOR INSULATOR

0001 1 0002 1

58043BINSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.1

main58043-47010iMXWH61202303

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-47080iMXWH61,ZVW60202212

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-47060iZVW60202212

main58153-47070iMXWH61202303

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-47090iZVW60202212

main58327-47100iMXWH61202303

58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main77512-35140iMXWH61202303

58368ACUSHION(FOR INSULATOR HEAT)

main77286-12110iMXWH61202303

9011906A14

main90119-06A14

9018206012

main90182-06012

9046706188

main90467-06188

9 parts on this diagram · 2 diagrams in section
