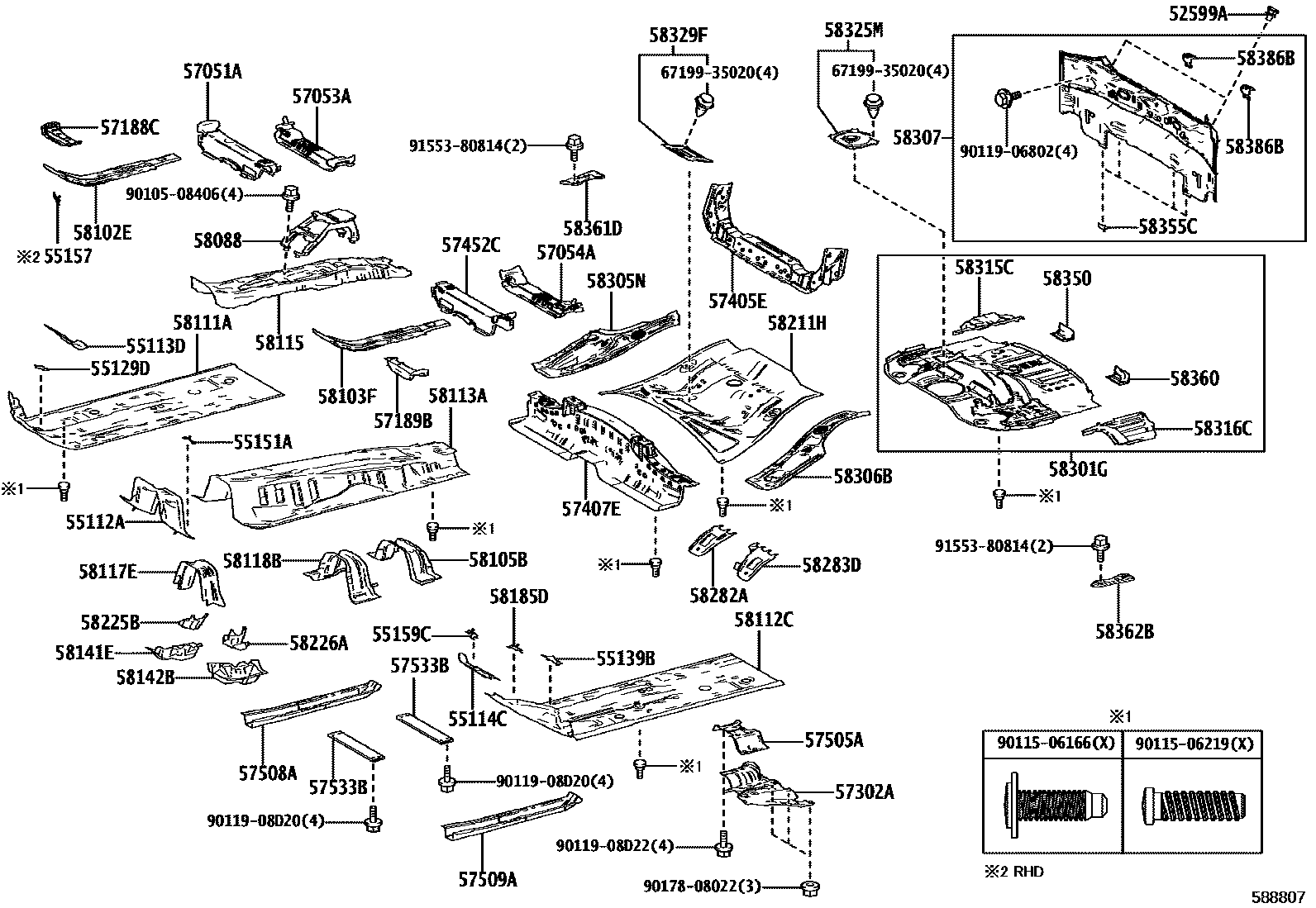

FLOOR PAN & LOWER BACK PANEL
52599ASTOPPER, REAR BUMPER, UPPER
55112APANEL, DASH, NO.2
55113DPANEL, DASH, LOWER RH
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
55151ABRACKET, PEDAL
55157BRACKET, PEDAL, RH
55159CSTAY, PEDAL BRACKET
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57053AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57302APANEL SUB-ASSY, BATTERY BOX
57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57452CMEMBER, FRONT FLOOR CROSS, LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
58088BRACKET SUB-ASSY, FLOOR SHIFT LINK
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58185DPLATE, ACCELERATOR PEDAL MOUNTING
58225BPLATE, FRONT FLOOR SIDE, LOWER RH
58226APLATE, FRONT FLOOR SIDE, LOWER LH
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58355CBRACKET, REAR BUMPER ARM
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
6719935020COVER, BACK DOOR HANDLE
9010508406
9011506166
9011506219
9011906802
9011908D20
9011908D22
9017808022
9155380814
63 parts on this diagram · 2 diagrams in section
