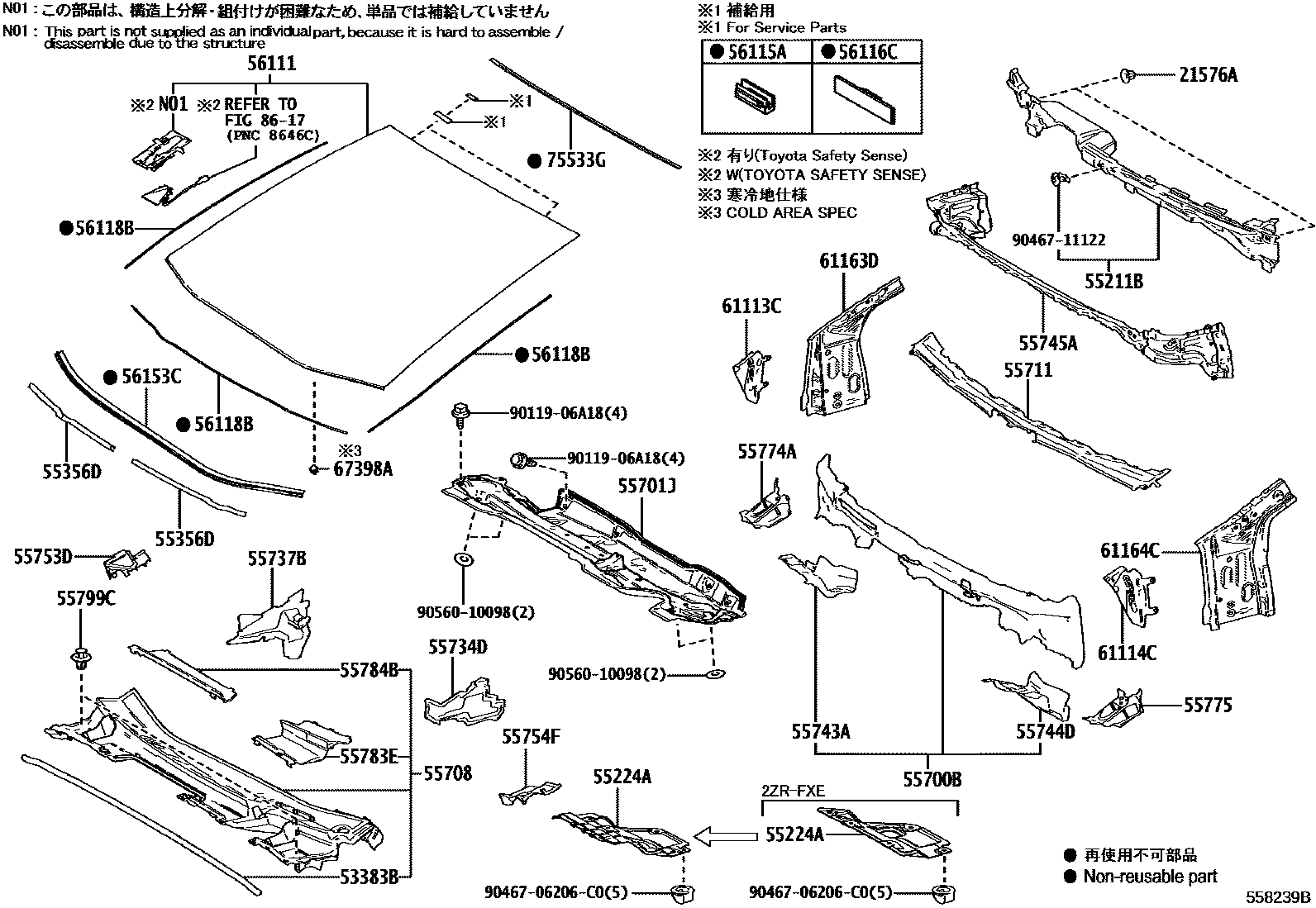

COWL PANEL & WINDSHIELD GLASS
21576ACLIP
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55711PANEL, COWL TOP, OUTER
55734DPLATE, WATER GUARD
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745AREINFORCEMENT, COWL TOP, INNER
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=3500,MEXICO PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=3500
L=3500,MEXICO PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
56153CMOULDING, FRONT WINDOW, INNER CENTER
61113CPANEL, SIDE, INNER RH
61114CPANEL, SIDE, INNER LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
67398AGUIDE(FOR WINDOW DEFOGGER WIRE)
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906A18
9046706206C0
main90467-06206C0
9046711122
9056010098
37 parts on this diagram · 2 diagrams in section
