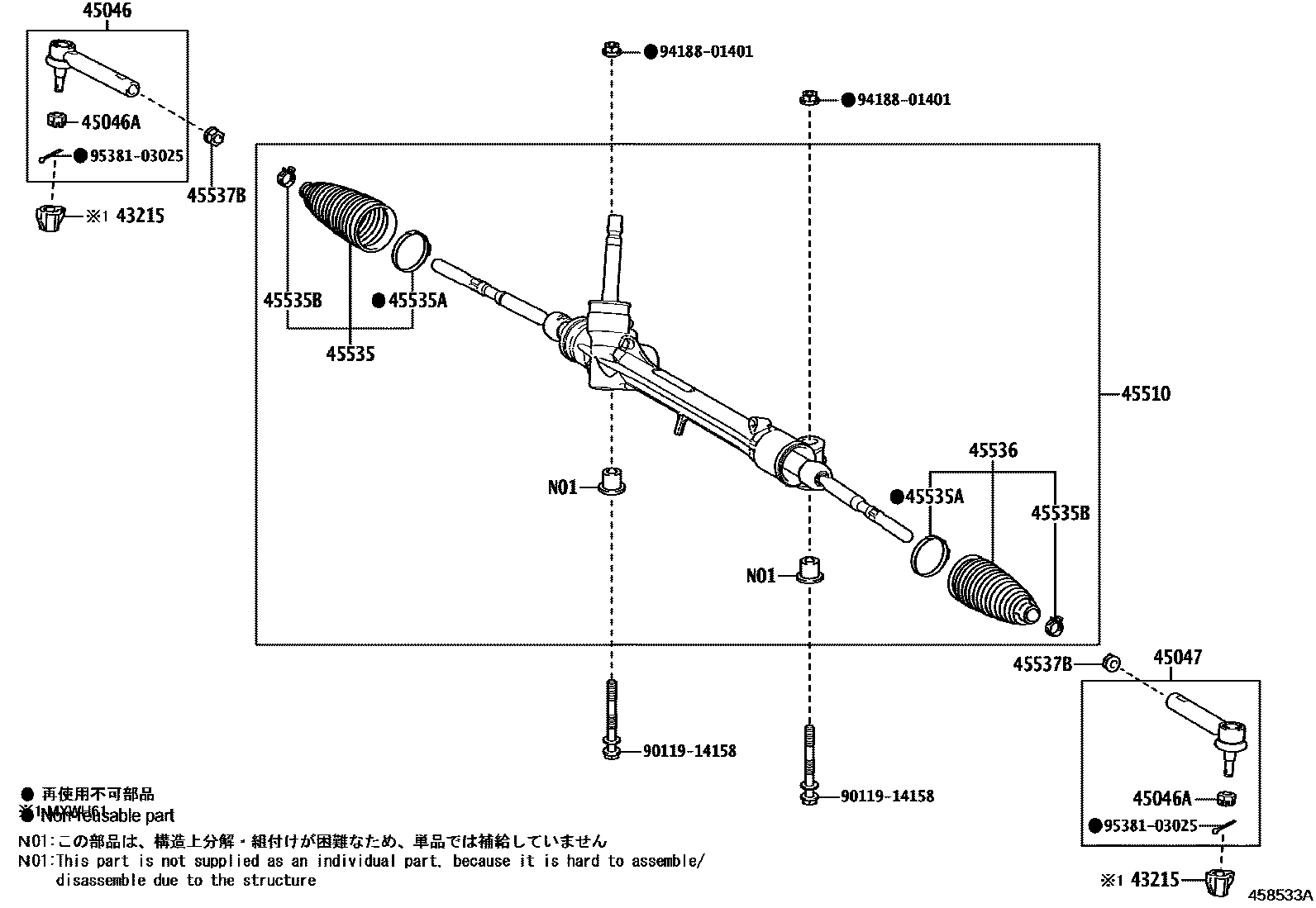

FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iMXWH61202303

45046END SUB-ASSY, TIE ROD, RH

main45046-79035iMXWH61,ZVW60202212

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMXWH61,ZVW60202212

45047END SUB-ASSY, TIE ROD, LH

main45046-79035iMXWH61,ZVW60202212

45510GEAR ASSY, STEERING

main45510-47180iMXWH61..RHD..H202303

TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL

main45510-47180iMXWH61,ZVW60..RHD..E202212

main45510-47190iMXWH61..RHD..H202303

main45510-47200iMXWH61,ZVW60..LHD..E202212

main45510-47200iMXWH61..LHD..H202303

TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL

main45510-47210iMXWH61..LHD..H202303

45535BOOT, STEERING RACK, NO.1

main45535-59075iMXWH61,ZVW60202212

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-48020iMXWH61,ZVW60202212

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iMXWH61,ZVW60202212

45536BOOT, STEERING RACK, NO.2

main45535-59075iMXWH61,ZVW60202212

45537BNUT, RACK END LOCK

main90178-16001iMXWH61,ZVW60202212

9011914158

main90119-14158

9418801401

main94188-01401

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
