FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47080iMXWH61,ZVW60202212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMXWH61,ZVW60202212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMXWH61,ZVW60202212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47080iMXWH61,ZVW60202212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMXWH61,ZVW60202212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMXWH61,ZVW60202212

43512DISC, FRONT

main43512-33150iMXWH61202303

main43512-52170iZVW60202212

9010514194

main90105-14194

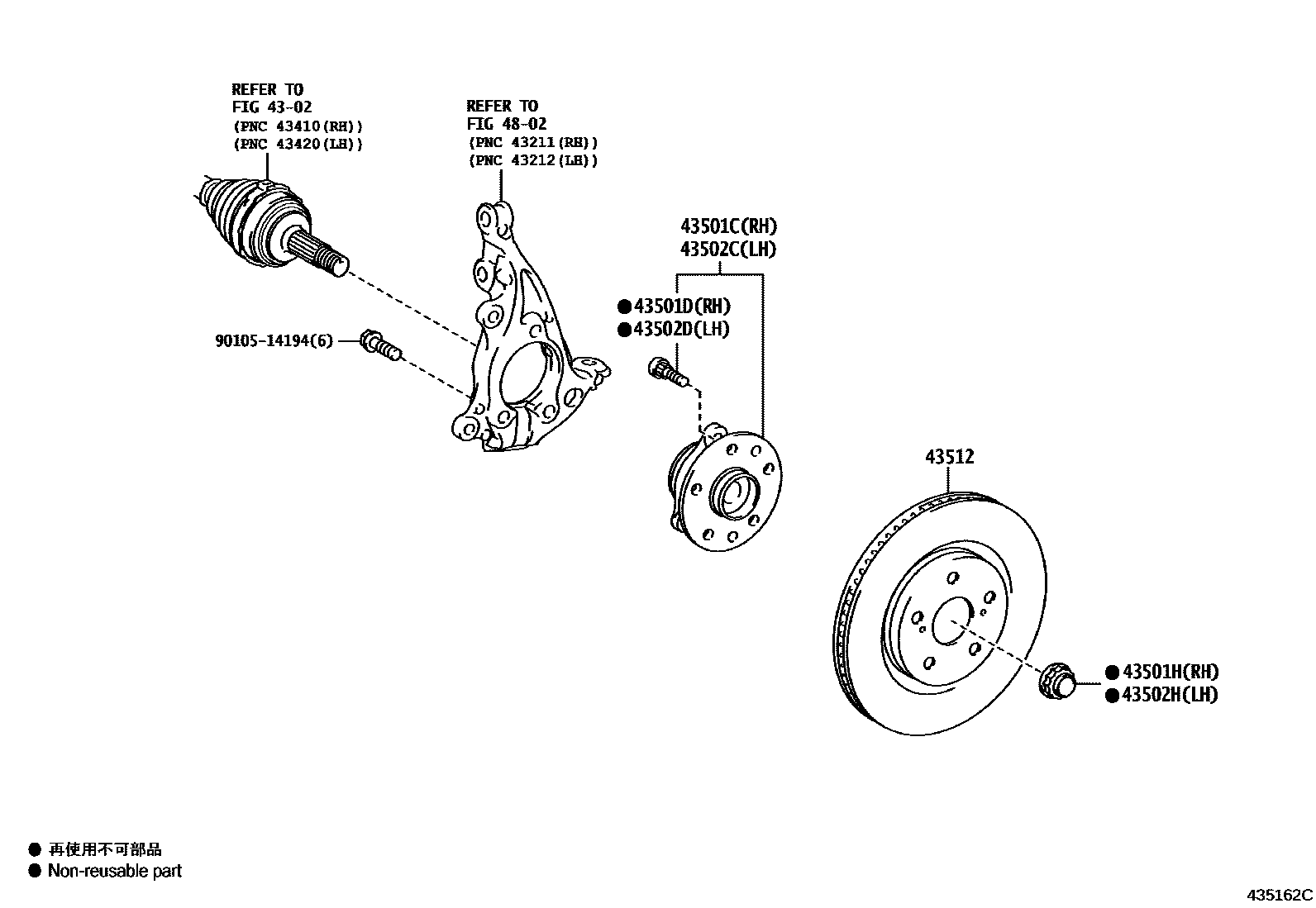

8 parts on this diagram · 1 diagram in section
