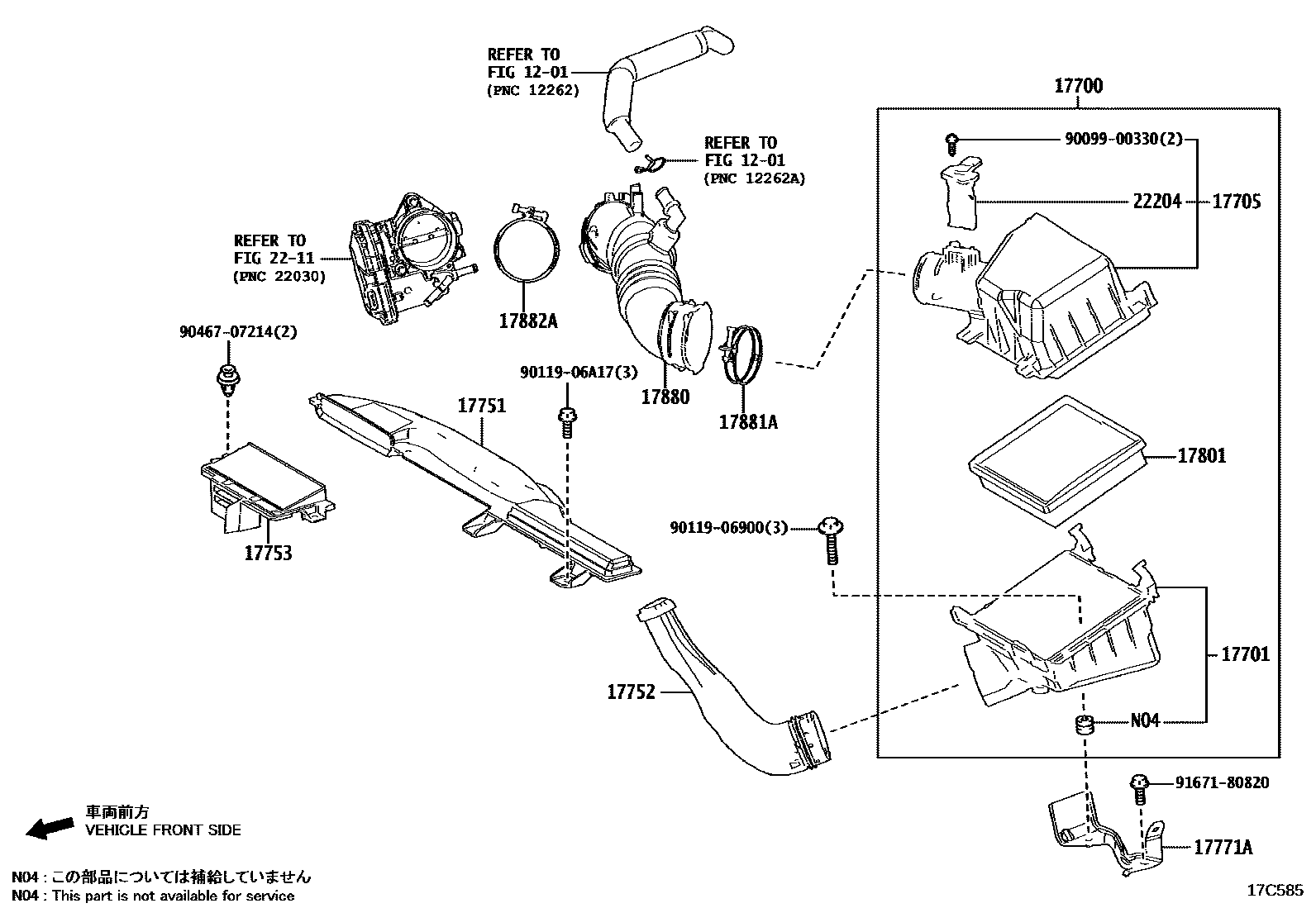

AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-24640iM20AFXS..MXWH61202303

main17700-37410i2ZRFXE..ZVW60202212

17701CASE SUB-ASSY, AIR CLEANER

main17701-24460iM20AFXS..MXWH61202303

main17701-V1010i2ZRFXE..ZVW60202212

17705CAP SUB-ASSY, AIR CLEANER

main17705-24360iM20AFXS..MXWH61202303

main17705-V1010i2ZRFXE..ZVW60202212

17751INLET, AIR CLEANER, NO.1

main17751-24040iM20AFXS..MXWH61202303

main17751-37170i2ZRFXE..ZVW60202212

17752INLET, AIR CLEANER, NO.2

main17752-24070iM20AFXS..MXWH61202303

main17752-37190i2ZRFXE..ZVW60202212

17753INLET, AIR CLEANER, NO.3

main17753-24020i2ZRFXE..ZVW60202212

17771ABRACKET, AIR CLEANER

main17771-24020iM20AFXS..MXWH61202303

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21060i2ZRFXE..ZVW60202212

main17801-24040iM20AFXS..MXWH61202303

17880HOSE ASSY, AIR CLEANER

main17880-24050iM20AFXS..MXWH61202303

main17880-V1010i2ZRFXE..ZVW60202212

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10730iM20AFXS..MXWH61202303

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20AFXS..MXWH61202303

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010i2ZRFXE..ZVW60202212

9009900330

main90099-00330

9011906900

main90119-06900

9011906A17

main90119-06A17

9046707214

main90467-07214

9167180820

main91671-80820

19 parts on this diagram · 2 diagrams in section
