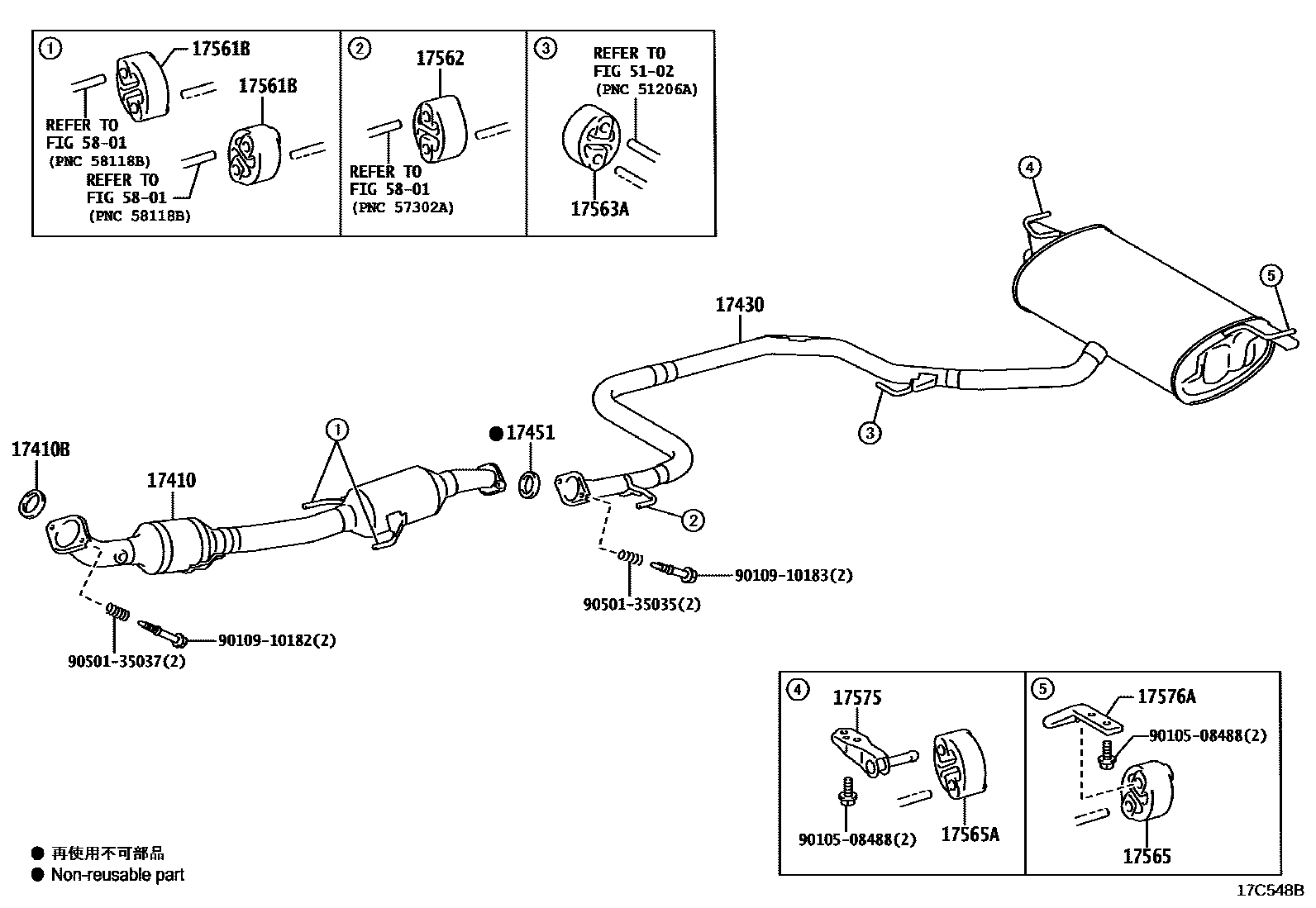

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/L62/Y
17430PIPE ASSY, EXHAUST, TAIL
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
5102
5801
9010508488
main90105-08488
9010910182
main90109-10182
9010910183
main90109-10183
9050135035
main90501-35035
9050135037
main90501-35037
18 parts on this diagram · 2 diagrams in section
