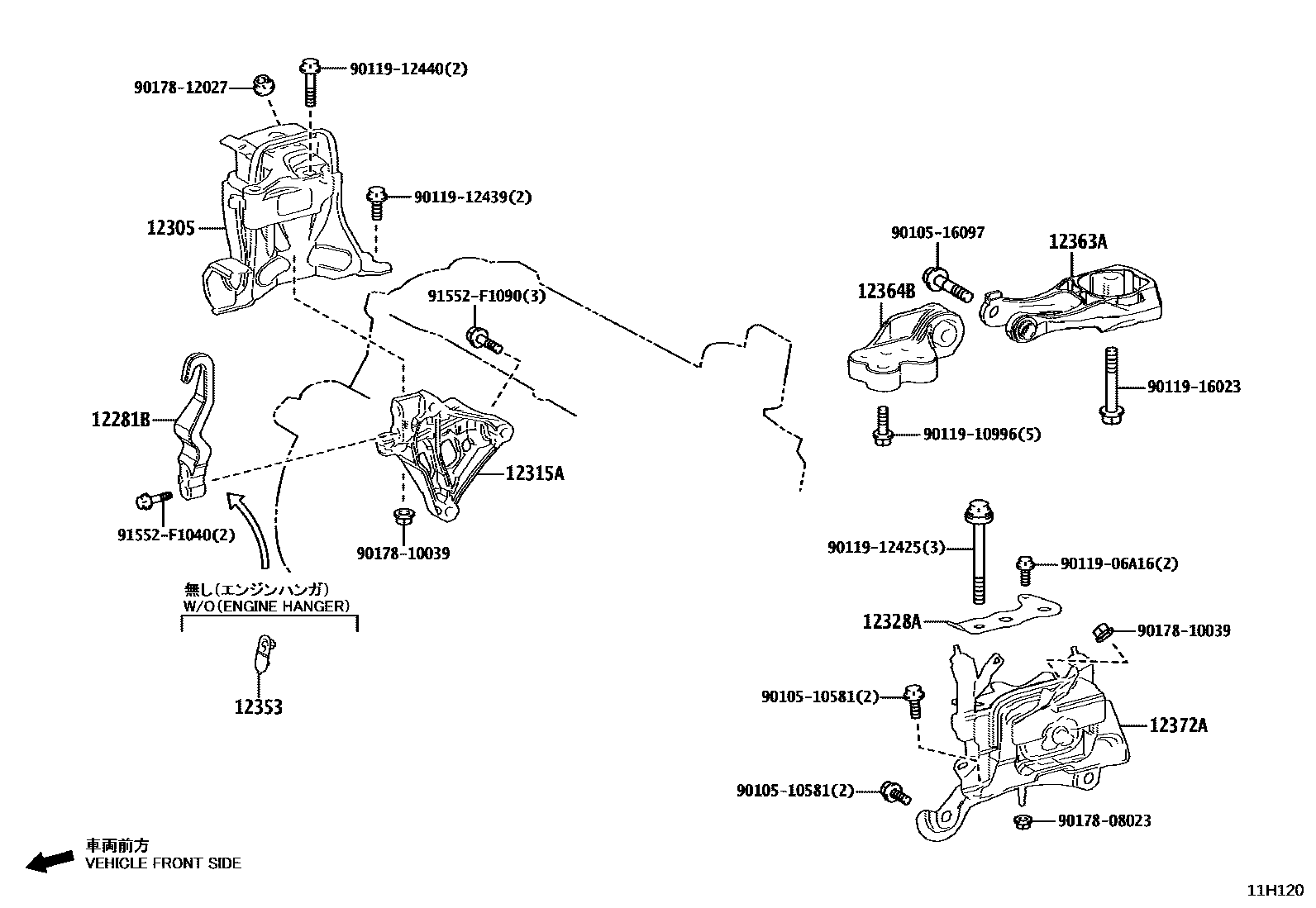

MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20AFXS..MXWH61202303

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24060iM20AFXS..MXWH61202303

main12305-37380i2ZRFXE..ZVW60202212

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24011iM20AFXS..MXWH61202303

main12315-37070i2ZRFXE..ZVW60202212

12328ASTAY, ENGINE MOUNTING, NO.2 LH

main12328-24040iM20AFXS..MXWH61202303

main12328-37021i2ZRFXE..ZVW60202212

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM20AFXS..MXWH61202303

12363AROD, ENGINE MOVING CONTROL

main12363-24050iM20AFXS..MXWH61202303

main12363-37070i2ZRFXE..ZVW60202212-202305

sub12363-37080

main12363-37080i2ZRFXE..ZVW60202306

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-24020i2ZRFXE..ZVW60202212

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-24090iM20AFXS..MXWH61202303

main12372-37321i2ZRFXE..ZVW60202212

9010510581

main90105-10581

9010516097

main90105-16097

9011906A16

main90119-06A16

9011910996

main90119-10996

9011912425

main90119-12425

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

9017808023

main90178-08023

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

21 parts on this diagram · 2 diagrams in section
