STANDARD TOOL

09105BOX SET, JACK

main09105-47020iMXWH61¥7,200202303

09110JACK ASSY

main09111-47051iMXWH61,ZVW60¥5,900202212

09113HANDLE, JACK

main09113-42030iMXWH61,ZVW60¥550202212

09120BAG, TOOL

main09120-76010iMXWH61¥550202303

09150WRENCH, HUB NUT BOX

main09150-42010iZVW60¥1,150202212

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080iMXWH61;ZVW60..RHD¥3,600202212

SPARE TIRE-TEMPORARY TIRE(REINFORCEMENT)

44890DCOMPRESSOR ASSY, AIR

main44890-42050iMXWH61;ZVW60..RHD¥7,500202212

51960HOOK ASSY, FRONT

main51960-12110iMXWH61,ZVW60¥1,800202212

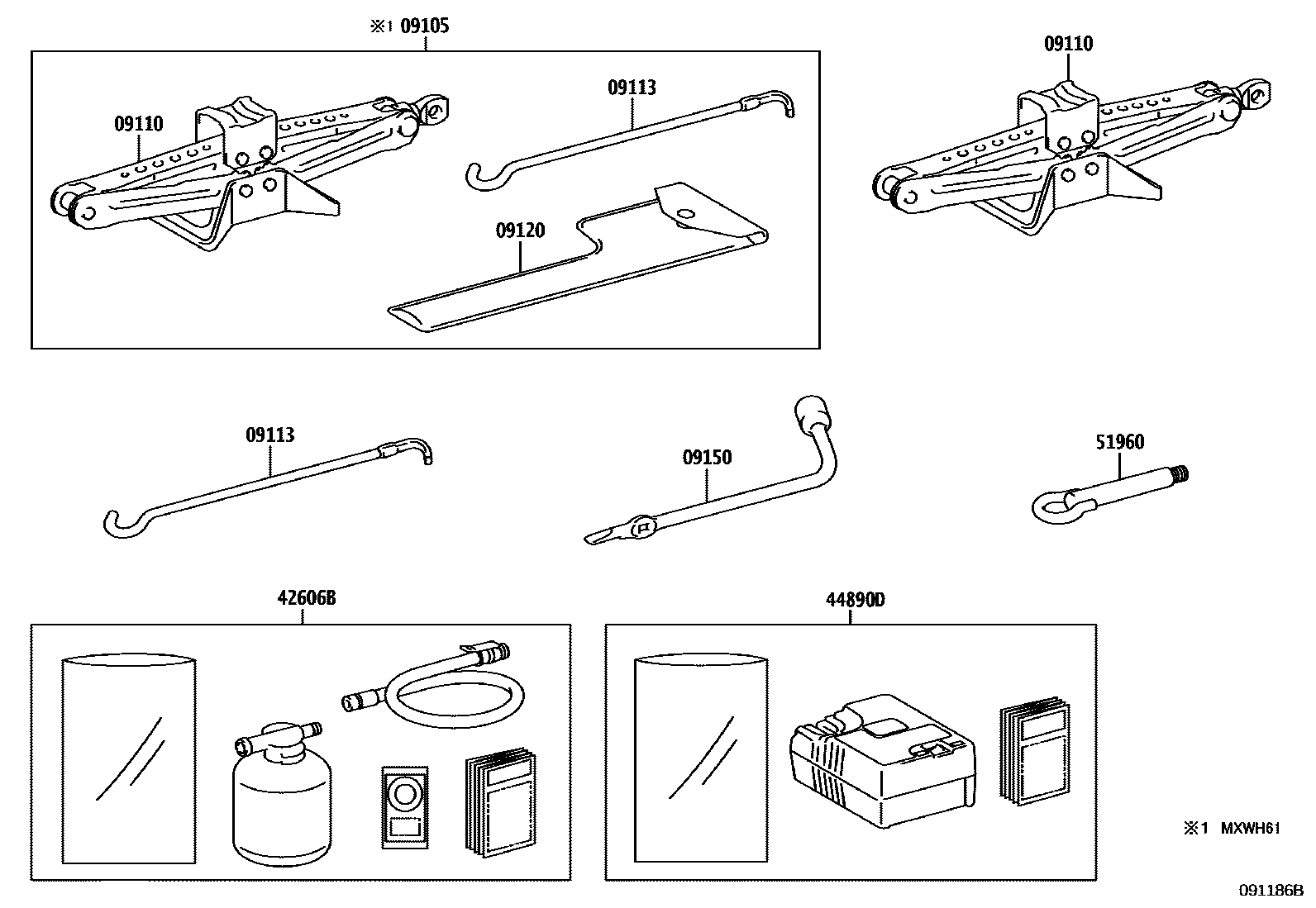

8 parts on this diagram · 1 diagram in section
