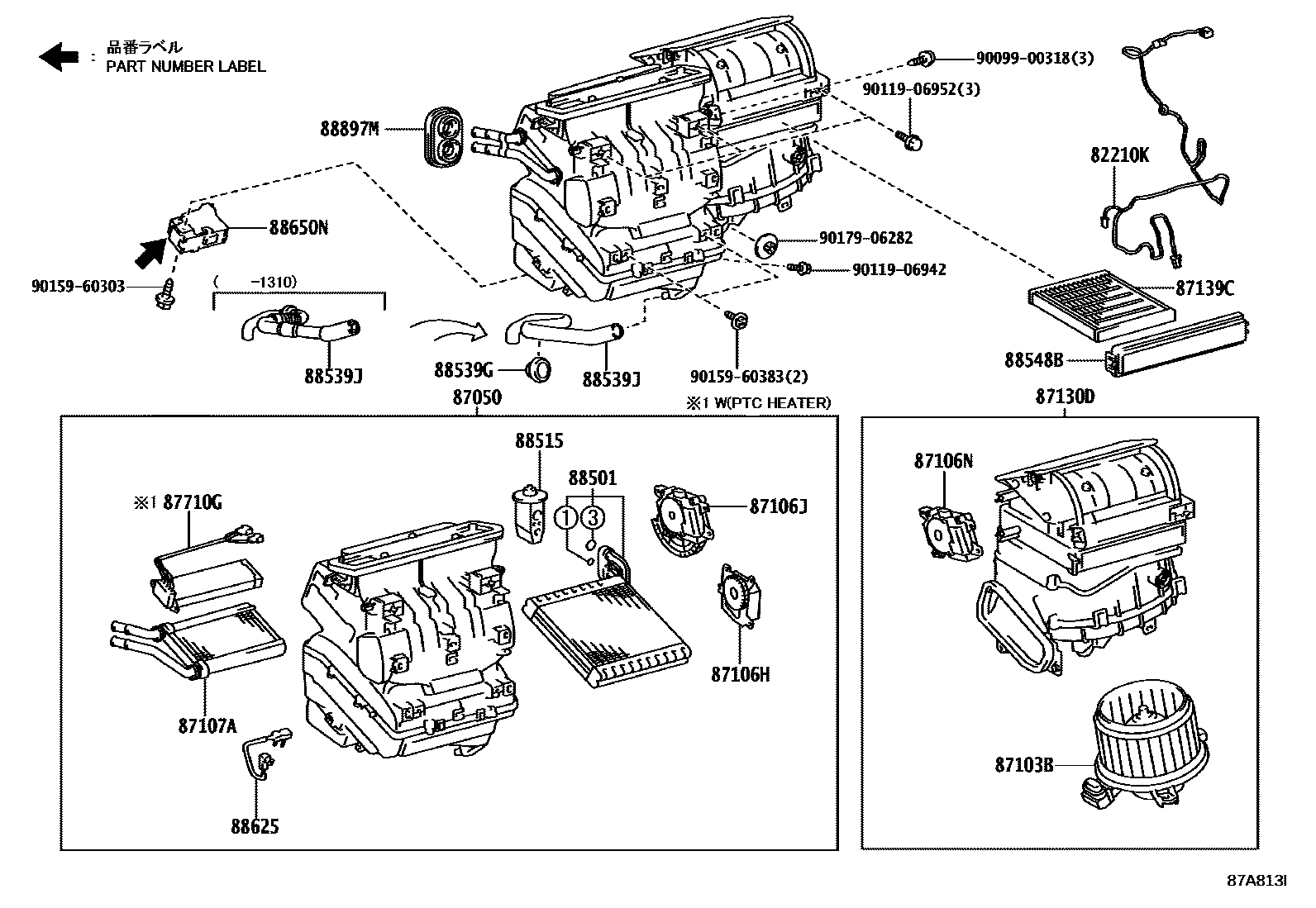

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12010iZVW30..LHD200904-201511

main82212-12020iZVW30..RHD..(ARL,EUR)200904-201511

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47120iZVW30..TH200904-201204

main87050-47130iZVW30..RHD200904-201003

MOON ROOF-WITH(SOLAR PANEL)

main87050-47140iZVW30..LHD200904-201112

main87050-47150iZVW30..LHD200904-201112

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main87050-47150iZVW30..LHD200904-201112

COLD AREA SPEC

main87050-47150iZVW30..LHD200904-201003

MOON ROOF-WITH(SOLAR PANEL)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12060iZVW30..RHD..(ARL,EUR)200904-201204

main87103-12080iZVW30..LHD200904-201112

main87103-47030iZVW30..RHD200904-200910

MOON ROOF-WITH(SOLAR PANEL)

sub87103-47031

main87103-47031iZVW30..RHD..(ARL,EUR)200911-201112

MOON ROOF-WITH(SOLAR PANEL)

main87103-47040iZVW30..LHD200904-200910

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

sub87103-47041

main87103-47040iZVW30..LHD200904-200910

MOON ROOF-WITH(SOLAR PANEL)

sub87103-47041

main87103-47041iZVW30..LHD200911-201112

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main87103-47041iZVW30..LHD200911-201112

MOON ROOF-WITH(SOLAR PANEL)

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170iZVW30..TH200904-201411

main87106-47170iZVW30..ARL,EUR201411

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100iZVW30..TH200904-201204

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42120iZVW30..RHD..(ARL,EUR)200904-201204

main87106-47130iZVW30..LHD200904-201112

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iZVW30..TH200904-201511

87130DBLOWER ASSY

main87130-47100iZVW30..TH200904-201204

main87130-47110iZVW30..RHD200904-201003

MOON ROOF-WITH(SOLAR PANEL)

main87130-47120iZVW30..LHD200904-201112

main87130-47130iZVW30..LHD200904-201003

MOON ROOF-WITH(SOLAR PANEL)

main87130-47130iZVW30..LHD200904-201112

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main87130-47140iZVW30..LHD200904-201112

COLD AREA SPEC

main87130-47180iZVW30..TH201003-201112

MOON ROOF-WITH(SOLAR PANEL)

main87130-47190iZVW30..LHD201003-201112

MOON ROOF-WITH(SOLAR PANEL)

87139CFILTER, CLEAN AIR

main87139-30040iZVW30..TH201204-201308

POLLEN FILTER

main87139-30040iZVW30..ARL,EUR200904-201204

main87139-30040iZVW30..ARL,EUR201112-201308

MICRO DUST FILTER

main87139-50060iZVW30..EUR201112-201204

DEODORANT FILTER

sub87139-50100

main87139-50100iZVW30..TH201205

*DPF

main87139-76010iZVW30..ARL,EUR201309

MICRO DUST FILTER

87710GQUICK HEATER ASSY

main87710-12010iZVW30..RHD200904-201003

MOON ROOF-WITH(SOLAR PANEL)

main87710-12020iZVW30..LHD200904-201003

MOON ROOF-WITH(SOLAR PANEL)

main87710-12020iZVW30..LHD200904-201112

COLD AREA SPEC

main87710-12020iZVW30..LHD200904-201112

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47050iZVW30200904-201006

sub88501-47051

main88501-47051iZVW30..ARL,EUR201007-201204

88515VALVE, COOLER EXPANSION

main88515-47040iZVW30..ARL,EUR200904-201511

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iZVW30..ARL,EUR201310

88539JHOSE, DRAIN COOLER

main88539-02170iZVW30..TH201204

main88539-12190iZVW30..TH200904-201310

main88539-12200iZVW30..LHD200904-201310

main88539-12210iZVW30..RHD..(ARL,EUR)201310

main88539-12230iZVW30..LHD201310

88548BCASE, AIR FILTER

main88548-42010iZVW30..RHD..(ARL,EUR)200904-201204

main88548-42020iZVW30..LHD200904-201112

88625THERMISTOR, COOLER, NO.1

main88625-71010iZVW30..TH200904-201204

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0Q020iZVW30..TH201204

MOON ROOF-WITH(SOLAR PANEL)

main88650-0Q030iZVW30..TH201204

main88650-47060iZVW30200904-200910

sub88650-47061

main88650-47061iZVW30200911-201010

sub88650-47062

main88650-47062iZVW30..TH201011-201204

main88650-47070iZVW30200904-200910

MOON ROOF-WITH(SOLAR PANEL)

sub88650-47071

main88650-47071iZVW30200911-201010

MOON ROOF-WITH(SOLAR PANEL)

sub88650-47072

main88650-47072iZVW30..ARL,EUR201011-201112

MOON ROOF-WITH(SOLAR PANEL)

main88650-47080iZVW30..LHD200904-200910

COLD AREA SPEC

sub88650-47081

main88650-47081iZVW30..LHD200911-201010

COLD AREA SPEC,P/N LABEL=8865047081

sub88650-47082

main88650-47082iZVW30..LHD201011-201112

COLD AREA SPEC

main88650-47090iZVW30..LHD200904-200910

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

sub88650-47091

main88650-47091iZVW30..LHD200911-201010

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL),P/N LABEL=8865047091

sub88650-47092

main88650-47092iZVW30..LHD201011-201112

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main88650-47140iZVW30..ARL,EUR201112-201206

MOON ROOF-WITH(SOLAR PANEL)

sub88650-47141

main88650-47141iZVW30..ARL,EUR201207-201210

MOON ROOF-WITH(SOLAR PANEL)

main88650-47150iZVW30..LHD201112-201206

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main88650-47151iZVW30..LHD201207-201210

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main88650-47160iZVW30..ARL,EUR201112-201206

sub88650-47161

main88650-47161iZVW30..ARL,EUR201207-201210

main88650-47170iZVW30..LHD201112-201206

COLD AREA SPEC

main88650-47171iZVW30..LHD201207-201210

COLD AREA SPEC

main88650-47300iZVW30..ARL,EUR201210

MOON ROOF-WITH(SOLAR PANEL)

main88650-47310iZVW30..LHD201210

COLD AREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main88650-47320iZVW30..ARL,EUR201210

main88650-47330iZVW30..LHD201210

COLD AREA SPEC

88897MGROMMET (FOR HEATER PIPE)

main87128-42010iZVW30..ARL,EUR200904-201511

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

24 parts on this diagram · 3 diagrams in section
