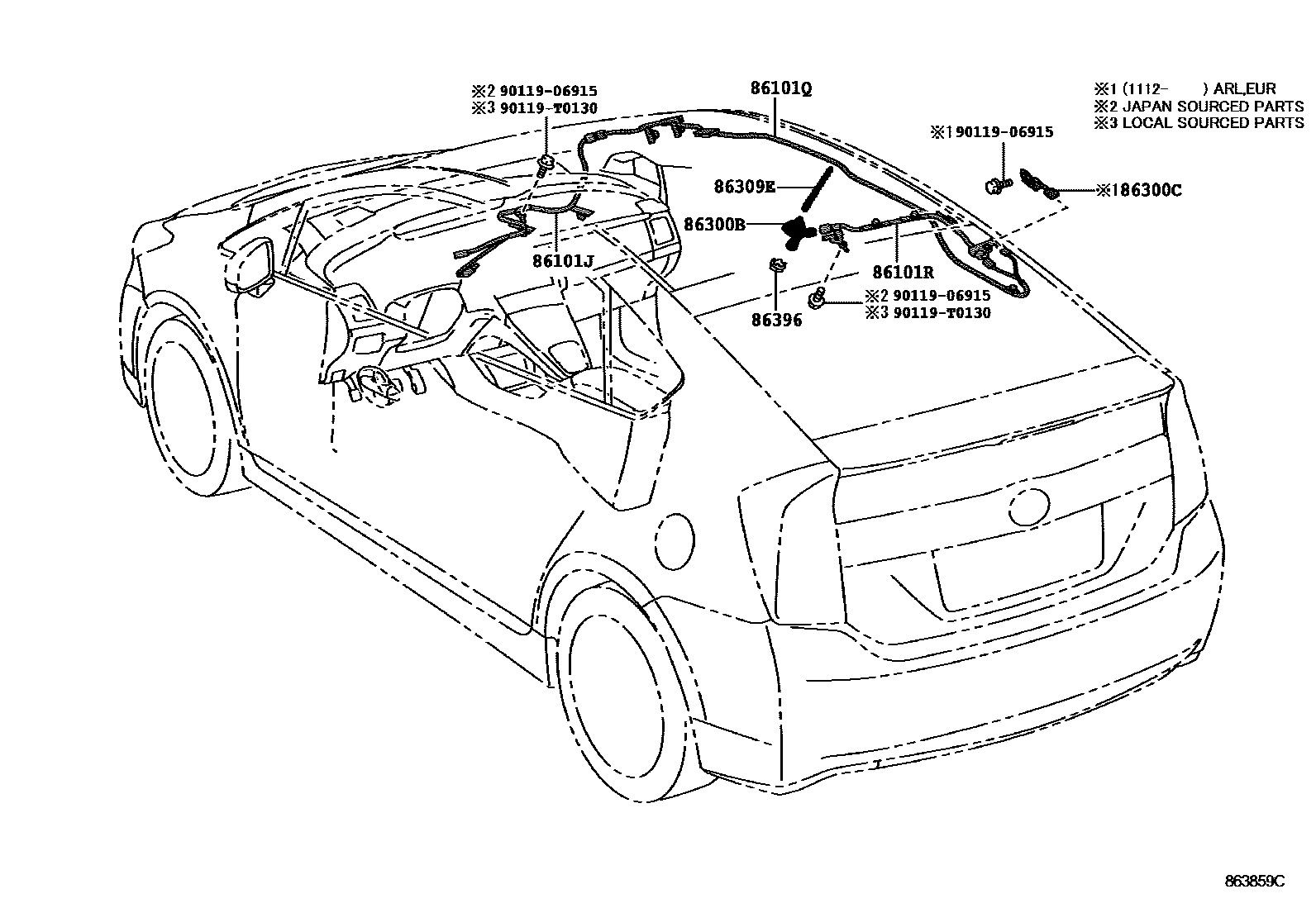

ANTENNA

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47250iZVW30..TH201204

main86101-47370iZVW30..TH200904-201204

main86101-47380iZVW30..LHD200904-201112

main86101-47760iZVW30..RHD..(ARL,EUR)201112

main86101-47770iZVW30..LHD201112

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-47200iZVW30..ARL,EUR200904-201204

main86101-47820iZVW30..ARL,EUR201112

main86101-47850iZVW30..TH201204

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-47320iZVW30..ARL,EUR200904-201204

main86101-47860iZVW30..ARL,EUR201112

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-47060iZVW30200904-201101

sub86300-47061

main86300-47061iZVW30..ARL,EUR201012-201204

main86300-47120iZVW30..ARL,EUR201112-201511

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-47130iZVW30..ARL,EUR201112

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-47020iZVW30..ARL,EUR200904-201511

86396NUT, ANTENNA

main86396-30050iZVW30200904-200908

main86396-47010iZVW30..ARL,EUR200909-201511

9011906915

main90119-06915

90119T0130

main90119-T0130

9 parts on this diagram · 1 diagram in section
