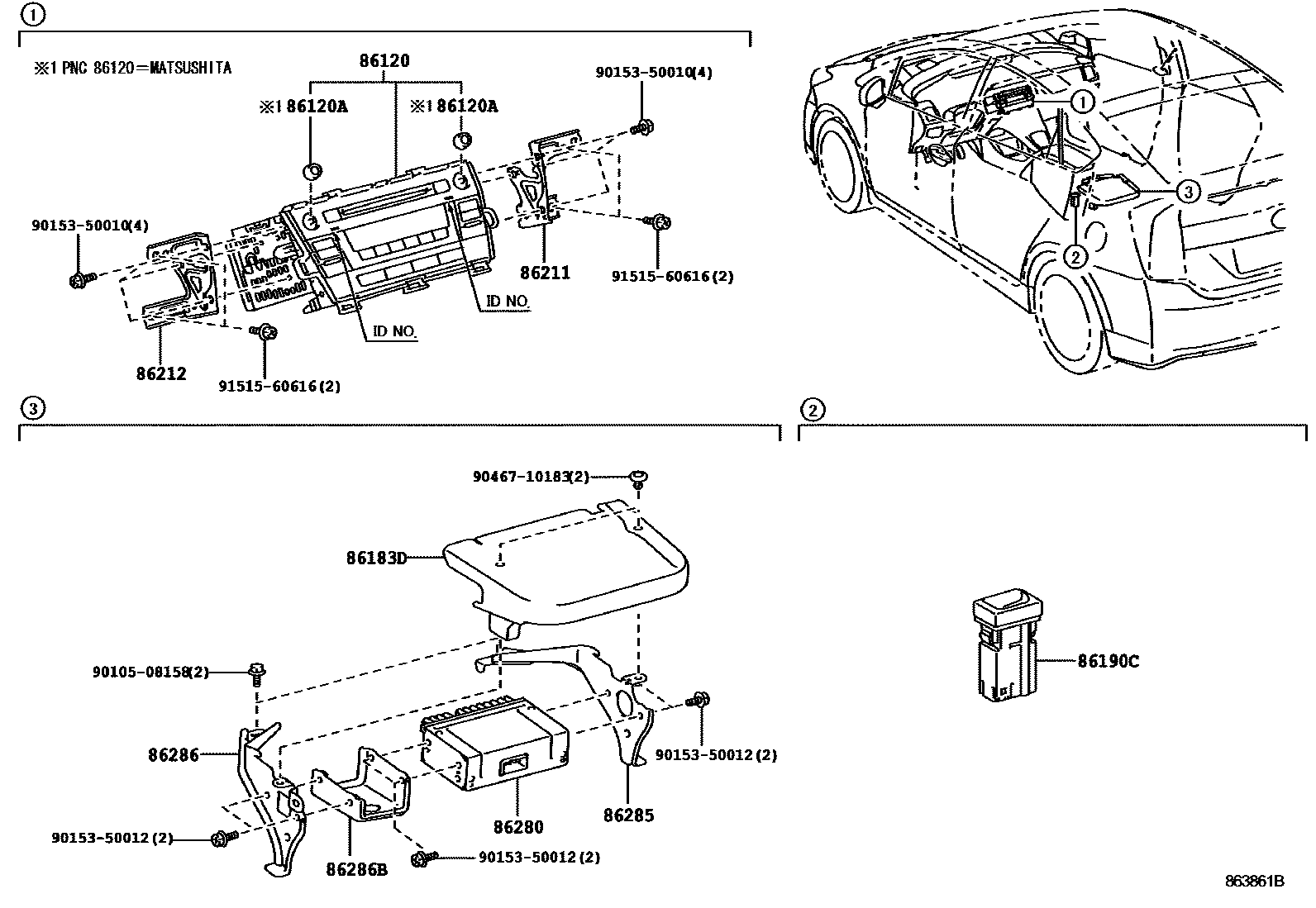

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1CONDENSER 0005 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0Q030iZVW30..TH201204

FUJITSU,ID=100108

main86120-47300iZVW30..RHD..EUR200904-201005

FUJITSU TEN,ID=13825,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-RADIO LESS,6SPEAKER

main86120-47300iZVW30..RHD..EUR200904-201005

FUJITSU TEN,ID=13825,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-CD-CHANGER,8SPEAKER

main86120-47300iZVW30..RHD..EUR200904-201005

FUJITSU TEN,ID=13825,AUDIO-AVN,BLUETOOTH,8SPEAKER

main86120-47300iZVW30..RHD..EUR200904-201005

FUJITSU TEN,ID=13825

main86120-47301iZVW30..RHD..EUR201005-201112

FUJITSU TEN,ID=13847

main86120-47301iZVW30..RHD..EUR201005-201112

FUJITSU TEN,ID=13847,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-RADIO LESS,6SPEAKER

main86120-47301iZVW30..RHD..EUR201005-201112

FUJITSU TEN,ID=13847,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-CD-CHANGER,8SPEAKER

main86120-47301iZVW30..RHD..EUR201005-201112

FUJITSU TEN,ID=13847,AUDIO-AVN,BLUETOOTH,8SPEAKER

main86120-47310iZVW30..ARL200904-201005

FUJITSU TEN,ID=13826,AUDIO-AVN,BLUETOOTH,8SPEAKER

sub86120-47311

main86120-47310iZVW30..ARL200904-201005

FUJITSU TEN,ID=13826,AUDIO-CD,BLUETOOTH,8SPEAKER

sub86120-47311

main86120-47310iZVW30..ARL200904-201005

FUJITSU TEN,ID=13826

sub86120-47311

main86120-47311iZVW30..RHD..EUR201005-201112

FUJITSU TEN,ID=13826,AUDIO-CD,BLUETOOTH,8SPEAKER

main86120-47311iZVW30..TH201005-201112

FUJITSU TEN,ID=13826

main86120-47311iZVW30..ARL201005-201112

FUJITSU TEN,ID=13826,AUDIO-AVN,BLUETOOTH,8SPEAKER

main86120-47320iZVW30..RHD..EUR200904-201005

FUJITSU TEN,ID=13827,AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

sub86120-47321

main86120-47321iZVW30..RHD..EUR201005-201112

FUJITSU TEN,ID=13827,AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86120-47321iZVW30..TH201012-201106

FUJITSU TEN,ID=13827,AUDIO-CD-CHANGER BLUETOOTH 8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-CD-CHANGER,8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,CHILE SPEC&AUDIO-RADIO LESS,6SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,EGYPT SPEC&AUDIO-CD-CHANGER,8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,MALAYSIA SPEC&AUDIO-CD-CHANGER,8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,AUDIO-AVN,BLUETOOTH,8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,TAIWAN SPEC&AUDIO-AV,BLUETOOTH,8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,TAIWAN SPEC&AUDIO-RADIO LESS,6SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,TAIWAN SPEC&AUDIO-CD-CHANGER,8SPEAKER

main86120-47330iZVW30..LHD200904-201005

FUJITSU TEN,ID=13822,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-RADIO LESS,6SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,TAIWAN SPEC&AUDIO-CD-CHANGER,8SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,TAIWAN SPEC&AUDIO-AV,BLUETOOTH,8SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,TAIWAN SPEC&AUDIO-RADIO LESS,6SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-RADIO LESS,6SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-CD-CHANGER,8SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,CHILE SPEC&AUDIO-RADIO LESS,6SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,EGYPT SPEC&AUDIO-CD-CHANGER,8SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,MALAYSIA SPEC&AUDIO-CD-CHANGER,8SPEAKER

main86120-47331iZVW30..LHD201005-201112

FUJITSU TEN,ID=13846,AUDIO-AVN,BLUETOOTH,8SPEAKER

main86120-47340iZVW30..LHD200904-201005

FUJITSU TEN,ID=13823,AUDIO-CD,BLUETOOTH,8SPEAKER

sub86120-47341

main86120-47341iZVW30..LHD201005-201112

FUJITSU TEN,ID=13823,AUDIO-CD,BLUETOOTH,8SPEAKER

main86120-47350iZVW30..LHD200904-201005

FUJITSU TEN,ID=13824,AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

sub86120-47351

main86120-47351iZVW30..LHD201005-201112

FUJITSU TEN,ID=13824,AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86120-47460iZVW30..LHD200904-201112

MATSUSHITA,ID=52860,CHILE SPEC&AUDIO-CD-CHANGER,8SPEAKER

sub86120-60A10

main86120-47460iZVW30..EUR200904-201112

MATSUSHITA,ID=52860,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-CD-CHANGER,8SPEAKER

sub86120-60A10

main86120-47540iZVW30..TH201107-201204

FUJITSU TEN,ID100061

main86120-47560iZVW30..TH201107-201204

FUJITSU TEN,ID100062,AUDIO-CD-CHANGER BLUETOOTH 8SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24140iZVW30..LHD200904-201112

CHILE SPEC&AUDIO-CD-CHANGER,8SPEAKER

main90010-24140iZVW30..EUR200904-201112

MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&AUDIO-CD-CHANGER,8SPEAKER

86183DCOVER, AUDIO AMPLIFIER

main86183-47040iZVW30..EUR200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86183-47040iZVW30..EUR200904-201112

AUDIO-AV,BLUETOOTH,8SPEAKER

main86183-47040iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,8SPEAKER

main86183-47040iZVW30..EUR200904-201112

AUDIO-CD,BLUETOOTH,8SPEAKER

main86183-47040iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86183-47040iZVW30..TH201012-201204

main86183-47110iZVW30..LHD201112

AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER

main86183-47110iZVW30..LHD201112

AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER

main86183-47110iZVW30..RHD..EUR201112

AUDIO-*DA *BT USB JBL 8SPEAKER

main86183-47110iZVW30..RHD..EUR201112

AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

main86183-47110iZVW30..RHD..EUR201112

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86183-47110iZVW30..TH201204

main86183-47110iZVW30..RHD..EUR201112-201210

AUDIO-AVN(FOR ASIA) *BT USB JBL 8SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24010iZVW30..TH201204

main86190-47020iZVW30..TH201204

AUDIO-AVN & *BT & USB & JBL & 8SPEAKER

main86190-47020iZVW30..ARL,EUR201112

main86190-47020iZVW30..TH201204

AUDIO-*DA & *BT & USB & JBL & 8SPEAKER

main86190-48010iZVW30..TH200904-201204

86211BRACKET, RADIO, NO.1

main86211-47050iZVW30..EUR200904-201511

AUDIO-RADIO LESS,6SPEAKER

main86211-47050iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,8SPEAKER

main86211-47060iZVW30..ARL,EUR200904-201204

main86211-47100iZVW30..ARL,EUR201112-201511

86212BRACKET, RADIO, NO.2

main86212-47050iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,8SPEAKER

main86212-47050iZVW30..EUR200904-201511

AUDIO-RADIO LESS,6SPEAKER

main86212-47060iZVW30..ARL,EUR200904-201204

main86212-47100iZVW30..ARL,EUR201112-201511

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WA51iZVW30..RHD..EUR201112-201310

AUDIO-*DA *BT USB JBL 8SPEAKER

main86280-0WA51iZVW30..RHD..EUR201112-201310

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86280-0WA51iZVW30..RHD..EUR201112-201310

AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER

main86280-0WA51iZVW30..RHD..EUR201112-201310

AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER

main86280-0WA51iZVW30..ARL201112-201310

AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

main86280-0WA51iZVW30..TH201204-201310

AUDIO-*DA & *BT & USB & JBL & 8SPEAKER

main86280-0WA51iZVW30..TH201204-201310

AUDIO-AVN & *BT & USB & JBL & 8SPEAKER

main86280-0WA51iZVW30..RHD..EUR201112-201210

AUDIO-AVN(FOR ASIA) *BT USB JBL 8SPEAKER

main86280-47020iZVW30..LHD200904-201112

AUDIO-CD,BLUETOOTH,8SPEAKER

sub86280-47021

main86280-47020iZVW30..ARL200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

sub86280-47021

main86280-47020iZVW30..ARL200904-201112

AUDIO-AV,BLUETOOTH,8SPEAKER

sub86280-47021

main86280-47020iZVW30..ARL200904-201112

AUDIO-CD-CHANGER,8SPEAKER

sub86280-47021

main86280-47020iZVW30..ARL200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

sub86280-47021

main86280-47020iZVW30..TH201012-201204

sub86280-47021

main86280-47080iZVW30..TH201311

AUDIO-AVN & *BT & USB & JBL & 8SPEAKER

sub86280-47081

main86280-47080iZVW30..ARL201310

AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER

sub86280-47081

main86280-47080iZVW30..ARL201310

AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER

sub86280-47081

main86280-47080iZVW30..EUR201310

AUDIO-*DA *BT USB JBL 8SPEAKER

sub86280-47081

main86280-47080iZVW30..EUR201310

AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

sub86280-47081

main86280-47080iZVW30..EUR201310

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

sub86280-47081

main86280-47080iZVW30..TH201311

AUDIO-*DA & *BT & USB & JBL & 8SPEAKER

sub86280-47081

86285BRACKET, AMPLIFIER, NO.1

main86285-47010iZVW30..TH201204

main86285-47020iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86285-47020iZVW30..ARL200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86285-47020iZVW30..ARL200904-201112

AUDIO-AV,BLUETOOTH,8SPEAKER

main86285-47020iZVW30..ARL200904-201112

AUDIO-CD-CHANGER,8SPEAKER

main86285-47020iZVW30..ARL200904-201112

AUDIO-CD,BLUETOOTH,8SPEAKER

main86285-47020iZVW30..TH201012-201204

86286BRACKET, AMPLIFIER, NO.2

main86286-47030iZVW30..EUR200904-201112

AUDIO-CD,BLUETOOTH,8SPEAKER

main86286-47030iZVW30..ARL200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86286-47030iZVW30..ARL200904-201112

AUDIO-AV,BLUETOOTH,8SPEAKER

main86286-47030iZVW30..ARL200904-201112

AUDIO-CD-CHANGER,8SPEAKER

main86286-47030iZVW30..ARL200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86286-47030iZVW30..TH201012-201204

86286BBRACKET, AMPLIFIER, NO.2

main86286-47010iZVW30..TH201204

main86286-47020iZVW30..EUR200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86286-47020iZVW30..EUR200904-201112

AUDIO-AV,BLUETOOTH,8SPEAKER

main86286-47020iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,8SPEAKER

main86286-47020iZVW30..EUR200904-201112

AUDIO-CD,BLUETOOTH,8SPEAKER

main86286-47020iZVW30..EUR200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86286-47020iZVW30..TH201012-201204

9010508158

main90105-08158

9015350010

main90153-50010

9015350012

main90153-50012

9046710183

main90467-10183

9151560616

main91515-60616

15 parts on this diagram · 5 diagrams in section
