WINDSHIELD WIPER

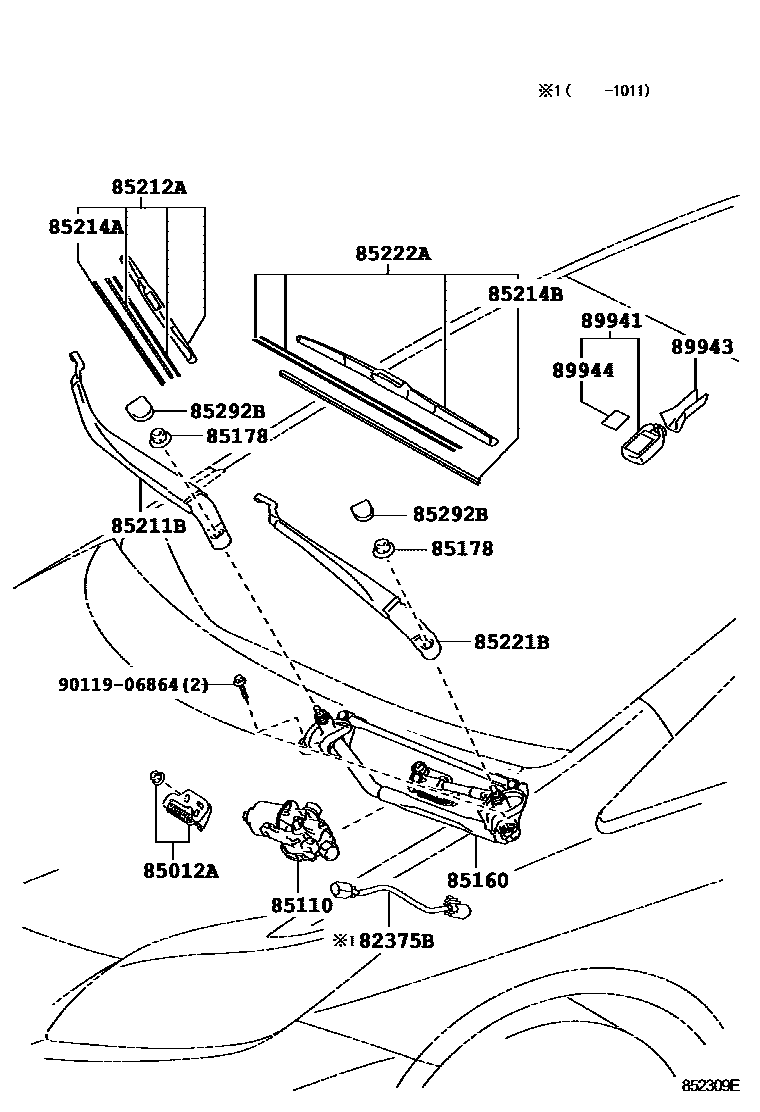

Parts diagram

82375BWIRE, WIPER MOTOR

main82375-47010i¥0200904-201011

main82375-47020i200904-201011

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010i¥0200904-201204

main85012-58030i¥0200904-201112

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47100i¥25,100200904-201003

main85110-47110i¥30,400200904-201003

sub85110-47200¥25,300

main85110-47120i200904-201003

main85110-47190i¥25,100201003-201112

main85110-47200i¥25,300201003-201204

main85110-47210i201003-201112

85160LINK ASSY, WINDSHIELD WIPER

main85150-47110i¥8,400200904-201011

main85150-47111i¥8,400201011-201112

sub85150-47121¥10,800

main85150-47120i¥10,900200904-201011

main85150-47121i¥10,800201011-201204

main85150-47130i200904-201011

main85150-47131i201011-201112

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223i¥100200904-201207

main90182-10006i¥80201207

85211BARM, FRONT WIPER, RH

main85211-47090i¥5,100200904-201112

main85211-47110i¥6,000200904-201112

main85211-47120i200904-201107

main85211-47121i201104-201204

85212ABLADE, FR WIPER, RH

main85212-47030i¥0200904-201112

main85212-68050i¥4,290200904-201204

85214ARUBBER, WIPER, RH

main85214-28090i¥750200904-201112

main85214-68020i¥900200904-201204

sub85214-52110¥900

85214BRUBBER, WIPER, LH

main85214-28090i¥750200904-201204

main85214-68020i¥900200904-201112

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-47080i¥4,950200904-201204

main85221-47100i¥5,100200904-201112

sub85221-47101¥5,100

main85221-47101i¥5,100201112

85222ABLADE, FR WIPER, LH

main85222-28180i¥1,810200904-201204

main85222-75010i¥5,500200904-201010

sub85222-75011¥4,290

main85222-75011i¥4,290201011-201112

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010i¥250200904-201204

89941SENSOR, RAIN

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN(FOR TAIWAN) *BT USB JBL8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-*DA *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201112

SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

main89941-42010i¥13,800201012-201204

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AV,BLUETOOTH,8SPEAKER

main89941-42010i¥13,800200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER

89943COVER, RAIN SENSOR

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AV,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER

main89943-47010i¥1,550201012-201204

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA *BT USB JBL 8SPEAKER

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN(FOR TAIWAN) *BT USB JBL8SPEAKER

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-*DA *BT USB JBL 8SPEAKER

main89943-47010i¥1,550201112

SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

89944TAPE, RAIN SENSOR

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AV,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER

main89944-42010i¥1,490201012-201204

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA *BT USB JBL 8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN(FOR TAIWAN) *BT USB JBL8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-*DA *BT USB JBL 8SPEAKER

main89944-42010i¥1,490201112

SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER

9011906864

main90119-06864¥80

16 parts on this diagram · 2 diagrams in section
