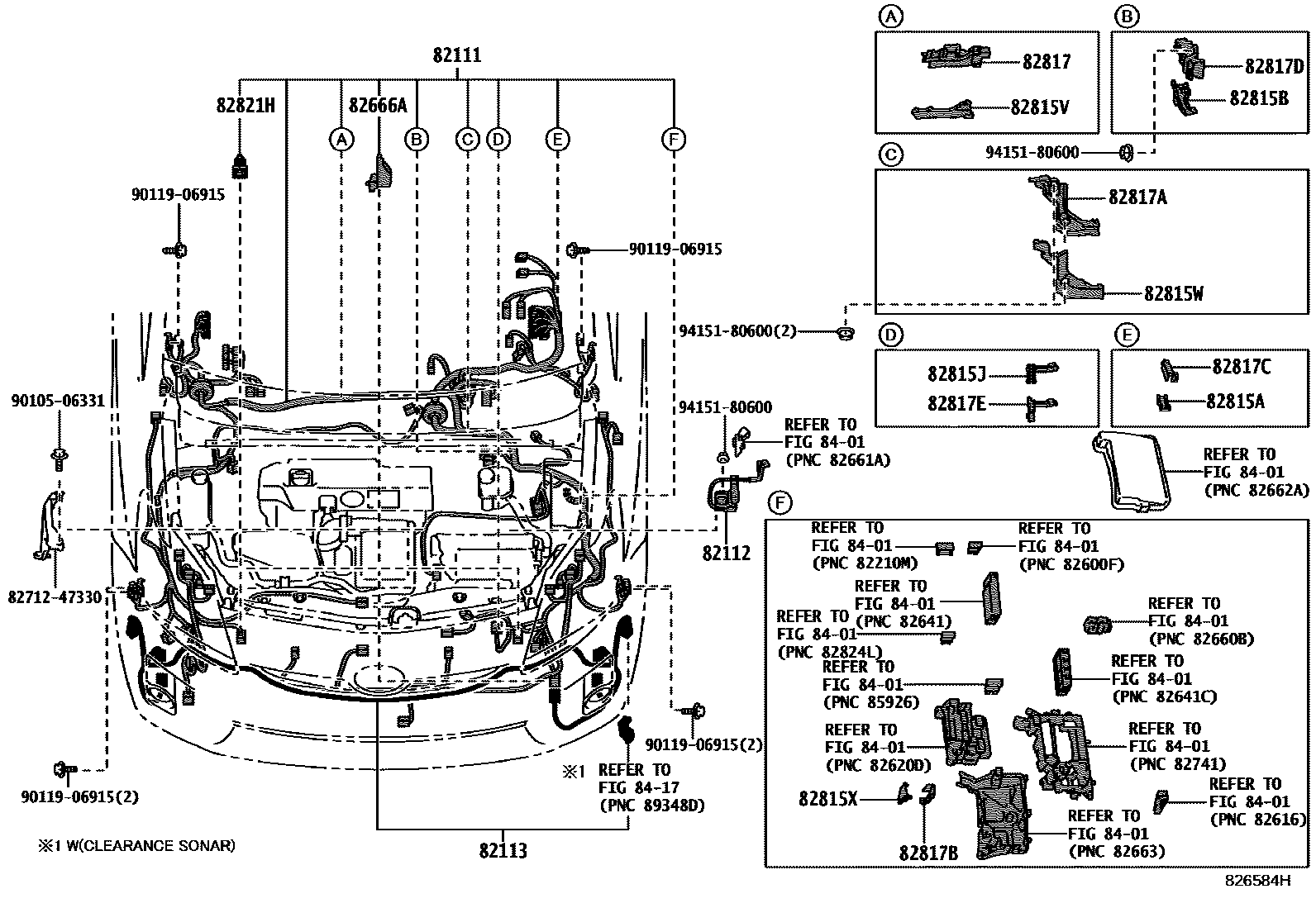

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE 0006 1INSTRUMENT PANEL & CONSOLE BO0007 1INSTRUMENT PANEL & CONSOLE BO0008 1DOOR 0009 1FLOOR & ROOF 0010 1SEAT 0011 1HIGH-TENSION CABLE 0012 1CLAMP & BRACKET 0013 1CABLE BOND 0014 1CONNECTOR 1/2 0015 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-0Q010iZVW30..TH201204-201407

main82111-0Q011iZVW30..TH201407

main82111-47340iZVW30..RHD200904-201011

main82111-47342iZVW30..TH201011-201204

main82111-47410iZVW30..LHD200904-201011

main82111-47412iZVW30..LHD201011-201105

sub82111-47413

main82111-47413iZVW30..LHD201106-201112

main82111-47770iZVW30..RHD..(ARL,EUR)201112-201202

main82111-47771iZVW30..RHD..(ARL,EUR)201203-201310

main82111-47772iZVW30..RHD..(ARL,EUR)201310-201405

P/N LABEL=8211147772

main82111-47773iZVW30..RHD..(ARL,EUR)201405-201511

P/N LABEL=8211147773

main82111-47850iZVW30..LHD201112-201203

main82111-47851iZVW30..LHD201204-201207

sub82111-47852

main82111-47852iZVW30..LHD201208-201301

sub82111-47853

main82111-47853iZVW30..LHD201302-201511

82112WIRE, ENGINE ROOM, NO.2

main82112-47030iZVW30..ARL,EUR200904-201511

82113WIRE, ENGINE ROOM, NO.3

main82113-0Q010iZVW30..TH201204

main82113-47020iZVW30..TH200904-201204

main82113-47180iZVW30..ARL,EUR201112-201511

82666AHOLDER, CONNECTOR NO.2

main82666-47380iZVW30..ARL,EUR200904-201204

main82666-47530iZVW30..ARL,EUR201112-201511

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47380iZVW30..LHD200904-201511

main82815-47670iZVW30..TH200904-201511

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47390iZVW30..RHD..(ARL,EUR)200904-201511

main82815-47600iZVW30..LHD200904-201511

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47560iZVW30..ARL,EUR200904-201511

82815VCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-47590iZVW30..RHD..(ARL,EUR)200904-201511

main82815-47620iZVW30..LHD200904-201511

82815WCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-47570iZVW30..TH200904-201511

main82815-47610iZVW30..LHD200904-201511

82815XCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-47390iZVW30..LHD200904-201511

main82815-47580iZVW30..RHD..(ARL,EUR)200904-201511

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47830iZVW30..RHD..(ARL,EUR)200904-201511

main82817-47870iZVW30..LHD200904-201511

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47810iZVW30..RHD..(ARL,EUR)200904-201511

main82817-47860iZVW30..LHD200904-201511

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47620iZVW30..LHD200904-201112

main82817-47820iZVW30..RHD..(ARL,EUR)200904-201511

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47600iZVW30..LHD200904-201511

main82817-47A00iZVW30..TH200904-201511

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47610iZVW30..RHD..(ARL,EUR)200904-201511

main82817-47850iZVW30..LHD200904-201511

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47620iZVW30..TH200904-201511

main82817-47800iZVW30..LHD200904-201112

82821HCOVER, CONNECTOR

main82821-42040iZVW30..ARL,EUR200904-201511

8401

8417

8271247330CLAMP, WIRING HARNESS

main82712-47330

9010506331

main90105-06331

9011906915

main90119-06915

9415180600

main94151-80600

23 parts on this diagram · 15 diagrams in section
