SIDE MOULDING
6701
6705
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
MOON ROOF-WITH(SOLAR PANEL),GRAY,040 ,070 ,1F7 ,4T8
MOON ROOF-WITH(SOLAR PANEL),BLACK,202 ,3R3 ,8T5 ,8V1
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
MOON ROOF-WITH(SOLAR PANEL),GRAY,070 ,1D4 ,8W1
MOON ROOF-WITH(SOLAR PANEL),BLACK,202 ,3R3 ,3R9 ,8S6 ,8T5 ,8V1
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
sub75851-47902
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
sub75852-47901
75867ACLIP, ROCKER PANEL MOULDING
76923BRETAINER, SIDE MUDGUARD
76924HRETAINER, SIDE MUDGUARD, NO.2
9015960500
main90159-60500
90159T0034
main90159-T0034
90159T0036
main90159-T0036
9016240034
main90162-40034
9018306019
main90183-06019
9018904059
main90189-04059
9018906006
main90189-06006
9018906193
main90189-06193

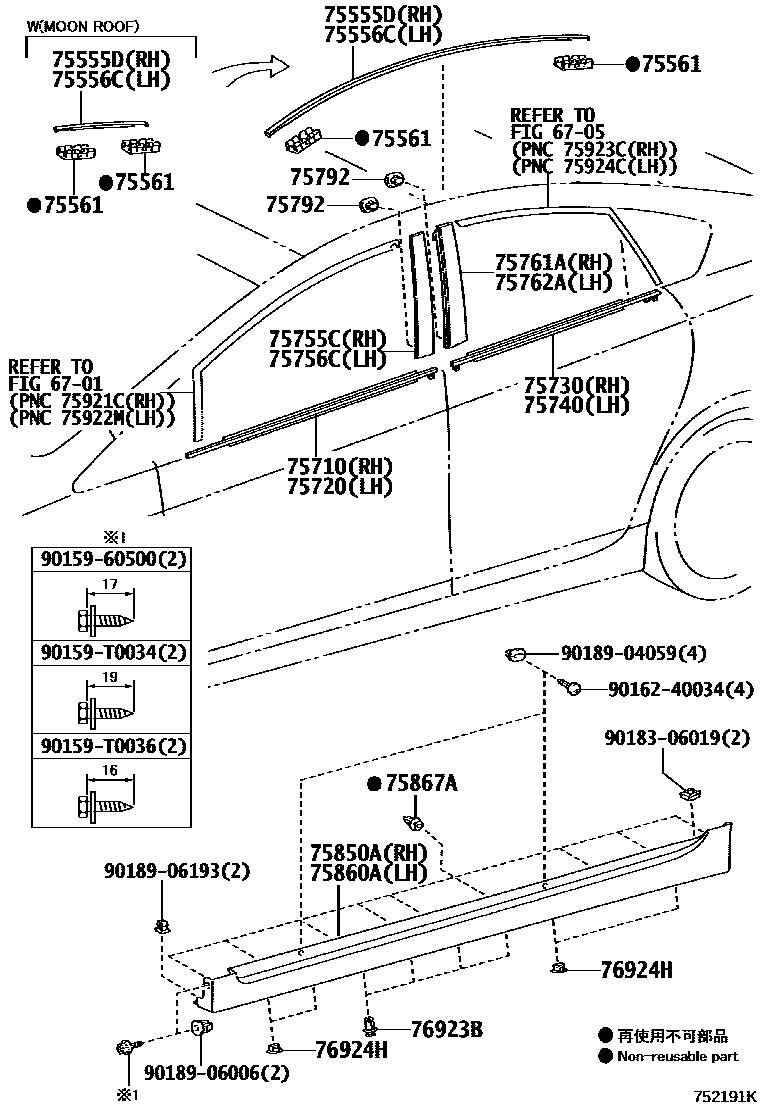

27 parts on this diagram · 1 diagram in section
