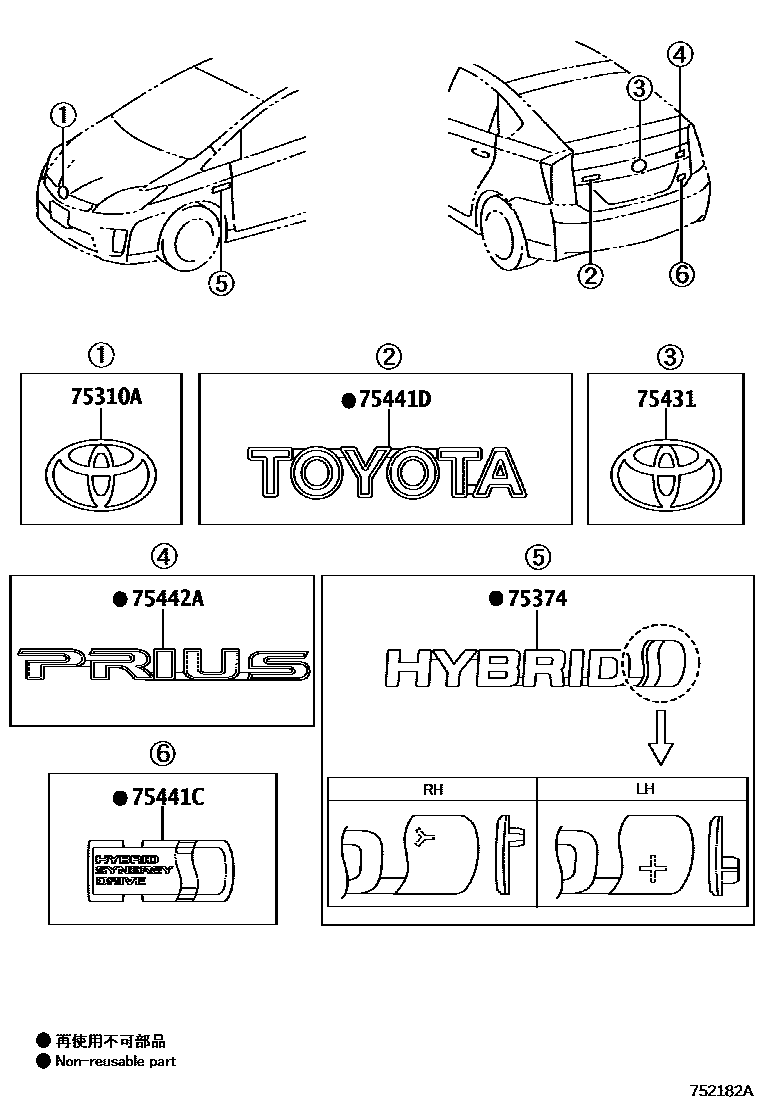

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-47011iZVW30..LHD200904-201001

RUSSIA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)

main53141-47011iZVW30..LHD200904-201001

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)

main53141-47012iZVW30..ARL,EUR201002-201112

RUSSIA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)

sub53141-47011

main53141-47012iZVW30..LHD201002-201511

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)

sub53141-47011

main75310-47010iZVW30..ARL,EUR200904-201511

main75310-47030iZVW30..LHD200904-201511

RUSSIA SPEC

75374EMBLEM, SIDE PANEL

main75374-47050iZVW30200904-201010

RH

sub75374-47051

main75374-47051iZVW30..TH201011-201204

RH

main75374-47060iZVW30200904-201010

LH

sub75374-47061

main75374-47061iZVW30..TH201011-201204

LH

sub75374-47062

main75374-47090iZVW30..LHD200904-201010

RUSSIA SPEC,RH

sub75374-47091

main75374-47091iZVW30..LHD201011-201112

RUSSIA SPEC,RH

main75374-47100iZVW30..LHD200904-201010

RUSSIA SPEC,LH

sub75374-47101

main75374-47101iZVW30..LHD201011-201112

RUSSIA SPEC,LH

sub75374-47102

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75310-47020iZVW30..ARL,EUR200904-201204

main75310-47040iZVW30..LHD200904-201112

RUSSIA SPEC

main75310-47040iZVW30..LHD200904-201112

RUSSIA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)

75441CPLATE, BACK DOOR NAME

main75441-47030iZVW30200904-201010

sub75441-47031

main75441-47031iZVW30..ARL,EUR201011-201204

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75443-47030iZVW30..ARL,EUR200904-201204

TOYOTA

main75443-47040iZVW30..LHD200904-201112

TOYOTA,RUSSIA SPEC

75442APLATE, BACK DOOR NAME, NO.2

main75442-47030iZVW30..TH200904-201204

PRIUS

main75442-47040iZVW30..LHD200904-201112

PRIUS,RUSSIA SPEC

6 parts on this diagram · 1 diagram in section
