EPC Data

REAR SEAT & SEAT TRACK

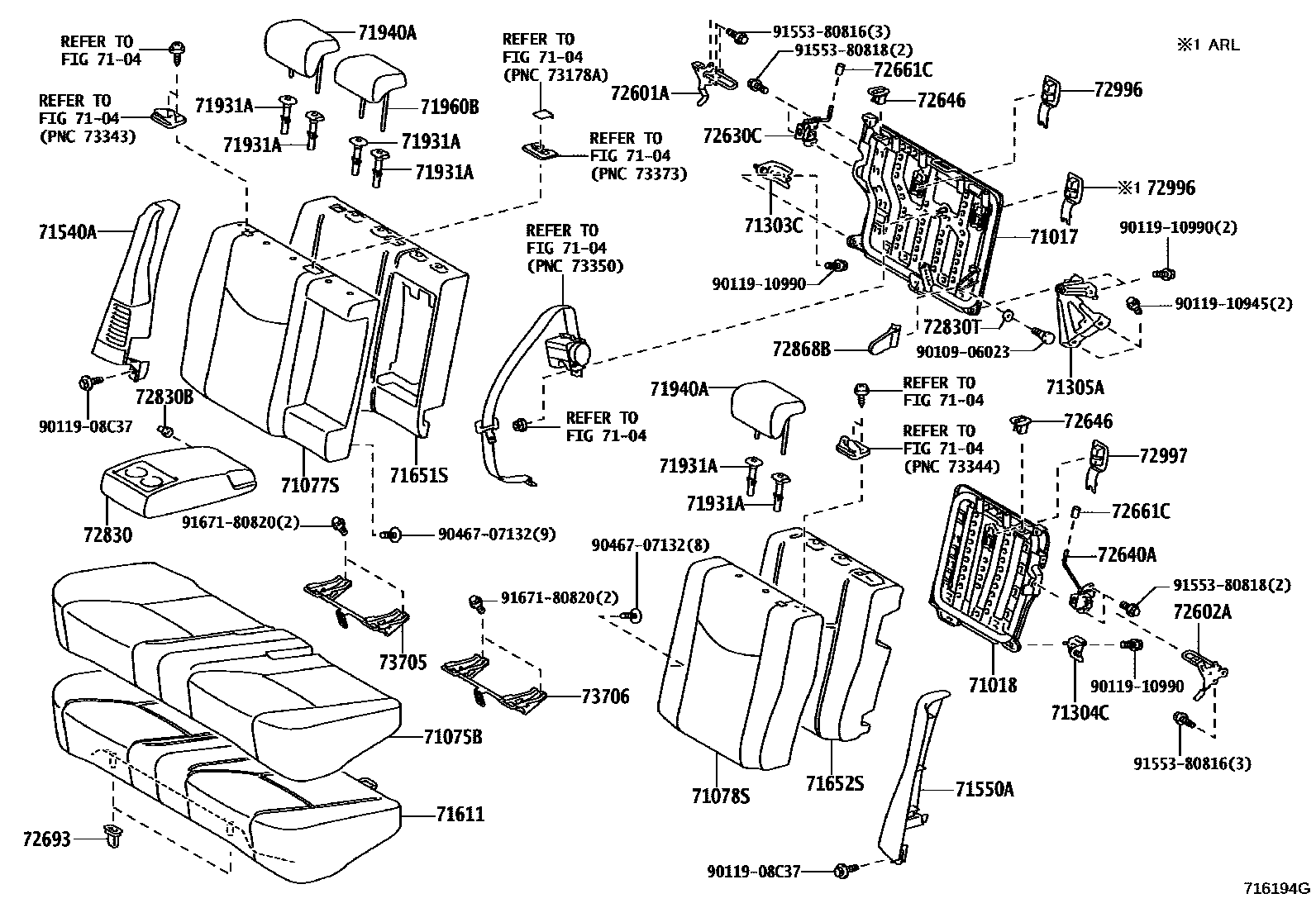

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-47090i¥22,100200904-201204
main71017-47110i200904-201112
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-47050i¥15,900200904-201204
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-0Q030-C2i201204
BLACK,TRIM2#,(L)
main71075-47130-B2i200904-201102
SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1#
sub71075-47130¥41,700
main71075-47130-B2i200904-201102
MD.GRAY,TRIM1#
sub71075-47130¥41,700
main71075-47130-B3i201102-201112
MD.GRAY,TRIM1#
sub71075-47130¥41,700
main71075-47130-B3i201102-201112
SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1#
sub71075-47130¥41,700
main71075-47130-C1i201112-201210
BLACK,TRIM2#
sub71075-47130¥41,700
main71075-47130-C1i201112-201210
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71075-47130¥41,700
main71075-47130-C3i201210-201511
BLACK,TRIM2#
sub71075-47130¥41,700
main71075-47130-C3i201210-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71075-47130¥41,700
main71075-47130-G2i200904-201102
AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47130-G2i200904-201102
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47130-G4i201102-201210
AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47130-G4i201102-201112
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47130-G4i201112-201210
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47130-G5i201210-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47130-G5i201210-201511
AQUA,TRIM6#
sub71075-47130¥41,700
main71075-47140-B1i200904-201203
MD.GRAY,TRIM1#
sub71075-47140¥47,900
sub71075-47141¥47,900
main71075-47140-B2i201102-201204
MD.GRAY,TRIM1#
sub71075-47140¥47,900
sub71075-47141¥47,900
main71075-47140-G1i200904-201102
AQUA,TRIM6#
sub71075-47140¥47,900
sub71075-47141¥47,900
main71075-47140-G2i201102-201112
AQUA,TRIM6#
sub71075-47140¥47,900
sub71075-47141¥47,900
main71075-47210-C3i201112-201210
BLACK,TRIM2#
sub71075-47210¥47,900
main71075-47210-C5i201210-201511
BLACK/BLACK/LT.GRAY,TRIM2#
sub71075-47210¥47,900
main71075-47210-G5i201112-201210
AQUA,TRIM6#
sub71075-47210¥47,900
main71075-47210-G7i201210-201511
AQUA/AQUA/ECRU,TRIM6#
sub71075-47210¥47,900
main71075-47290-C2i201204-201207
BLACK,TRIM2#,(J)
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0Q030-C2i201204
BLACK,TRIM2#,(L)
main71077-47260-B2i200904-201102
MD.GRAY/LT.GRAY,TRIM1#
sub71077-47261
main71077-47260-G2i200904-201102
AQUA/LT.GRAY,TRIM6#
sub71077-47261
main71077-47261-B2i201102-201103
MD.GRAY/LT.GRAY,TRIM1#
sub71077-47261
sub71077-47263
sub71077-47262
main71077-47261-B3i201103-201112
MD.GRAY/LT.GRAY,TRIM1#
sub71077-47261
sub71077-47263
sub71077-47262
main71077-47261-C2i201112-201201
BLACK,TRIM2#
sub71077-47261
sub71077-47263
sub71077-47262
main71077-47261-G2i201102-201103
AQUA/LT.GRAY,TRIM6#
sub71077-47261
sub71077-47263
sub71077-47262
main71077-47261-G3i201103-201201
AQUA/LT.GRAY,TRIM6#
sub71077-47261
sub71077-47263
sub71077-47262
main71077-47262-C2i201201-201210
BLACK,TRIM2#
sub71077-47262
sub71077-47770
main71077-47262-C3i201210-201511
BLACK,TRIM2#
sub71077-47262
sub71077-47770
main71077-47262-G3i201201-201210
AQUA/LT.GRAY,TRIM6#
sub71077-47262
sub71077-47770
main71077-47262-G4i201210-201511
AQUA,TRIM6#
sub71077-47262
sub71077-47770
main71077-47290-B3i200904-201102
MD.GRAY/LT.GRAY,TRIM1#
sub71077-47291¥40,000
main71077-47290-G4i200904-201102
AQUA/LT.GRAY,TRIM6#
sub71077-47291¥40,000
main71077-47291-B3i201012-201203
MD.GRAY/LT.GRAY,TRIM1#
sub71077-47291¥40,000
sub71077-47292¥40,000
main71077-47291-B4i201103-201204
MD.GRAY/LT.GRAY,TRIM1#
sub71077-47291¥40,000
sub71077-47292¥40,000
main71077-47291-G4i201102-201103
AQUA/LT.GRAY,TRIM6#
sub71077-47291¥40,000
sub71077-47292¥40,000
main71077-47291-G5i201103-201112
AQUA/LT.GRAY,TRIM6#
sub71077-47291¥40,000
sub71077-47292¥40,000
main71077-47370-C6i201112-201201
BLACK,TRIM2#
sub71077-47371¥40,000
main71077-47370-G7i201112-201201
AQUA,TRIM6#
sub71077-47371¥40,000
main71077-47371-C6i201201-201210
BLACK,TRIM2#
sub71077-47371¥40,000
main71077-47371-C7i201210-201511
BLACK,TRIM2#
sub71077-47371¥40,000
main71077-47371-G7i201201-201210
AQUA,TRIM6#
sub71077-47371¥40,000
main71077-47371-G8i201210-201511
AQUA,TRIM6#
sub71077-47371¥40,000
main71077-47440-C2i201204-201207
BLACK,TRIM2#,(J)
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-0Q030-C2i201204
BLACK,TRIM2#,(L)
main71078-47160-B2i200904-201102
MD.GRAY/LT.GRAY,TRIM1#
sub71078-47161¥25,500
main71078-47160-B2i200904-201102
SEAT COVER MATERIAL-FABRIC,MD.GRAY/LT.GRAY,TRIM1#
sub71078-47161¥25,500
main71078-47160-G3i200904-201102
AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
main71078-47160-G3i200904-201102
SEAT COVER MATERIAL-FABRIC,AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
main71078-47161-B2i201102-201103
MD.GRAY/LT.GRAY,TRIM1#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-B2i201102-201103
SEAT COVER MATERIAL-FABRIC,MD.GRAY/LT.GRAY,TRIM1#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-B3i201103-201112
SEAT COVER MATERIAL-FABRIC,MD.GRAY/LT.GRAY,TRIM1#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-B3i201103-201112
MD.GRAY/LT.GRAY,TRIM1#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-C2i201112-201210
BLACK,TRIM2#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-C2i201112-201210
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-C4i201210-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-C4i201210-201511
BLACK,TRIM2#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G3i201102-201103
AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G3i201102-201103
SEAT COVER MATERIAL-FABRIC,AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G4i201103-201112
SEAT COVER MATERIAL-FABRIC,AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G4i201103-201210
AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G4i201112-201210
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA/LT.GRAY,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G6i201210-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47161-G6i201210-201511
AQUA,TRIM6#
sub71078-47161¥25,500
sub71078-47162¥25,500
main71078-47180-B2i200904-201102
MD.GRAY/LT.GRAY,TRIM1#
sub71078-47181¥29,500
main71078-47180-G3i200904-201102
AQUA/LT.GRAY,TRIM6#
sub71078-47181¥29,500
main71078-47181-B2i201012-201203
MD.GRAY/LT.GRAY,TRIM1#
sub71078-47181¥29,500
sub71078-47182¥29,500
main71078-47181-B3i201103-201204
MD.GRAY/LT.GRAY,TRIM1#
sub71078-47181¥29,500
sub71078-47182¥29,500
main71078-47181-G3i201102-201103
AQUA/LT.GRAY,TRIM6#
sub71078-47181¥29,500
sub71078-47182¥29,500
main71078-47181-G4i201103-201112
AQUA/LT.GRAY,TRIM6#
sub71078-47181¥29,500
sub71078-47182¥29,500
main71078-47240-C6i201112-201210
BLACK,TRIM2#
sub71078-47240¥29,500
main71078-47240-C7i201210-201511
BLACK,TRIM2#
sub71078-47240¥29,500
main71078-47240-G6i201112-201210
AQUA,TRIM6#
sub71078-47240¥29,500
main71078-47240-G7i201210-201511
AQUA,TRIM6#
sub71078-47240¥29,500
main71078-47280-C2i201204-201207
BLACK,TRIM2#,(J)
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-47020i¥2,490200904-201204
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-47020i¥2,070200904-201204
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-47030i¥6,100200904-201204
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-47040-B2i200904-201112
MD.GRAY,TRIM1#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-B2i200904-201112
SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-C3i201112-201504
BLACK,TRIM2#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-C3i201112-201504
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-G1i200904-201112
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-G1i200904-201112
AQUA,TRIM6#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-G3i201112-201504
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47040-G3i201112-201504
AQUA,TRIM6#
sub71540-47040¥19,000
sub71540-47041¥19,000
main71540-47041-C3i201505-201511
BLACK,TRIM2#
main71540-47041-C3i201505-201511
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main71540-47041-G3i201505-201511
AQUA,TRIM6#
main71540-47041-G3i201505-201511
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
main71540-47050-B2i200904-201204
MD.GRAY,TRIM1#
sub71540-47110¥21,100
main71540-47050-G3i200904-201112
AQUA,TRIM6#
sub71540-47110¥21,100
main71540-47061-C7i201112-201504
BLACK,TRIM2#
sub71540-47062¥28,300
sub71540-47063¥28,300
main71540-47061-C7i201112-201504
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),BLACK,TRIM2#
sub71540-47062¥28,300
sub71540-47063¥28,300
main71540-47061-G9i201112-201504
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),AQUA,TRIM6#
sub71540-47062¥28,300
sub71540-47063¥28,300
main71540-47061-G9i201112-201504
AQUA,TRIM6#
sub71540-47062¥28,300
sub71540-47063¥28,300
main71540-47062-C7i201505-201511
BLACK,TRIM2#
main71540-47062-C7i201505-201511
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),BLACK,TRIM2#
main71540-47062-G9i201505-201511
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),AQUA,TRIM6#
main71540-47062-G9i201505-201511
AQUA,TRIM6#
main71540-47090-C1i201204-201506
BLACK,TRIM2#
sub71540-47091
main71540-47091-C1i201507
BLACK,TRIM2#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-47040-B2i200904-201112
SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1#
sub71550-47040¥19,000
main71550-47040-B2i200904-201112
MD.GRAY,TRIM1#
sub71550-47040¥19,000
main71550-47040-C3i201112-201511
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71550-47040¥19,000
main71550-47040-C3i201112-201511
BLACK,TRIM2#
sub71550-47040¥19,000
main71550-47040-G1i200904-201112
AQUA,TRIM6#
sub71550-47040¥19,000
main71550-47040-G1i200904-201112
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71550-47040¥19,000
main71550-47040-G3i201112-201511
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71550-47040¥19,000
main71550-47040-G3i201112-201511
AQUA,TRIM6#
sub71550-47040¥19,000
main71550-47050-B2i200904-201204
MD.GRAY,TRIM1#
sub71550-47051¥21,100
main71550-47050-G3i200904-201112
AQUA,TRIM6#
sub71550-47051¥21,100
main71550-47061-C7i201112-201511
BLACK,TRIM2#
sub71550-47062¥28,300
main71550-47061-C7i201112-201511
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),BLACK,TRIM2#
sub71550-47062¥28,300
main71550-47061-G9i201112-201511
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH),AQUA,TRIM6#
sub71550-47062¥28,300
main71550-47061-G9i201112-201511
AQUA,TRIM6#
sub71550-47062¥28,300
main71550-47090-C1i201204
BLACK,TRIM2#
71611PAD, REAR SEAT CUSHION
main71503-0Q020i201204-201510
(L)
main71503-47050i¥35,600200904-201004
sub71503-47051¥35,600
main71503-47051i¥35,600201204-201207
(J)
main71503-47051i¥35,600201005-201511
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-0Q020i201204
(L)
main71651-47120i¥18,200200904-201204
main71651-47120i¥18,200201204-201207
(J)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-0Q020i201204
(L)
main71652-47060i¥13,200200904-201204
main71652-47060i¥13,200201204-201207
(J)
71931ASUPPORT, REAR SEAT HEADREST
main71930-47020-B0i200904-201204
W(LOCK),MD.GRAY,TRIM1#
sub71930-47020¥1,040
main71930-47020-C0i201112-201511
W(LOCK),BLACK,TRIM2#
sub71930-47020¥1,040
main71930-47020-G0i200904-201511
W(LOCK),AQUA,TRIM6#
sub71930-47020¥1,040
main71931-47020-B0i200904-201204
W/O(LOCK),MD.GRAY,TRIM1#
sub71931-47020¥630
main71931-47020-C0i201112-201511
W/O(LOCK),BLACK,TRIM2#
sub71931-47020¥630
main71931-47020-G0i200904-201511
W/O(LOCK),AQUA,TRIM6#
sub71931-47020¥630
71940AHEADREST ASSY, REAR SEAT
main71940-0Q030-C2i201204
BLACK,TRIM2#,(L)
main71940-47120-B1i200904-201112
SEAT COVER MATERIAL-FABRIC,MD.GARY,TRIM1#
main71940-47120-B1i200904-201112
MD.GARY,TRIM1#
main71940-47120-C0i201112-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main71940-47120-C0i201112-201511
BLACK,TRIM2#
main71940-47120-G1i201112-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
main71940-47120-G1i200904-201511
AQUA,TRIM6#
main71940-47120-G1i200904-201112
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
main71940-47140-B3i200904-201204
MD.GRAY,TRIM1#
main71940-47140-G3i200904-201112
AQUA,TRIM6#
main71940-47300-C5i201112-201511
BLACK/LT.GRAY,TRIM2#
main71940-47300-G7i201112-201511
AQUA,TRIM6#
main71940-47340-C2i201204-201207
BLACK,TRIM2#,(J)
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-0Q030-C2i201204
BLACK,TRIM2#,(L)
main71960-47070-B1i200904-201112
SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1#
sub71960-47070¥22,100
main71960-47070-B1i200904-201112
MD.GRAY,TRIM1#
sub71960-47070¥22,100
main71960-47070-C1i201112-201511
BLACK,TRIM2#
sub71960-47070¥22,100
main71960-47070-C1i201112-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
sub71960-47070¥22,100
main71960-47070-G1i200904-201112
AQUA,TRIM6#
sub71960-47070¥22,100
main71960-47070-G1i200904-201112
SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71960-47070¥22,100
main71960-47070-G2i201112-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#
sub71960-47070¥22,100
main71960-47070-G2i201112-201511
AQUA,TRIM6#
sub71960-47070¥22,100
main71960-47080-B3i200904-201204
MD.GRAY,TRIM1#
main71960-47080-G3i200904-201112
AQUA,TRIM6#
main71960-47160-C5i201112-201210
BLACK/LT.GRAY,TRIM2#
sub71960-47160¥22,100
main71960-47160-C9i201210-201511
BLACK/LT.GRAY,TRIM2#
sub71960-47160¥22,100
main71960-47160-G7i201112-201210
AQUA,TRIM6#
sub71960-47160¥22,100
main71960-47160-G9i201210-201511
AQUA/ECRU,TRIM6#
sub71960-47160¥22,100
main71960-47200-C2i201204-201207
BLACK,TRIM2#,(J)
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
main72601-47030i¥3,760200904-201204
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
main72602-47020i¥3,760200904-201204
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-47030i¥2,960200904-201203
sub72630-47031¥2,960
main72630-47031i¥2,960201203-201204
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-47030i¥2,960200904-201203
sub72640-47031¥2,960
main72640-47031i¥2,960201203-201204
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-47010-B0i200904-201204
MD.GRAY,TRIM1#
main72646-47010-C0i201112-201511
BLACK,TRIM2#
main72646-47010-G0i200904-201511
AQUA,TRIM6#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-13030-B7i200904-201204
MD.GRAY,TRIM1#
sub72661-13030¥460
main72661-13030-C0i201112-201511
BLACK,TRIM2#
sub72661-13030¥460
main72661-13030-G1i200904-201511
AQUA,TRIM6#
sub72661-13030¥460
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i¥220200904-201204
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-0Q030-C1i201204
BLACK,TRIM2#,(L)
main72830-47080-B1i200904-201112
SEAT COVER MATERIAL-FABRIC,MD.GRAY,TRIM1#
main72830-47080-B1i200904-201112
MD.GRAY,TRIM1#
main72830-47080-C0i201112-201511
BLACK,TRIM2#
main72830-47080-C0i201112-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main72830-47080-G1i200904-201511
AQUQ,TRIM6#
main72830-47080-G1i200904-201112
SEAT COVER MATERIAL-FABRIC,AQUQ,TRIM6#
main72830-47080-G1i201112-201511
EXPORT SIMPLE PACKAGE&SEAT COVER MATERIAL-FABRIC,AQUQ,TRIM6#
main72830-47090-B2i200904-201204
MD.GRAY,TRIM1#
sub72830-47091¥38,800
main72830-47090-G2i200904-201112
AQUA,TRIM6#
sub72830-47091¥38,800
main72830-47170-C2i201112-201511
BLACK,TRIM2#
main72830-47170-G4i201112-201511
AQUA,TRIM6#
main72830-47200-C1i201204-201207
BLACK,TRIM2#,(J)
72830BBUSH(FOR REAR SEAT CENTER ARMREST)
main72622-47010i¥100200904-201204
72830TBUSH (FOR REAR SEAT CENTER ARMREST)
main72622-47020i¥110200904-201204
72868BCOVER, CENTER ARMREST HINGE
main72868-47020-B0i200904-201204
MD.GRAY,TRIM1#
main72868-47020-C0i201112-201511
BLACK,TRIM2#
main72868-47020-G0i200904-201511
AQUA,TRIM6#
72996COVER, REAR SEATBACK, RH
main72996-47030-B0i201112-201511
LT.GRAY,TRIM1#,2#,6#
main72996-47030-B0i201204
LT.GRAY,TRIM2#,6#
main72996-47030-B0i200904-201112
LT.GRAY,TRIM1#,6#
main72996-47030-B0i201012-201204
LT.GRAY,TRIM1#
72997COVER, REAR SEATBACK, LH
main72996-47030-B0i200904-201112
LT.GRAY,TRIM1#,6#
main72996-47030-B0i201012-201204
LT.GRAY,TRIM1#
main72996-47030-B0i201112-201511
LT.GRAY,TRIM1#,2#,6#
main72996-47030-B0i201204
LT.GRAY,TRIM2#,6#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-47040i¥2,650200904-201204
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-47050i¥2,650200904-201204
9010906023
main90109-06023¥110
9011908C37
main90119-08C37¥80
9011910945
main90119-10945¥80
9011910990
main90119-10990¥100
9046707132
main90467-07132¥90
9155380816
main91553-80816¥80
9155380818
main91553-80818¥80
9167180820
main91671-80820¥80

40 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
