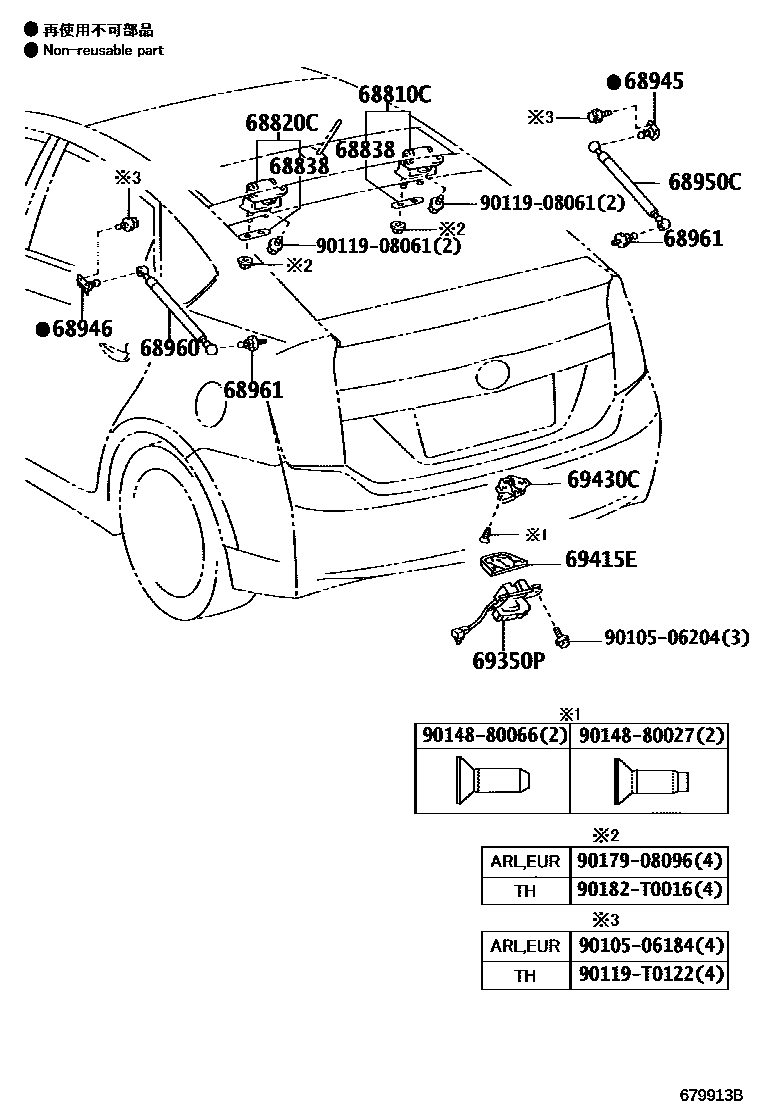

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iZVW30..ARL,EUR200904-201204

sub68810-47011

68820CHINGE ASSY, BACK DOOR, LH

main68810-47010iZVW30..ARL,EUR200904-201204

sub68810-47011

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iZVW30..ARL,EUR200904-201204

T=2.0

main68838-44020iZVW30..ARL,EUR200904-201204

T=1.0

main68838-52020iZVW30..TH200904-201204

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47010iZVW30..ARL,EUR200904-201204

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-47010iZVW30..ARL,EUR200904-201204

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W540iZVW30200904-201011

sub68950-0W541

main68950-0W541iZVW30..ARL,EUR201012-201204

sub68950-0W542

main68950-0W542iZVW30..TH201204

68960STAY ASSY, BACK DOOR, LH

main68960-0W530iZVW30200904-201011

sub68960-0W531

main68960-0W531iZVW30..ARL,EUR201012-201204

sub68960-0W532

main68960-0W532iZVW30..ARL,EUR201204

68961BOLT, BACK DOOR STAY

main68961-20140iZVW30..TH200904-201204

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47020iZVW30..TH200904-201112

sub69350-47040

main69350-47030iZVW30..TH201104-201509

sub69350-47031

main69350-47040iZVW30..ARL,EUR201209-201510

sub69350-47041

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47020iZVW30..TH200904-201204

69430CSTRIKER ASSY, BACK DOOR LOCK

main69431-47010iZVW30..ARL,EUR200904-201204

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

90119T0122

main90119-T0122

9014880027

main90148-80027

9014880066

main90148-80066

9017908096

main90179-08096

90182T0016

main90182-T0016

19 parts on this diagram · 1 diagram in section
