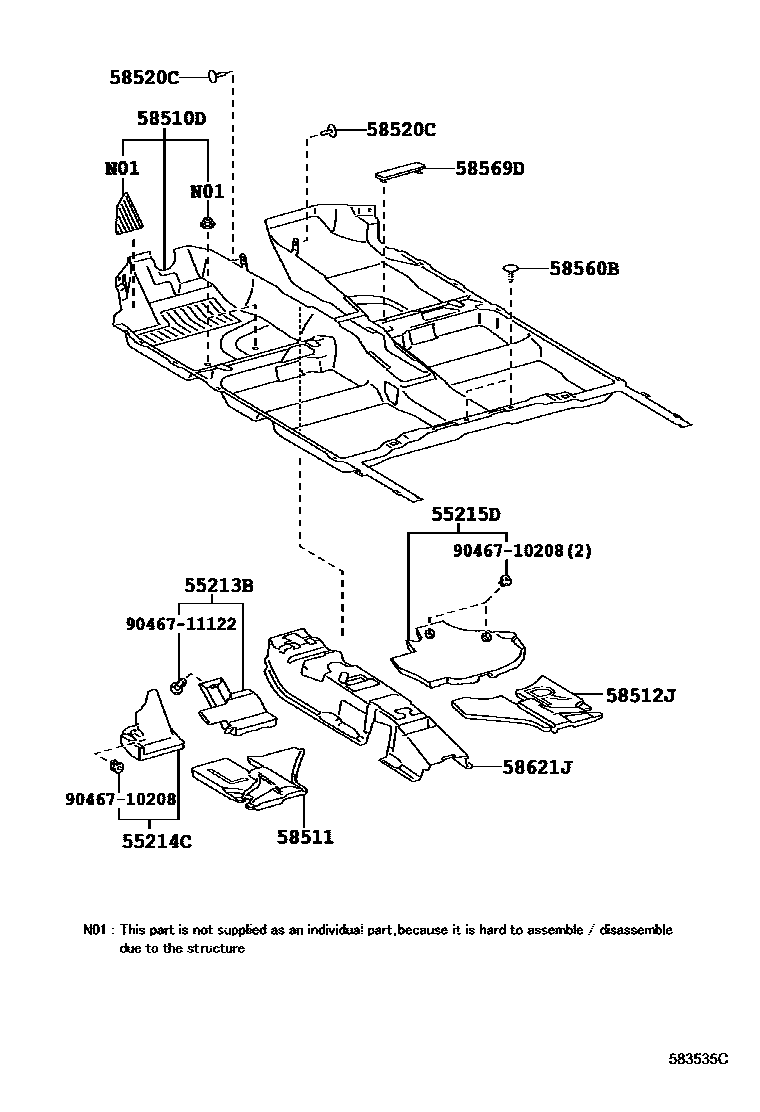

MAT & CARPET

0001 1 0002 1 0003 1 0004 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-21040iZVW30..LHD201112

main55213-47080iZVW30..LHD200904-201112

main55213-47090iZVW30..TH¥2,240200904-201112

main55213-47110iZVW30..RHD..(ARL,EUR)¥3,170201112-201204

sub55213-47120¥2,140

main55213-47120iZVW30..RHD..(ARL,EUR)¥2,140201112

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47030iZVW30..LHD200904-201310

main55214-47040iZVW30..TH¥1,670200904-201204

main55214-47050iZVW30..LHD201310

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47030iZVW30..LHD200904-201104

main55215-47040iZVW30..RHD..(ARL,EUR)¥3,370200904-201204

main55215-47050iZVW30..LHD201105-201112

58510DCARPET ASSY, FLOOR, FRONT

main58510-47220-B1iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main58510-47220-G1iZVW30..LHD200904-201112

AQUA,TRIM6#

main58510-47221-B2iZVW30..LHD201112-201310

DK. GREY,TRIM2#,6#

main58510-47230-B1iZVW30..RHD..(ARL,EUR)200904-201112

MD.GRAY,TRIM1#

main58510-47230-G1iZVW30..RHD..(ARL,EUR)200904-201112

AQUA,TRIM6#

main58510-47231-B1iZVW30..TH201112-201204

MD.GRAY,TRIM1#

main58510-47231-B2iZVW30..TH201112-201511

DK. GREY,TRIM2#,6#

main58510-47460-B0iZVW30..LHD201310-201511

DK. GREY,TRIM2#,6#

58511MAT, FLOOR, FRONT

main58511-12620iZVW30..TH¥2,500200904-201305

sub58511-12621¥1,730

main58511-12621iZVW30..TH¥1,730201305

58512JMAT, FLOOR, NO.2

main58512-12200iZVW30..ARL,EUR¥2,530200904-201305

sub58512-12201¥1,760

main58512-12201iZVW30..TH¥1,760201305

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2iZVW30..TH201102-201511

DK.GRAY

sub90467-05164¥110

main90467-05164-C0iZVW30..TH200904-201511

BLACK

sub90467-05164¥110

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-07049-B7iZVW30..ARL,EUR201012-201511

DK.GRAY

sub90467-07049¥90

main90467-07049-E5iZVW30..ARL,EUR200904-201511

GREGE

sub90467-07049¥90

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B2iZVW30..TH200904-201204

MD.GRAY,TRIM1#

main58569-12010-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#,6#

main58569-12010-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47020iZVW30..ARL,EUR¥5,400200904-201204

9046710208

main90467-10208¥90

9046711122

main90467-11122¥100

12 parts on this diagram · 4 diagrams in section
