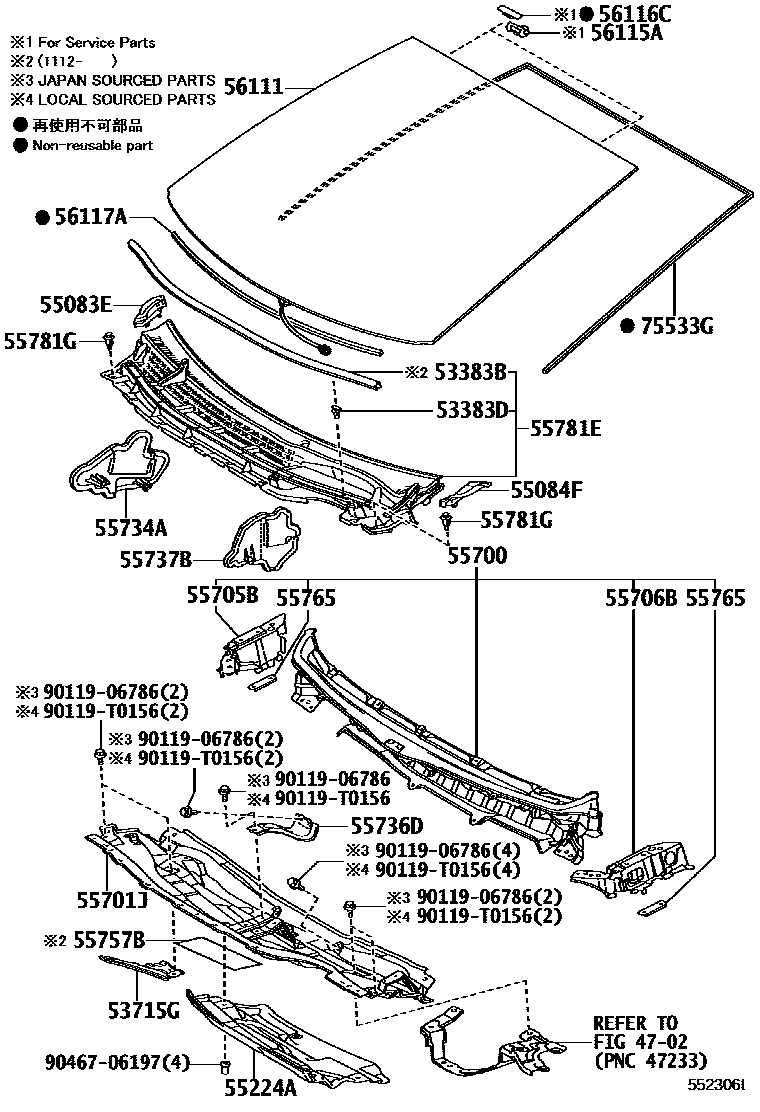

COWL PANEL & WINDSHIELD GLASS
4702
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
55083EVENTILATOR SUB-ASSY, COWL SIDE, RH
55084FVENTILATOR SUB-ASSY, COWL SIDE, LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700PANEL ASSY, FRONT
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55757BSHEET COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
sub90467-A0016
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-47920
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-47920
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER
sub56101-47920
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
sub56101-47920
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
sub56101-47920
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
sub56101-4E906
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER
sub56101-4E906
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-4E906
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
sub56101-4E906
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-4E906
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-4E909
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
sub56101-4E909
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL8SPEAKER
sub56101-4F939
*LAM,T=4.56,GREEN,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56101-4F939
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1227,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
L=1227,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AV,BLUETOOTH,8SPEAKER
L=1227,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAK
L=1227,EUROPE SUPERLATIVE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN,BLUETOOTH,8SPEAKER
L=1227,EUROPE SUPERLATIVE PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
L=1227,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER
L=1227,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER
L=1227,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
L=1227,EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL8SPEAKER
L=1227,EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
L=1227,EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR RUSSIA)*BT USB JBL 8SPEAKER
L=1227,EUROPE SUPERLATIVE PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
L=1227,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
L=1227,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
90119T0156
9046706197
26 parts on this diagram · 2 diagrams in section
