FRONT SPRING & SHOCK ABSORBER

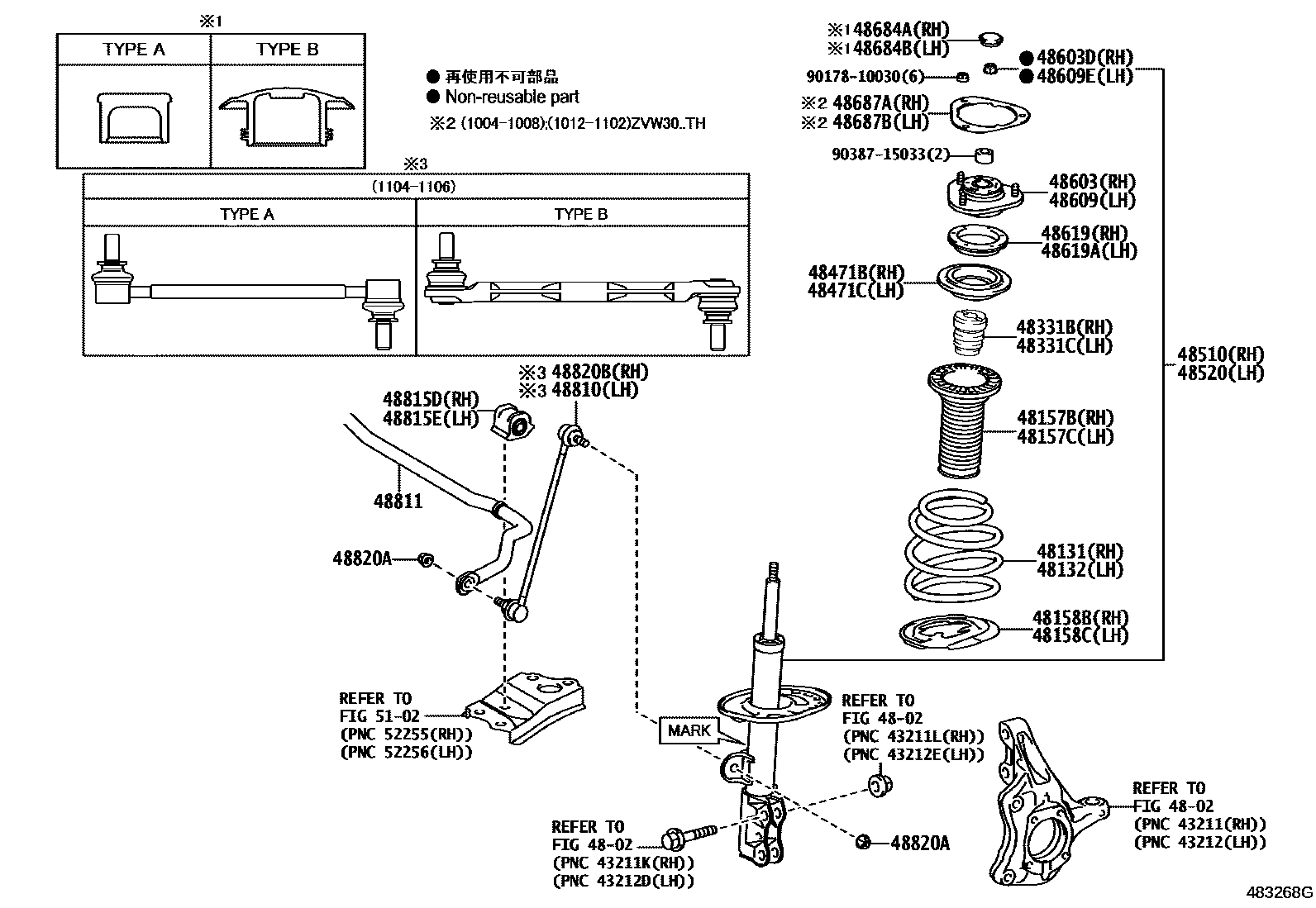

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-47120i200904-200909
TAIWAN SPEC
main48131-47120i200904-200909
PHILIPPINE SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47130i200904-201112
main48131-47140i200904-201204
main48131-47150i200904-201112
PHILIPPINE SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i200904-201112
TAIWAN SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i200904-201112
ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i201001-201112
INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i201001-201112
INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL INDIA
main48131-47150i201112
ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY
main48131-47150i201112
INDIA SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA
main48131-47150i201207
BRAZIL SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY
48132SPRING, FRONT COIL, LH
main48131-47120i200904-200909
PHILIPPINE SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47120i200904-200909
TAIWAN SPEC
main48131-47130i200904-201112
main48131-47140i200904-201204
main48131-47150i200904-201112
ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i200904-201112
PHILIPPINE SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i200904-201112
TAIWAN SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i201001-201112
INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES
main48131-47150i201001-201112
INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL INDIA
main48131-47150i201112
ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY
main48131-47150i201112
INDIA SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA
main48131-47150i201207
BRAZIL SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-47020i200904-201204
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-47020i200904-201204
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-12040i200904-201204
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-12040i200904-201204
48331BBUMPER, FRONT SPRING, RH
main48331-21030i201004-201204
main48331-75010i200904-201003
sub48331-21030
48331CBUMPER, FRONT SPRING, LH
main48331-21030i201004-201204
main48331-75010i200904-201003
sub48331-21030
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-42010i200904-201204
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-42010i200904-201204
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80488i200904-201011
MARK 48510-47090,REFER TO ILLUST.
sub48510-80542
main48510-80490i201001-201112
MARK 48510-47110,INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL INDIA,REFER TOILLUST.
main48510-80490i200904-201112
MARK 48510-47110,PHILIPPINE SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R156J GENERAL COUNTRIES,REFER TO ILLUST.
main48510-80490i200904-201112
MARK 48510-47110,TAIWAN SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,REFER TO ILLUST.
main48510-80490i200904-201112
MARK 48510-47110,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,REFER TO ILLUST.
main48510-80490i201001-201112
MARK 48510-47110,INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,REFERTO ILLUST.
main48510-80490i201112-201310
MARK 48510-47110,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
main48510-80490i201112-201310
MARK 48510-47110,INDIA SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA,REFER TO ILLUST.
main48510-80490i201207-201310
MARK 48510-47110,BRAZIL SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
main48510-80542i201011-201204
MARK 48510-47091,REFER TO ILLUST.
main48510-80574i201112-201510
MARK 48510-47140,REFER TO ILLUST.
sub48510-80542
main48510-80667i201310-201511
MARK 48510-47141,REFER TO ILLUST.
sub48510-80575
main48510-80668i201310-201511
MARK 48510-47111,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
sub48510-80575
main48510-80668i201310-201511
MARK 48510-47111,INDIA SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA,REFER TO ILLUST.
sub48510-80575
main48510-80668i201310-201511
MARK 48510-47111,BRAZIL SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
sub48510-80575
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-80228i200904-201011
MARK 48520-47090,REFER TO ILLUST.
sub48520-80265
main48520-80230i200904-201112
MARK 48520-47110,PHILIPPINE SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R156J GENERAL COUNTRIES,REFER TO ILLUST.
main48520-80230i200904-201112
MARK 48520-47110,TAIWAN SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,REFER TO ILLUST.
main48520-80230i200904-201112
MARK 48520-47110,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,REFER TO ILLUST.
main48520-80230i201001-201112
MARK 48520-47110,INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,REFERTO ILLUST.
main48520-80230i201001-201112
MARK 48520-47110,INDIA SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL INDIA,REFER TOILLUST.
main48520-80230i201112-201310
MARK 48520-47110,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
main48520-80230i201112-201310
MARK 48520-47110,INDIA SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA,REFER TO ILLUST.
main48520-80230i201207-201310
MARK 48520-47110,BRAZIL SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
main48520-80265i201011-201204
MARK 48520-47091,REFER TO ILLUST.
main48520-80294i201112-201510
MARK 48520-47140,REFER TO ILLUST.
sub48520-80265
main48520-80368i201310-201511
MARK 48520-47141,REFER TO ILLUST.
sub48520-80295
main48520-80369i201310-201511
MARK 48520-47111,INDIA SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA,REFER TO ILLUST.
sub48520-80295
main48520-80369i201310-201511
MARK 48520-47111,BRAZIL SPEC&ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
sub48520-80295
main48520-80369i201310-201511
MARK 48520-47111,ROUGH ROAD AREA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,REFER TO ILLUST.
sub48520-80295
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-47030i200904-201204
main48609-47031i201004-201101
sub48609-72010
main48609-47040i201112
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90177-14005i200904-201204
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-47030i200904-201204
main48609-47031i201004-201101
sub48609-72010
main48609-47040i201112
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90177-14005i200904-201204
48619BEARING, STRUT MOUNTING, RH
main48619-28010i200904-201204
48619ABEARING, STRUT MOUNTING, LH
main48619-28010i200904-201204
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-42010i201012-201204
TYPE A:REFER ILLUST.
main48684-42020i200904-201101
main48684-42020i201012-201204
TYPE B:REFER ILLUST.
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-42010i201012-201204
TYPE A:REFER ILLUST.
main48684-42020i201012-201204
TYPE B:REFER ILLUST.
main48684-42020i200904-201101
48687APLATE, FRONT SUSPENSION SUPPORT, RH
main48687-28010i201004-201102
48687BPLATE, FRONT SUSPENSION SUPPORT, LH
main48687-28010i201004-201102
48810LINK ASSY, FRONT STABILIZER, LH
main48820-42030i201104-201106
TYPE A:REFER ILLUST.
main48820-47020i200904-201204
main48820-47020i201104-201106
TYPE B:REFER ILLUST.
48811BAR, STABILIZER, FRONT
main48811-47060i200904-201204
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-47030i200904-201204
main48815-75020i200904-201112
RUSSIA SPEC
48815EBUSH, FRONT STABILIZER BAR, LH
main48815-47020i200904-201204
main48815-75010i200904-201112
RUSSIA SPEC
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-12151i200904-201204
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-42030i201104-201106
TYPE A:REFER ILLUST.
main48820-47020i200904-201204
main48820-47020i201104-201106
TYPE B:REFER ILLUST.
5102
9017810030
main90178-10030
9038715033
main90387-15033

32 parts on this diagram · 1 diagram in section
