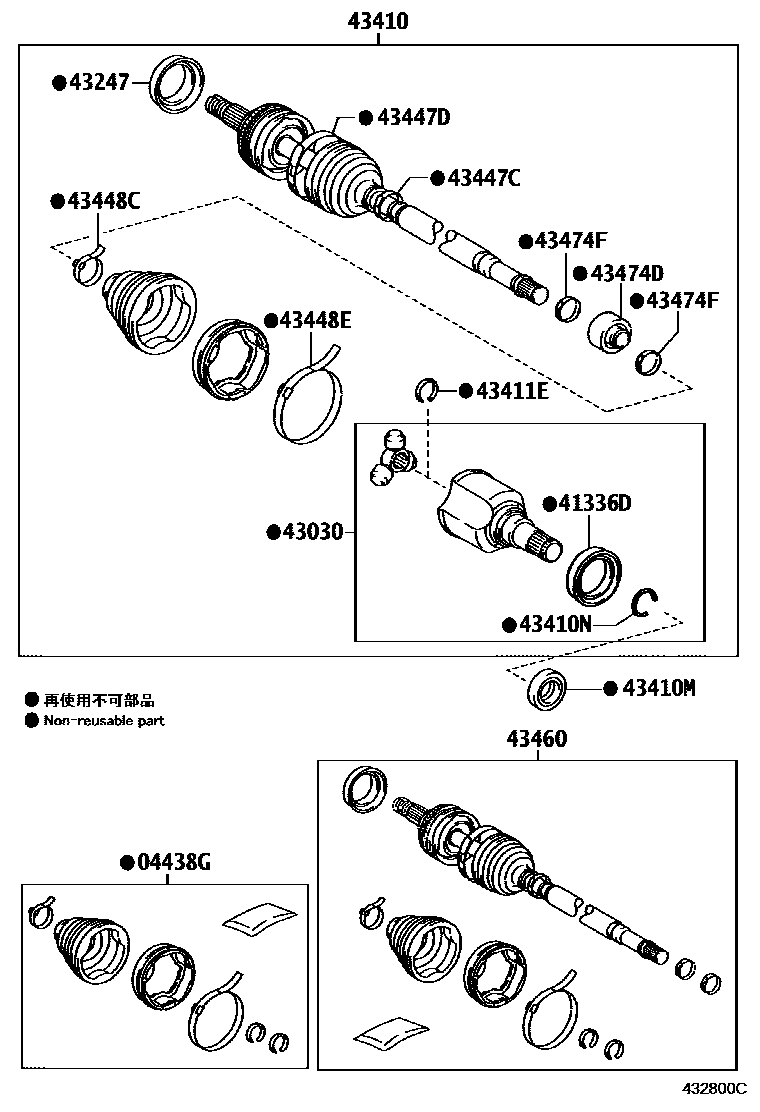

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47030iZVW30200904-201002

sub04437-47031

main04437-47031iZVW30..TH201003-201509

sub04437-47032

main04437-47032iZVW30..TH201509-201511

sub04437-47033

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZVW30..ARL,EUR200904-201204

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZVW30..TH200904-201511

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZVW30..ARL,EUR200904-201511

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47030iZVW30..ARL,EUR200904-201412

sub43410-47031

main43410-47031iZVW30..TH201412-201510

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40031iZVW30..TH200904-201107

main90311-40037iZVW30..TH201108-201510

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iZVW30..TH200904-201204

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZVW30..ARL,EUR200904-201204

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZVW30..TH200904-201204

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZVW30..ARL,EUR200904-201204

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZVW30..ARL,EUR200904-201204

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZVW30..ARL,EUR200904-201204

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49405iZVW30200904-201003

sub43460-49406

main43460-49406iZVW30..TH201003-201501

sub43460-49407

main43460-49407iZVW30..ARL,EUR201412-201509

sub43460-49408

main43460-49408iZVW30..ARL,EUR201509-201511

sub43460-49435

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZVW30..ARL,EUR200904-201204

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iZVW30..ARL,EUR200904-201204

15 parts on this diagram · 3 diagrams in section
