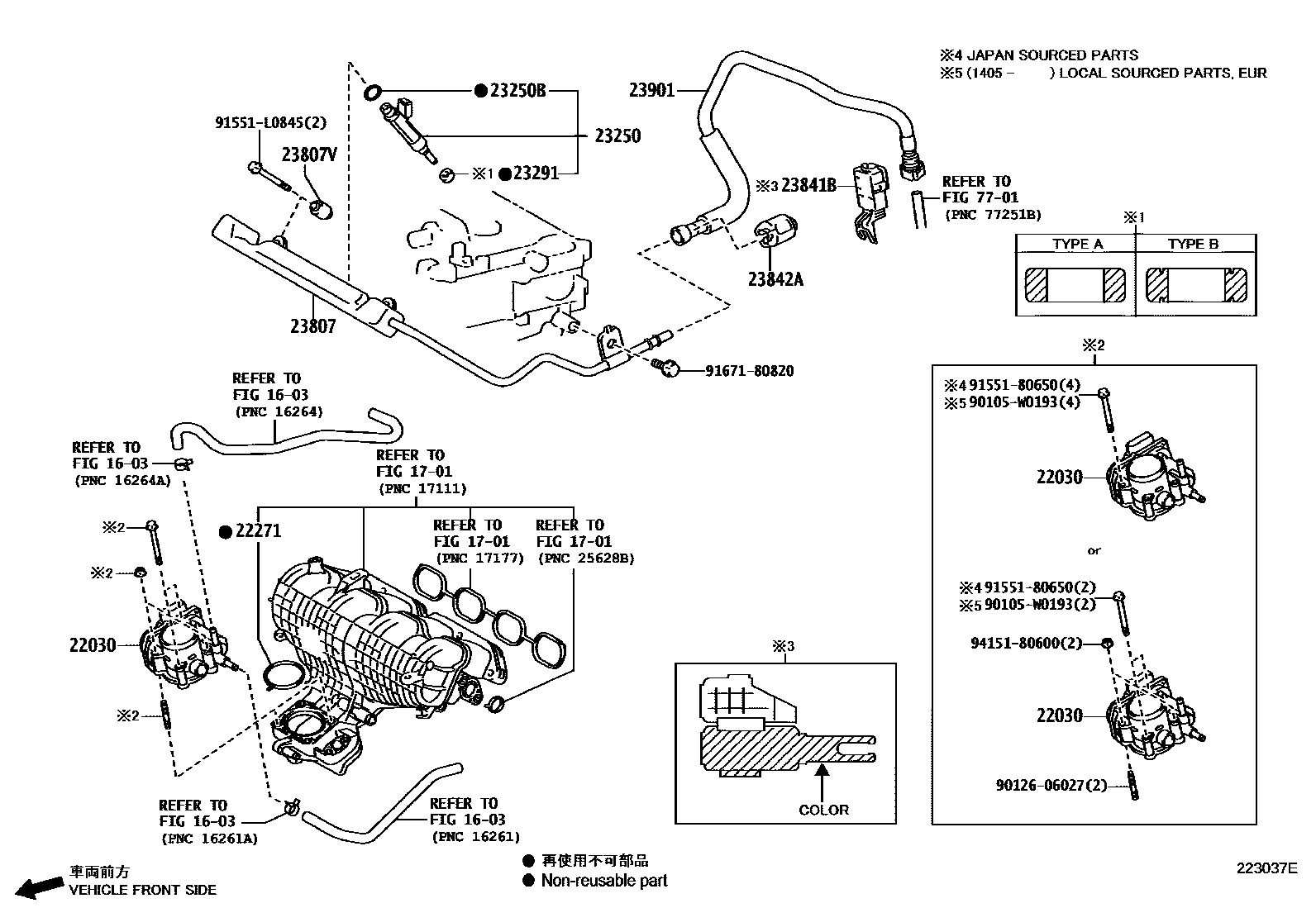

FUEL INJECTION SYSTEM

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37060i2ZRFXE..ZVW30..ARL,EUR200904-201511

22271GASKET, THROTTLE BODY

main22271-37010i2ZRFXE..ZVW30..TH200904-201204

23250INJECTOR ASSY, FUEL

main23209-39146i2ZRFXE..ZVW30..ARL,EUR200904-201511

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFXE..ZVW30..ARL,EUR200904-201204

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK)

main23291-23010i2ZRFXE..ZVW30..TH201001-201204

TYPE A:REFER ILLUST.

main23291-28020i2ZRFXE..ZVW30..TH200904-201204

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37060i2ZRFXE..ZVW30..ARL,EUR200904-201108

sub23814-37061

main23814-37061i2ZRFXE..ZVW30..ARL,EUR201108-201204

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i2ZRFXE..ZVW30..ARL,EUR200904-201204

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2ZRFXE..ZVW30..ARL,EUR200904-201301

main23841-21040i2ZRFXE..ZVW30..ARL,EUR201208-201303

COLOR : GRAY

main23841-37090i2ZRFXE..ZVW30..TH201302-201510

main23841-37090i2ZRFXE..ZVW30..ARL,EUR201208-201511

COLOR : BLACK

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZRFXE..ZVW30..TH200904-201204

23901TUBE SUB-ASSY, FUEL

main23901-37100i2ZRFXE..ZVW30..ARL,EUR200904-201511

7701

90105W0193

main90105-W0193

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
