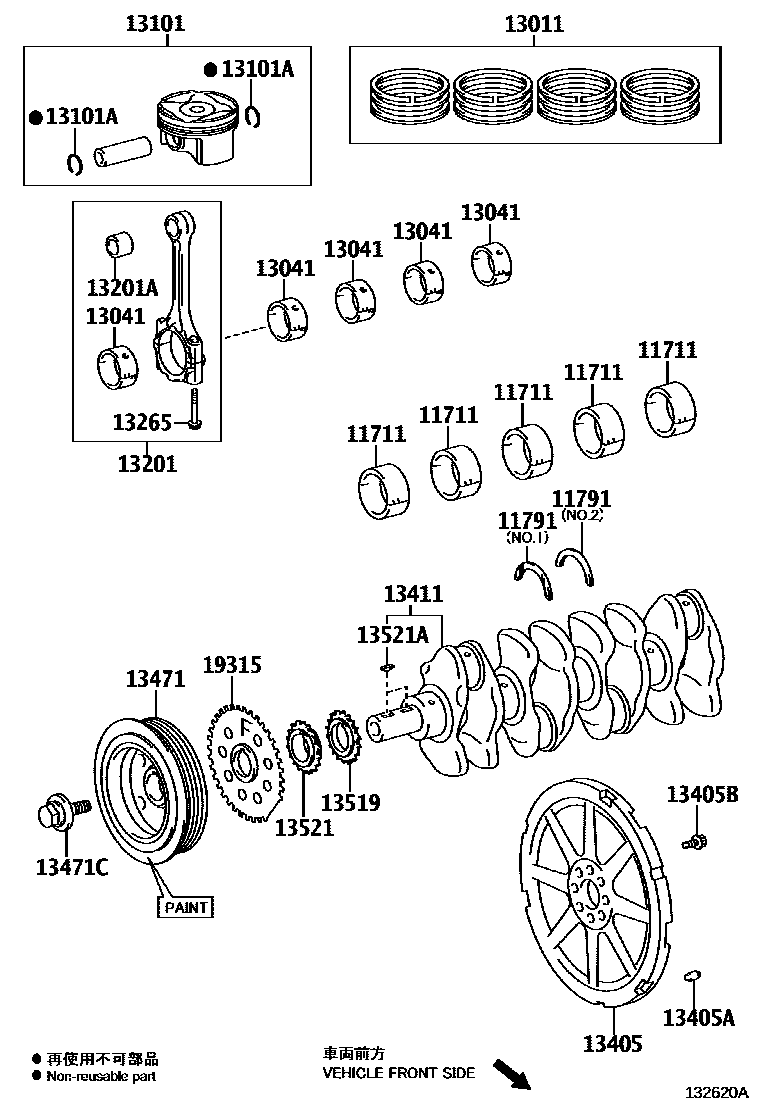

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,NO.1
STD
STD,NO.2
STD
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
ENGINE-2ZR-FXE(MADE IN UK),MARK1,(J)
MARK2,REFER REPAIR MANUAL
ENGINE-2ZR-FXE(MADE IN UK),MARK2,(J)
ENGINE-2ZR-FXE(MADE IN UK),MARK3,(J)
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MADE IN EUROPE
ENGINE-2ZR-FXE(MADE IN UK),(L)
ENGINE-2ZR-FXE(MADE IN UK),(J)
MADE IN JAPAN
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13471PULLEY, CRANKSHAFT
YELLOW PAINTED
MARK=WHITE
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
ENGINE-2ZR-FXE(MADE IN UK),(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
