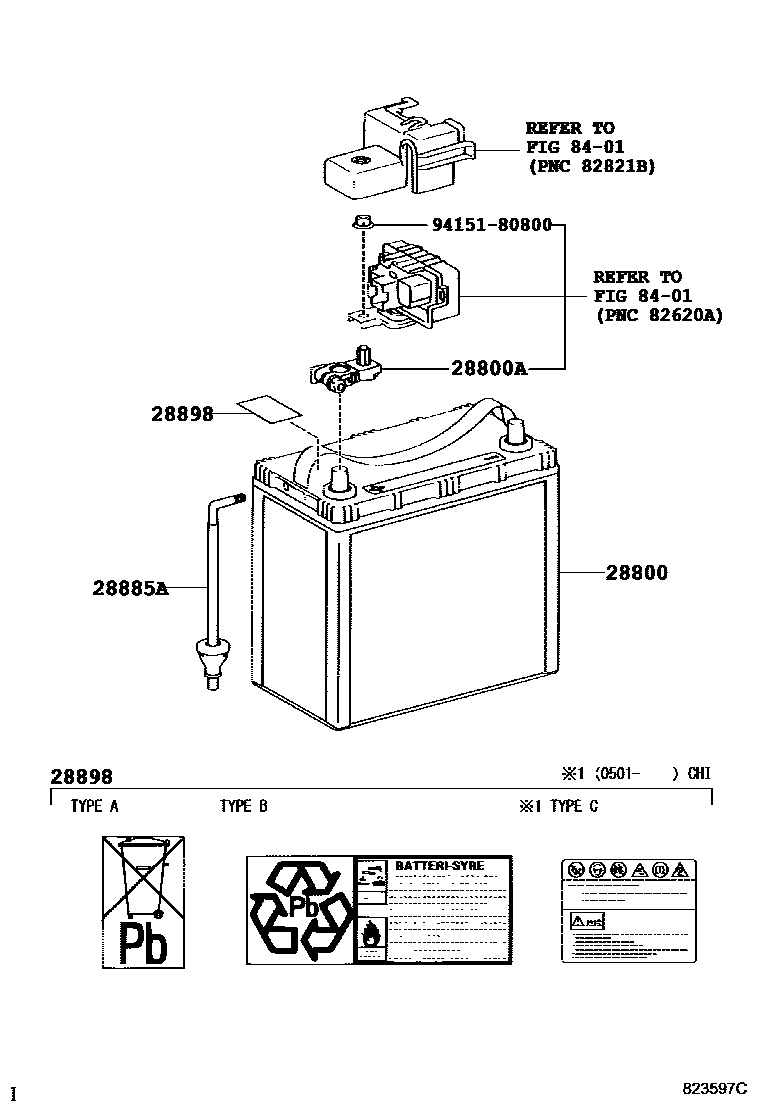

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21170i1NZFXE..NHW20..RHD200308-200903

S46B24R,W(SMART ENTRY)

sub28800-21171

main28800-21170i1NZFXE..NHW20..RHD200308-200903

S46B24R

sub28800-21171

main28800-21180i1NZFXE..NHW20..LHD200308-200903

S34B20R

sub28800-21181

28800ATERMINAL, BATTERY POSITIVE

main90982-05060i1NZFXE..NHW20200308-200903

28885HOSE, BATTERY ROOM VENTILATION

main28885-21030i1NZFXE..NHW20..LHD200510-200511

CHINA SPEC

main28885-21030i1NZFXE..NHW20200308-200903

28885AHOSE, BATTERY ROOM VENTILATION

main28885-21010i1NZFXE..NHW20200308-200903

28898PLATE, BATTERY

main28897-21010i1NZFXE..NHW20..LHD200508-200511

CHINA SPEC

main28898-16020i1NZFXE..NHW20..EUR200308-200903

main28898-46010i1NZFXE..NHW20..LHD200308-200704

NORWAY SPEC

8401

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
