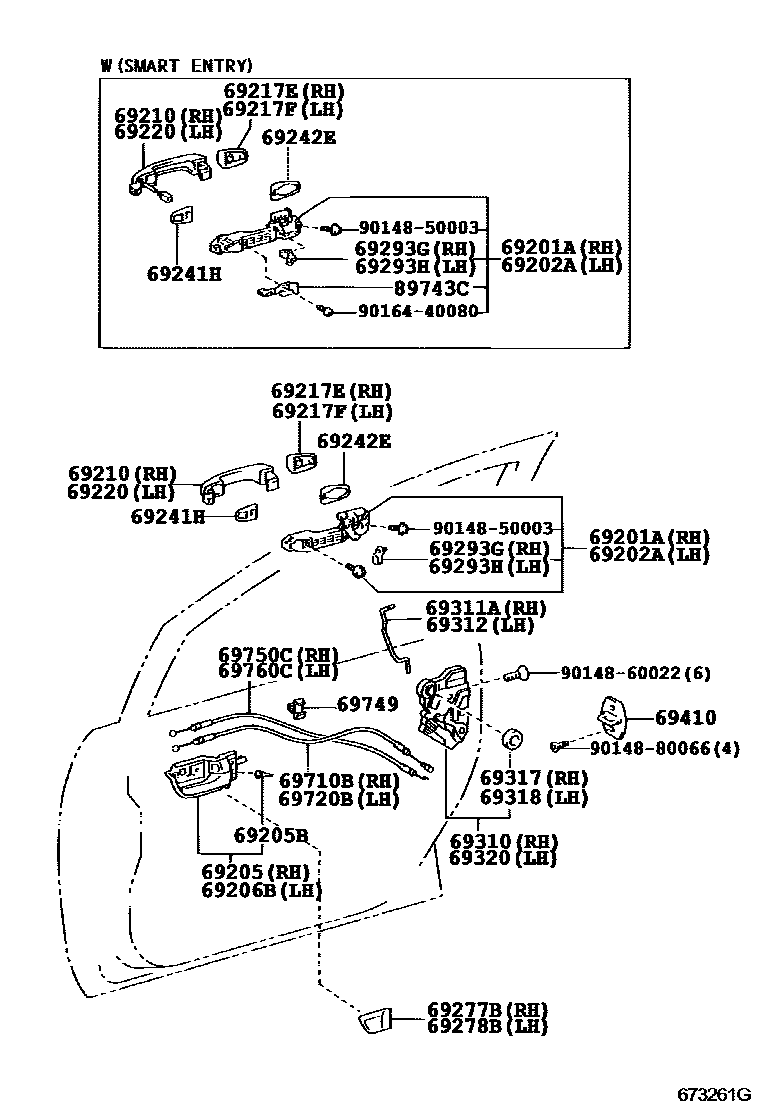

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
HONG KONG SPEC
SINGAPORE SPEC
W(SMART ENTRY)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
W(SMART ENTRY)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
W(VSC),SUPER WHITE 2,040
W(SMART ENTRY),SUPER WHITE 2,040
CHINA SPEC&W(SMART ENTRY),SUPER WHITE 2,040
W(VSC),SILVER ME.,1C0
W(SMART ENTRY),SILVER ME.,1C0
CHINA SPEC&W(SMART ENTRY),SILVER ME.,1C0
W(VSC),BLACK,202
CHINA SPEC&W(SMART ENTRY),BLACK,202
W(SMART ENTRY),BLACK,202
W(SMART ENTRY),DK. RED M.M.,3Q3
CHINA SPEC&W(SMART ENTRY),DK. RED M.M.,3Q3
W(VSC),DK. RED M.M.,3Q3
W(VSC),BRONZE M.M.,4S2
W(SMART ENTRY),BRONZE M.M.,4S2
CHINA SPEC&W(SMART ENTRY),BRONZE M.M.,4S2
W(VSC),JADE GREEN M.M.,6S9
W(SMART ENTRY),JADE GREEN M.M.,6S9
CHINA SPEC&W(SMART ENTRY),JADE GREEN M.M.,6S9
W(VSC),BLUE M.M.,8S2
W(SMART ENTRY),BLUE M.M.,8S2
CHINA SPEC&W(SMART ENTRY),BLUE M.M.,8S2
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
W(VSC),SUPER WHITE 2,040
CHINA SPEC&W(SMART ENTRY),SUPER WHITE 2,040
W(SMART ENTRY),SUPER WHITE 2,040
W(SMART ENTRY),SILVER ME.,1C0
CHINA SPEC&W(SMART ENTRY),SILVER ME.,1C0
W(VSC),SILVER ME.,1C0
W(SMART ENTRY),BLACK,202
CHINA SPEC&W(SMART ENTRY),BLACK,202
W(VSC),BLACK,202
W(VSC),DK. RED M.M.,3Q3
W(SMART ENTRY),DK. RED M.M.,3Q3
CHINA SPEC&W(SMART ENTRY),DK. RED M.M.,3Q3
W(VSC),BRONZE M.M.,4S2
W(SMART ENTRY),BRONZE M.M.,4S2
CHINA SPEC&W(SMART ENTRY),BRONZE M.M.,4S2
W(SMART ENTRY),JADE GREEN M.M.,6S9
W(VSC),JADE GREEN M.M.,6S9
CHINA SPEC&W(SMART ENTRY),JADE GREEN M.M.,6S9
W(SMART ENTRY),BLUE M.M.,8S2
W(VSC),BLUE M.M.,8S2
CHINA SPEC&W(SMART ENTRY),BLUE M.M.,8S2
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
W(SMART ENTRY)
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
W(SMART ENTRY)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69317SEAL, FRONT DOOR LOCK HOLE, RH
69318SEAL, FRONT DOOR LOCK HOLE, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
W(VSC),RH
W(SMART ENTRY),RH
CHINA SPEC&W(SMART ENTRY),RH
WITH(VSC),RH
WITH(VSC),LH
W(SMART ENTRY),LH
CHINA SPEC&W(SMART ENTRY),LH
W(VSC),LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016440080
main90164-40080
32 parts on this diagram · 1 diagram in section
