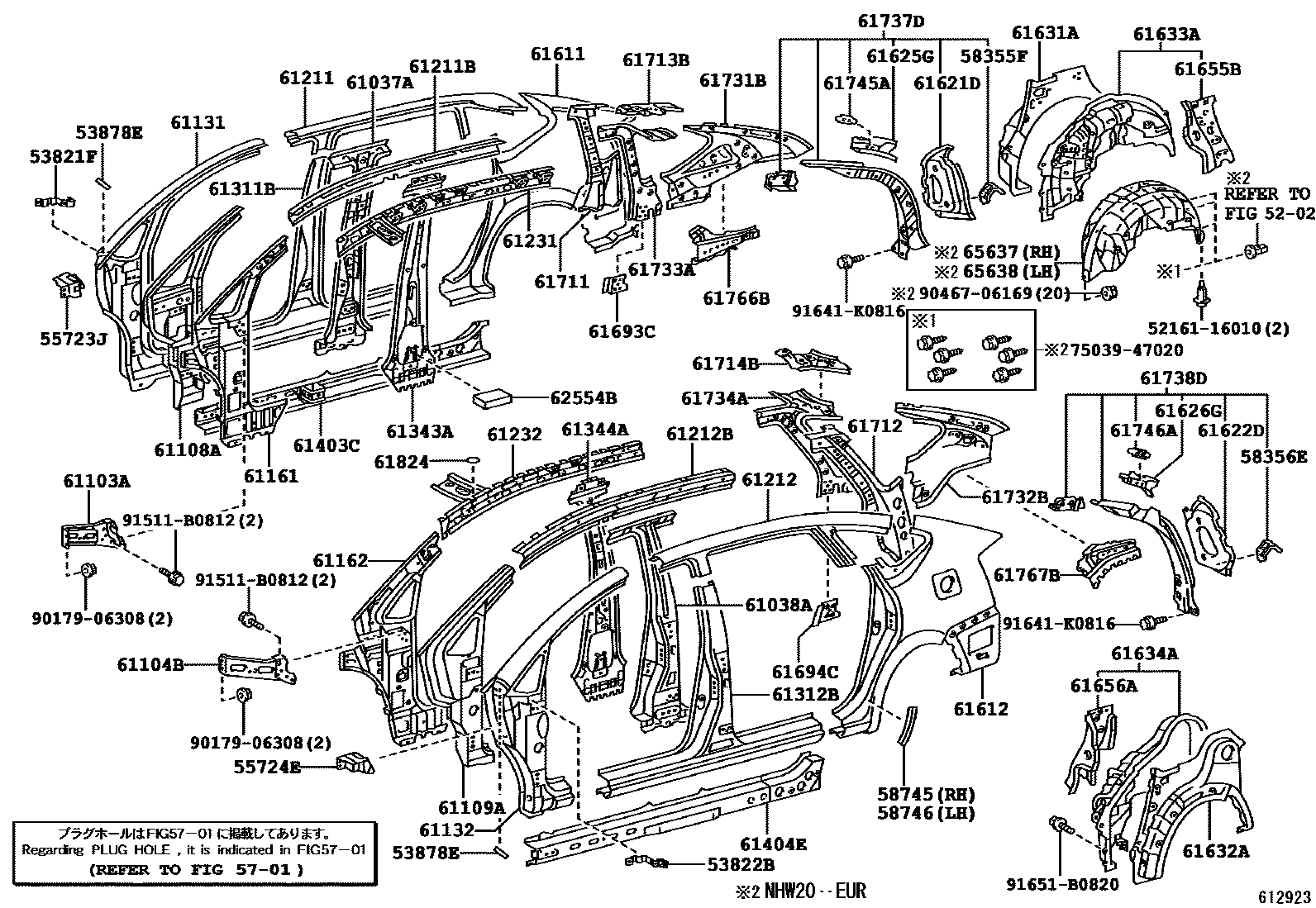

SIDE MEMBER

5202

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-47020iNHW20200308-200903

53822BBRACKET, FRONT FENDER, REAR LH

main53822-47020iNHW20200308-200903

53878ESPACER, FRONT FENDER

main53878-44040iNHW20200308-200903

55723JREINFORCEMENT, COWL TOP SIDE, RH

main55723-47010iNHW20200308-200903

55724EREINFORCEMENT, COWL TOP SIDE, LH

main55724-47010iNHW20200308-200903

5701

58355FBRACKET, REAR BUMPER ARM, RH

main58355-47010iNHW20200308-200903

58356EBRACKET, REAR BUMPER ARM, LH

main58356-47010iNHW20200308-200903

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58745-47010iNHW20200308-200903

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58746-47010iNHW20200308-200903

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-47020iNHW20200308-200903

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-47020iNHW20200308-200903

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-47010iNHW20200308-200310

sub61103-47011

main61103-47011iNHW20200310-200502

sub61103-47020

main61103-47020iNHW20200503-200903

61104BREINFORCEMENT SUB-ASSY, COWL SIDE, LH

main61104-47010iNHW20200308-200310

sub61104-47011

main61104-47011iNHW20200310-200502

sub61104-47020

main61104-47020iNHW20200503-200903

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-47030iNHW20200308-200903

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-47020iNHW20200308-200903

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-47020iNHW20200308-200903

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-47020iNHW20200308-200903

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-47040iNHW20200308-200903

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-47040iNHW20..RHD200308-200903

main61024-47050iNHW20..LHD200308-200903

61211RAIL, ROOF SIDE, OUTER RH

main61213-47010iNHW20200308-200612

sub61213-47020

main61213-47020iNHW20200701-200903

sub61213-47021

61211BRAIL, ROOF SIDE, OUTER REAR RH

main61211-47040iNHW20200308-200903

61212RAIL, ROOF SIDE, OUTER LH

main61214-47010iNHW20200308-200612

sub61214-47020

main61214-47020iNHW20200701-200903

sub61214-47021

61212BRAIL, ROOF SIDE, OUTER REAR LH

main61212-47030iNHW20200308-200903

61231RAIL, ROOF SIDE, INNER RH

main61231-47900iNHW20200308-200903

61232RAIL, ROOF SIDE, INNER LH

main61232-47900iNHW20200308-200903

61311BPILLAR, CENTER BODY, OUTER RH

main61311-47010iNHW20200308-200903

61312BPILLAR, CENTER BODY, OUTER LH

main61312-47010iNHW20200308-200903

61343APILLAR, CENTER BODY, INNER RH

main61343-47900iNHW20200308-200903

61344APILLAR, CENTER BODY, INNER LH

main61344-47900iNHW20200308-200903

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-47020iNHW20200308-200903

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-47020iNHW20200308-200903

61611PANEL, QUARTER, RH

main61601-47050iNHW20200308-200612

sub61601-47070

main61601-47070iNHW20200701-200903

61612PANEL, QUARTER, LH

main61602-47050iNHW20200308-200612

sub61602-47070

main61602-47070iNHW20200701-200903

61621DTROUGH, BACK DOOR OPENING, RH

main61621-47020iNHW20200308-200903

61622DTROUGH, BACK DOOR OPENING, LH

main61622-47020iNHW20200308-200903

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-47030iNHW20200308-200903

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-47030iNHW20200308-200903

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-47020iNHW20..ARL200308-200903

main61631-47030iNHW20..EUR200308-200903

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-47030iNHW20..ARL200308-200903

main61632-47040iNHW20..EUR200308-200903

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-47040iNHW20..ARL200308-200903

main61607-47050iNHW20..EUR200308-200903

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-47040iNHW20..ARL200308-200903

main61608-47050iNHW20..EUR200308-200903

61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH

main61655-47010iNHW20200308-200903

61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH

main61656-47010iNHW20200308-200903

61693CRETAINER, REAR SEATBACK SET, RH

main61693-47010iNHW20200308-200903

61694CRETAINER, REAR SEATBACK SET, LH

main61694-47010iNHW20200308-200903

61711PANEL, ROOF SIDE, OUTER RH

main61711-47010iNHW20200308-200903

61712PANEL, ROOF SIDE, OUTER LH

main61712-47010iNHW20200308-200903

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-47010iNHW20200308-200903

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-47010iNHW20200308-200903

61731BPANEL, ROOF SIDE, INNER RH

main61731-47020iNHW20200308-200903

61732BPANEL, ROOF SIDE, INNER LH

main61732-47020iNHW20200308-200903

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-47010iNHW20200308-200903

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-47010iNHW20200308-200903

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-47901iNHW20200308-200903

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-47901iNHW20200308-200903

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-32010iNHW20200308-200903

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61745-32010iNHW20200308-200903

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-47010iNHW20200308-200903

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-47010iNHW20200308-200903

61824PLATE, NOISE CONTROL, NO.1

main61824-12050iNHW20200308-200903

62554BPAD, PILLAR, NO.4

main62554-12180iNHW20200308-200903

65637LINER, REAR WHEEL HOUSE, RH

main65637-47010iNHW20..EUR200308-200903

65638LINER, REAR WHEEL HOUSE, LH

main65638-47010iNHW20..EUR200308-200903

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

7503947020CLIP SUB-ASSY, OUTSIDE MOULDING

main75039-47020

9017906308

main90179-06308

9046706169

main90467-06169

91511B0812

main91511-B0812

91641K0816

main91641-K0816

91651B0820

main91651-B0820

72 parts on this diagram · 1 diagram in section
