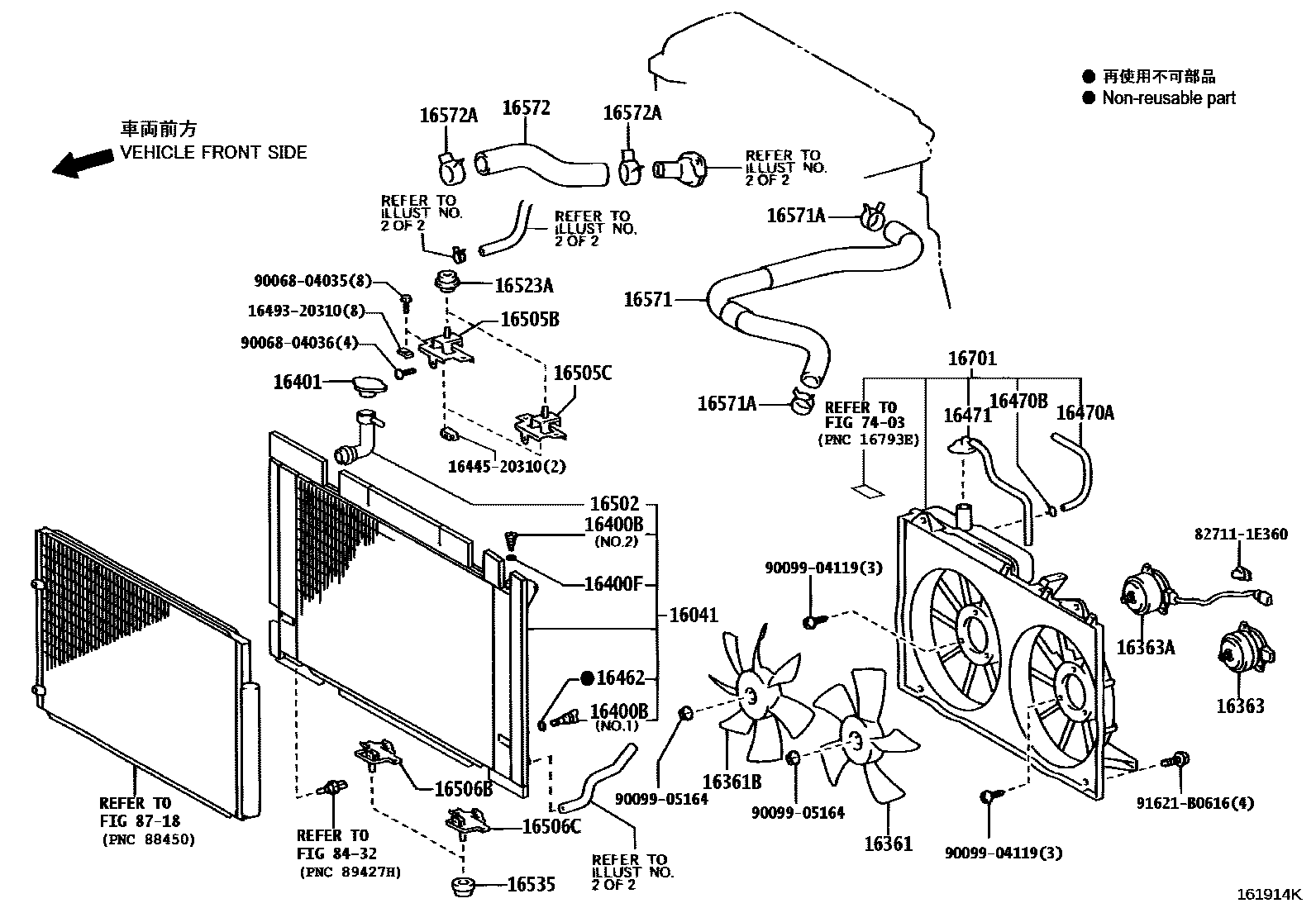

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400BPLUG, RADIATOR DRAIN COCK
NO.2
NO.1
16400FPACKING(FOR RADIATOR DRAIN COCK)
16462RING, O(FOR RADIATOR LOWER TANK)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
7403
8432
8718
1644520310
main16445-20310
1649320310
main16493-20310
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9006804035
main90068-04035
9006804036
main90068-04036
9009904119
main90099-04119
9009905164
main90099-05164
91621B0616
main91621-B0616
35 parts on this diagram · 2 diagrams in section
