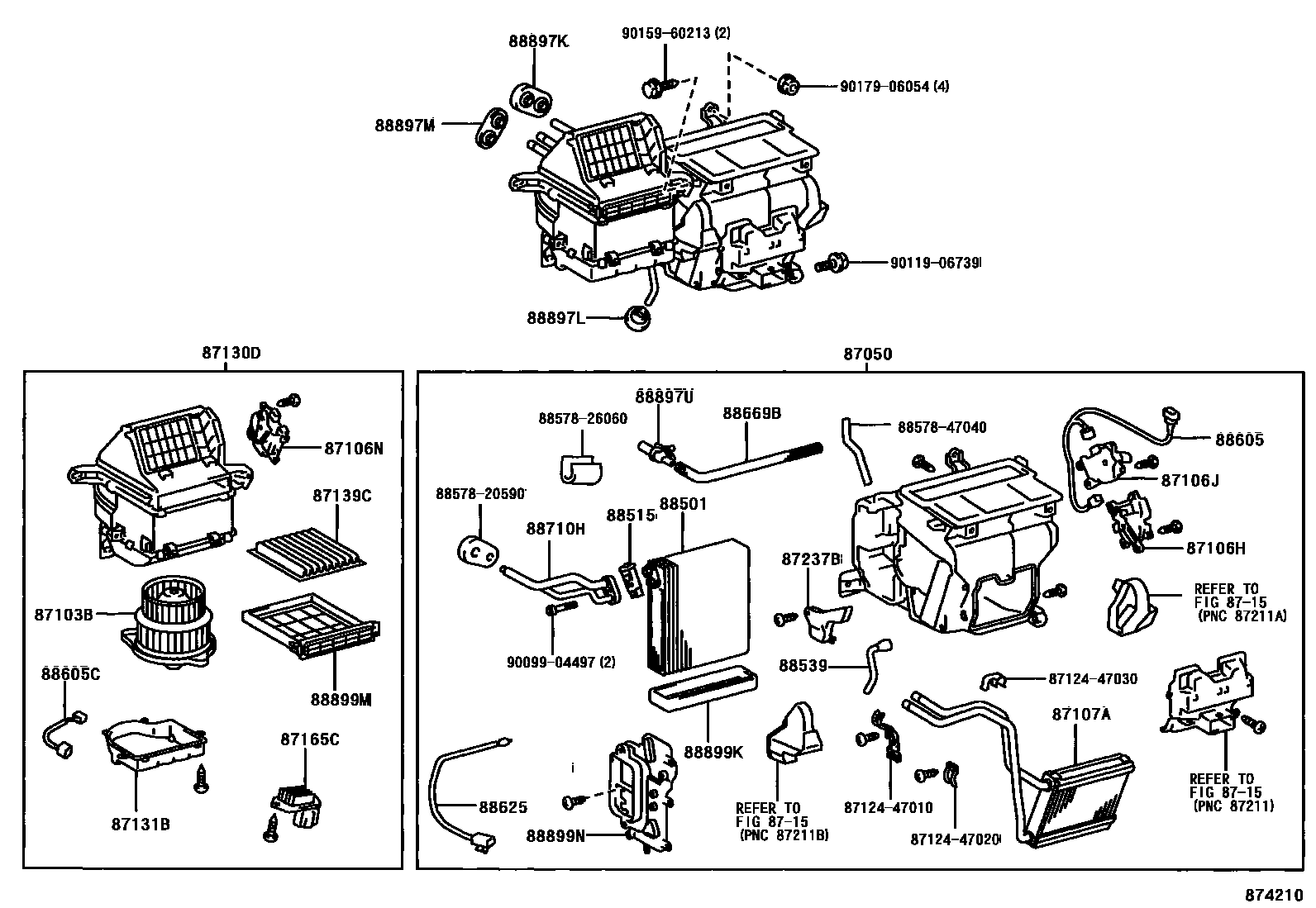

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47030iNHW11..RHD200005

main87050-47050iNHW11..LHD200005

main87050-47070iNHW11..LHD200005

COLD SPEC

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-47010iNHW11..RHD200005

main87103-47020iNHW11..LHD200005

sub87103-47050

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-47050iNHW11..RHD200005

main87106-47060iNHW11..LHD200005

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-20390iNHW11..RHD200005

main87106-20410iNHW11..LHD200005

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-47070iNHW11..LHD200005

main87106-47080iNHW11..RHD200005

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47010iNHW11..RHD200005

main87107-47020iNHW11..LHD200005

main87107-47030iNHW11..LHD200005

COLD SPEC

87130DBLOWER ASSY

main87130-47040iNHW11..RHD200005

main87130-47050iNHW11..LHD200005

87131BCASE, HEATER BLOWER

main87131-47010iNHW11..RHD200005

main87131-47020iNHW11..LHD200005

87139CFILTER, CLEAN AIR

main87139-47010iNHW11200005

8715

87165CCONTROL, BLOWER MOTOR

main87165-47010iNHW11200005

87237BCOVER, HEATER PIPING

main87237-20010iNHW11..RHD200005

main87237-47020iNHW11..LHD200005

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47010iNHW11..RHD200005

main88501-47020iNHW11..LHD200005

88515VALVE, COOLER EXPANSION

main88515-47020iNHW11200005

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-47010iNHW11..RHD200005

main88539-47020iNHW11..LHD200005

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-47030iNHW11200005

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-47040iNHW11200005

88625THERMISTOR, COOLER, NO.1

main88625-20510iNHW11200005

88669BHOSE, COOLER AIR

main88669-20160iNHW11200005

sub88669-68020

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47010iNHW11..RHD200005

main88710-47020iNHW11..LHD200005

88897KGROMMET, (FOR COOLER PIPE)

main88897-12240iNHW11200005

88897LGROMMET (FOR DRAIN HOSE)

main90099-32129iNHW11200005

88897MGROMMET (FOR HEATER PIPE)

main90480-01405iNHW11200005

88897UPIPE, ASPIRATOR

main88897-32090iNHW11200005

88899KPLATE, COVER

main88899-47030iNHW11200005

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47010iNHW11200005

88899NPLATE, COVER

main88899-47020iNHW11..RHD200005

main88899-47040iNHW11..LHD200005

8712447010CLAMP, HEATER

main87124-47010

8712447020CLAMP, HEATER

main87124-47020

8712447030CLAMP, HEATER

main87124-47030

8857820590PAKING, COOLER AIR DUCT

main88578-20590

8857826060PAKING, COOLER AIR DUCT

main88578-26060

8857847040PAKING, COOLER AIR DUCT

main88578-47040

9009904497

main90099-04497

9011906739

main90119-06739

9015960213

main90159-60213

9017906054

main90179-06054

37 parts on this diagram · 3 diagrams in section
