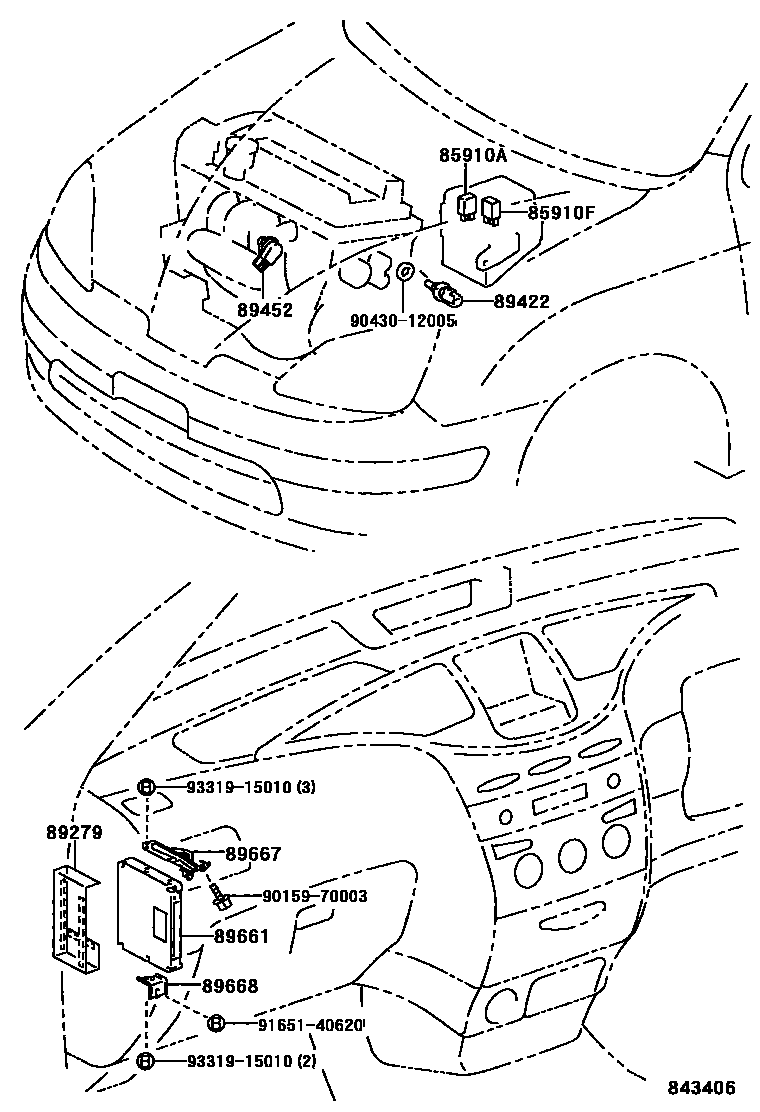

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNHW11200005

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNHW11200005

89279COVER, ENGINE CONTROL COMPUTER

main89279-47040iNHW11200005

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iNHW11200005

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30150iNHW11200005

89661COMPUTER, ENGINE CONTROL

main89661-47020iNHW11..ARL200108

main89661-47040iNHW11200005-200108

sub89661-47041

main89661-47041iNHW11..EUR200108

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-47010iNHW11..RHD200005

main89667-47020iNHW11..LHD200005

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47010iNHW11..RHD200005

main89668-47020iNHW11..LHD200005

9015970003

main90159-70003

9043012005

main90430-12005

9165140620

main91651-40620

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
