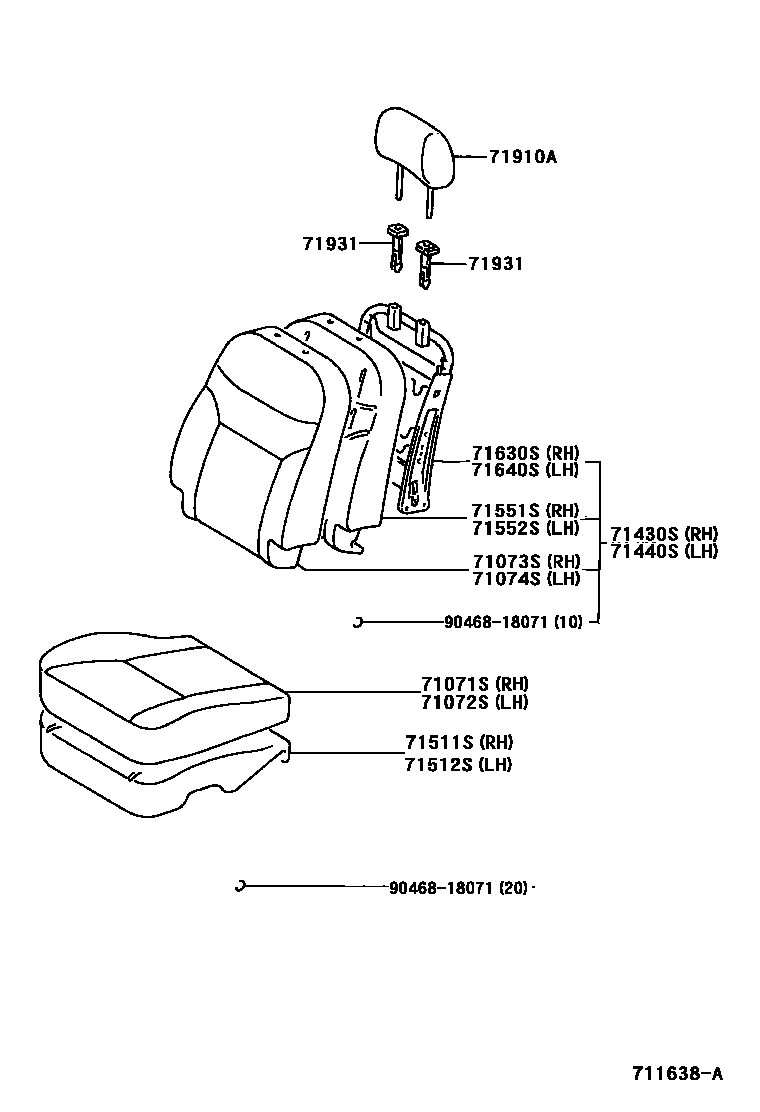

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47080-B0iNHW11..RHD200005

AMETHYST,TRIM9#

main71071-47090-B0iNHW11..LHD200005

AMETHYST,TRIM9#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-47090-B0iNHW11..RHD200005

AMETHYST,TRIM9#

main71072-47050-B0iNHW11..LHD200005

AMETHYST,TRIM9#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47070-B0iNHW11200005-200110

AMETHYST,TRIM9#

main71073-47071-B0iNHW11200110

AMETHYST,TRIM9#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-47070-B0iNHW11200005-200110

AMETHYST,TRIM9#

main71073-47071-B0iNHW11200110

AMETHYST,TRIM9#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-47070-K0iNHW11200005-200110

AMETHYST,TRIM9#

main71430-47071-K0iNHW11200110

AMETHYST,TRIM9#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-47070-K0iNHW11200005-200110

AMETHYST,TRIM9#

main71430-47071-K0iNHW11200110

AMETHYST,TRIM9#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-47020iNHW11200005

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-47020iNHW11200005

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47030iNHW11200005

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-47030iNHW11200005

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-47010iNHW11200005-200110

main71630-63030iNHW11200110

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-47010iNHW11200005-200110

main71630-63030iNHW11200110

71910AHEADREST ASSY, FRONT SEAT

main71910-47020-B0iNHW11200005

AMETHYST,TRIM9#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47010-B0iNHW11200005

W(LOCK),DK.CHARCOAL,TRIM9#

sub71930-47010

sub71930-44020

main71931-47010-B0iNHW11200005

W/O(LOCK),DK.CHARCOAL,TRIM9#

sub71931-47010

sub71931-42020

9046818071

main90468-18071

15 parts on this diagram · 2 diagrams in section
