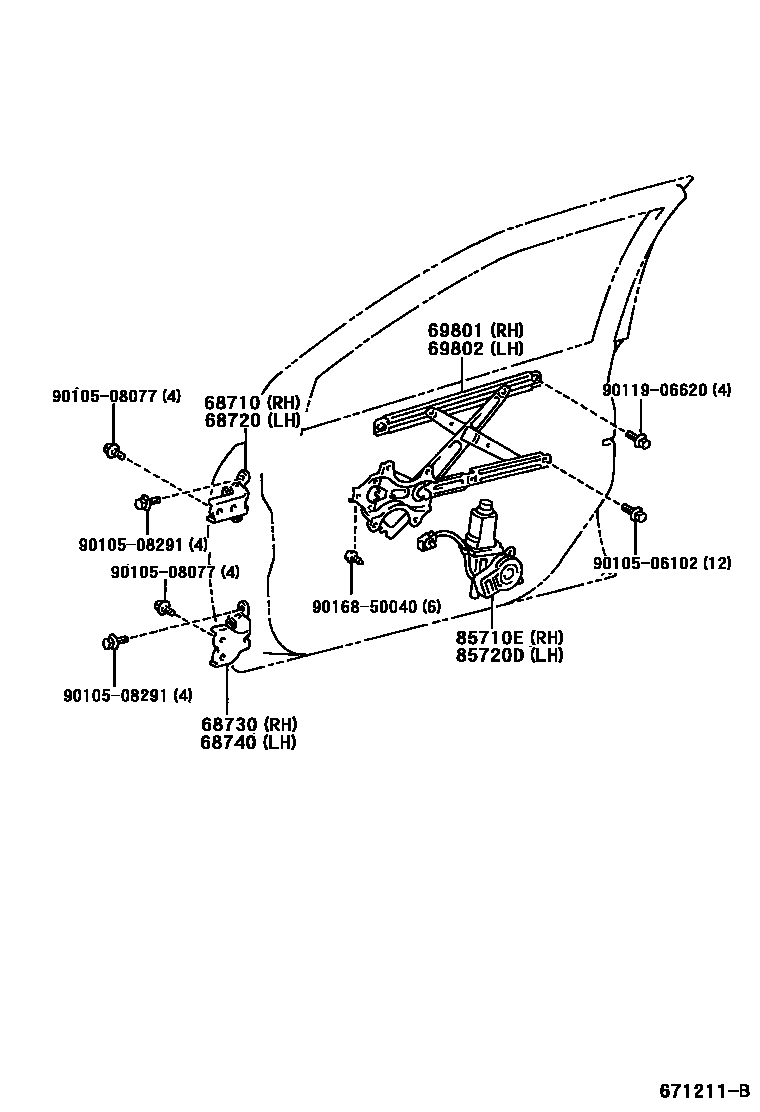

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iNHW11200005

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iNHW11200005

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-60050iNHW11200005

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-60050iNHW11200005

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-47010iNHW11200005

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-47010iNHW11200005

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47020iNHW11..RHD200005

main85710-47030iNHW11..LHD200005

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47020iNHW11..RHD200005

main85720-47030iNHW11..LHD200005

9010506102

main90105-06102

9010508077

main90105-08077

9010508291

main90105-08291

9011906620

main90119-06620

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
