SIDE MEMBER
57671DBRACKET, REAR SEATBACK HINGE MOUNTING, RH
57672CBRACKET, REAR SEATBACK HINGE MOUNTING, LH
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58331EBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58343DBRACKET, REAR ABSORBER MOUNTING, NO.2 RH
58344DBRACKET, REAR ABSORBER MOUNTING, NO.2 LH
58396BBRACKET, WIRE HARNESS CLAMP
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61113APANEL, SIDE, OUTER NO.2 RH
61114BPANEL, SIDE, OUTER NO.2 LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61147DEXTENSION, FRONT BODY PILLAR, UPPER OUTER RH
61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH
61211RAIL, ROOF SIDE, OUTER RH
sub61211-47021
61212RAIL, ROOF SIDE, OUTER LH
sub61212-47021
61212CRAIL, ROOF SIDE, LH
61235BBRACKET, ASSIST GRIP
61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61411AREINFORCEMENT, ROCKER PANEL, NO.1 RH
61611PANEL, QUARTER, RH
sub61601-47021
61612PANEL, QUARTER, LH
sub61602-47021
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61742BREINFORCEMENT, BACK WINDOW OPENING, LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826DPLATE, NOISE CONTROL, NO.3
62552GPAD, PILLAR, NO.2 RH
sub55783-50070
62554BPAD, PILLAR, NO.4
sub61824-12100
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
8271533250BRACKET,WIRING HARNESS CLAMP
main82715-33250
9033325003
main90333-25003
9054111006
main90541-11006
9095001646
main90950-01646
9095001955
main90950-01955
9095001958
main90950-01958
9162160816
main91621-60816

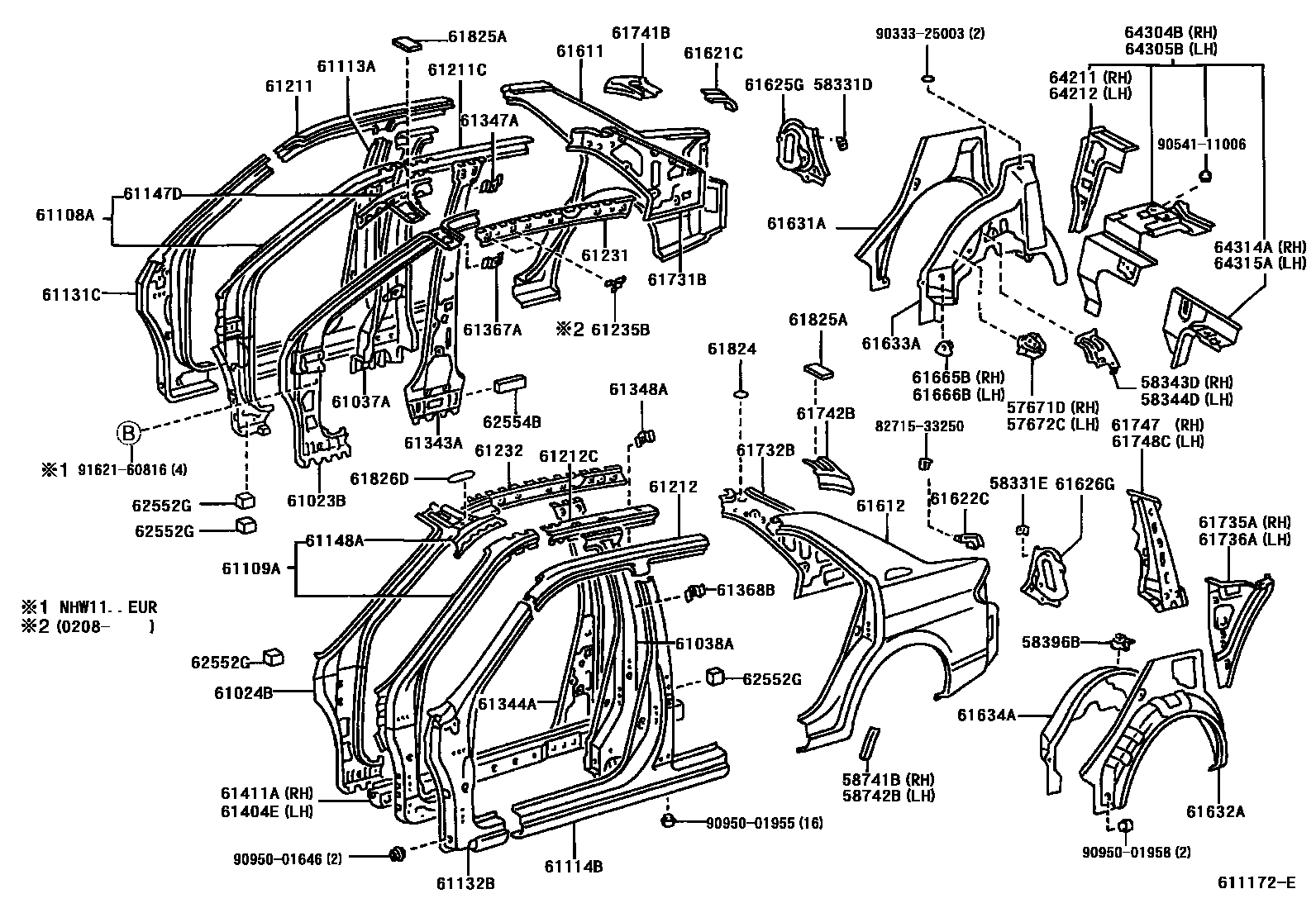

74 parts on this diagram · 1 diagram in section
