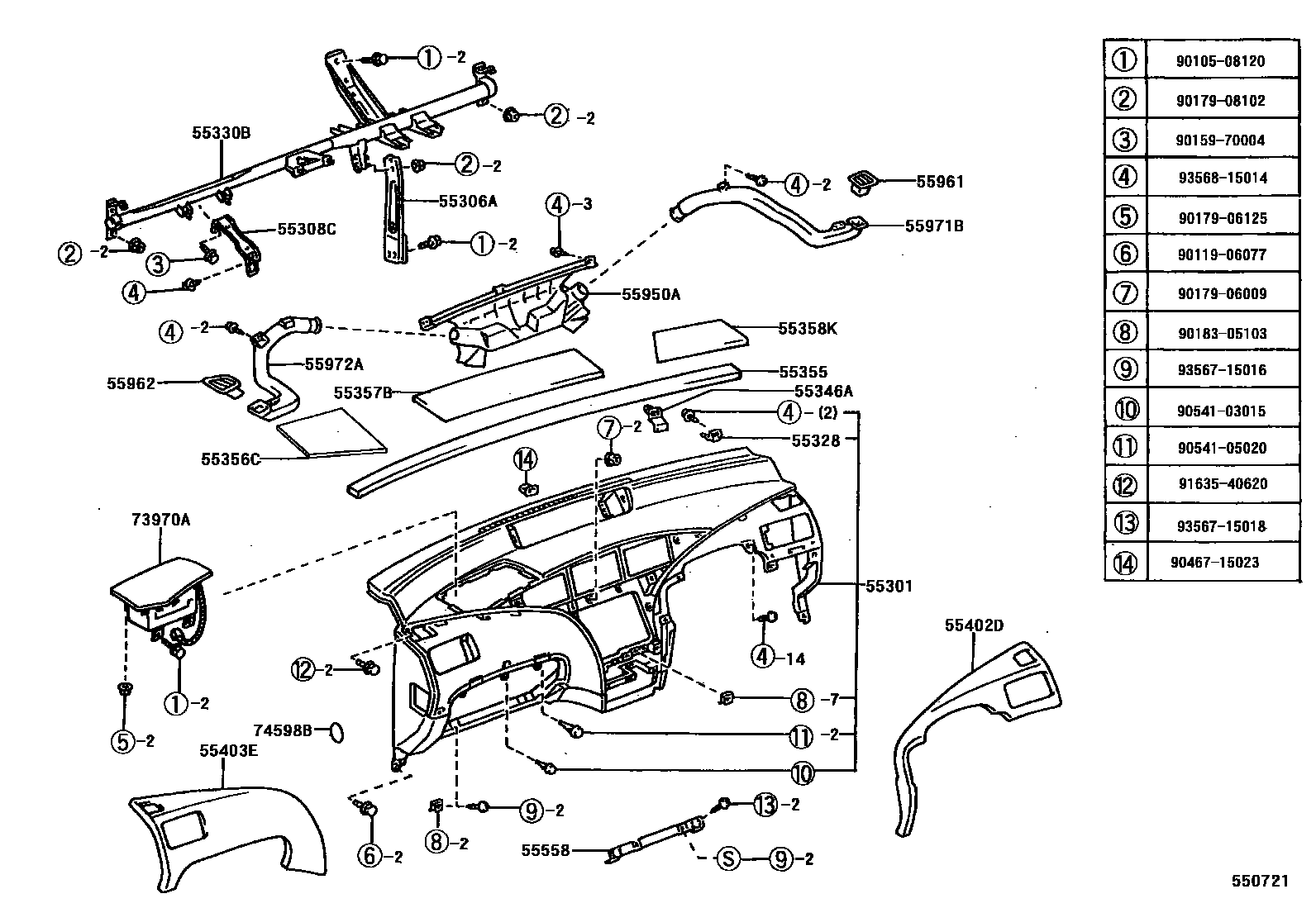

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
AMETHYST,TRIM9#
AMETHYST,TRIM9#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55346ACLIP, INSTRUMENT PANEL, NO.2
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
LT.AMETHYST,TRIM9#
LT.AMETHYST,TRIM9#
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
LT.AMETHYST,TRIM9#
LT.AMETHYST,TRIM9#
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
LT.AMETHYST,TRIM9#
55962NOZZLE, SIDE DEFROSTER, NO.2
LT.AMETHYST,TRIM9#
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
AMETHYST,TRIM9#
AMETHYST,TRIM9#
74598BLABEL, PASSENGER AIRBAG CAUTION
9010508120
9011906077
9015970004
9017906009
9017906125
9017908102
9018305103
9046715023
9054103015
9054105020
9163540620
9356715016
9356715018
9356815014
34 parts on this diagram · 4 diagrams in section
