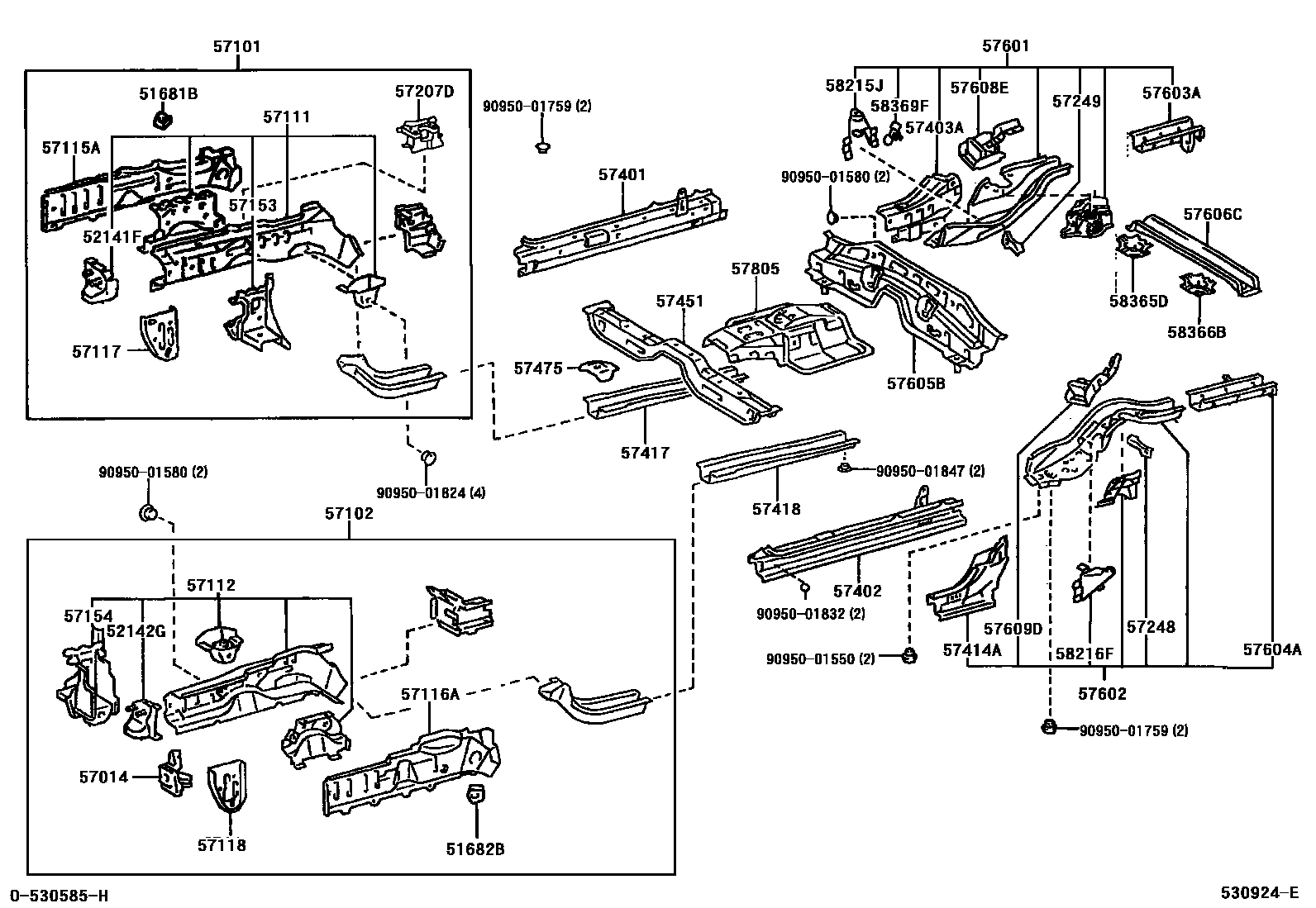

FLOOR SIDE MEMBER
51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51682BBRACKET, FLEXIBLE HOSE, LH
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57207DBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57248BRACKET, FLEXIBLE HOSE, NO.2
57249BRACKET, FLEXIBLE HOSE, NO.1
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57475PLATE, FRONT FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609DREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57805REINFORCEMENT SUB-ASSY, BELT ANCHOR
58215JBRACKET, REAR SEAT MOUNTING, RH
58216FBRACKET, REAR SEAT MOUNTING, LH
58365DBRACKET, FUEL TANK SUPPORT, RH
58366BBRACKET, FUEL TANK SUPPORT, LH
58369FBRACKET, FUEL TUBE, NO.3
9095001550
main90950-01550
9095001580
main90950-01580
9095001759
main90950-01759
9095001824
main90950-01824
9095001832
main90950-01832
9095001847
main90950-01847
46 parts on this diagram · 1 diagram in section
