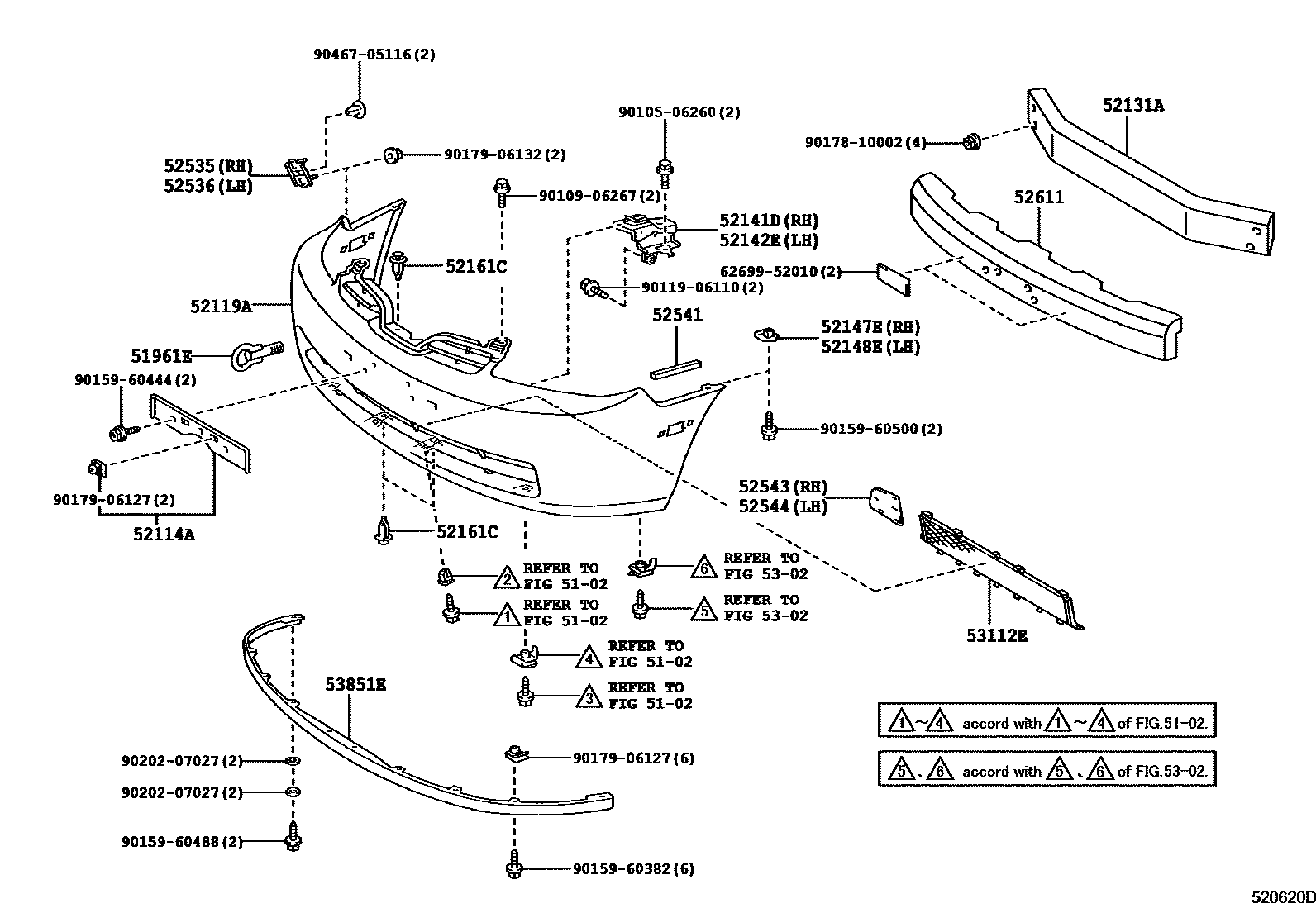

FRONT BUMPER & BUMPER STAY

5102

51961EHOOK, FRONT

main51960-47010iNHW11200005

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-47010iNHW11200005

sub52114-30110

52119ACOVER, FRONT BUMPER

main52119-47900iNHW11200005

52131AREINFORCEMENT, FRONT BUMPER

main52131-47030iNHW11200005

52141DSTAY, FRONT BUMPER, RH

main52081-47020iNHW11200005-200111

sub52081-47021

main52081-47021iNHW11200111

52142ESTAY SUB-ASSY, FRONT BUMPER, LH

main52082-47020iNHW11200005-200111

sub52082-47021

main52082-47021iNHW11200111

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-16080iNHW11200005

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-16080iNHW11200005

52161CPIECE, FRONT BUMPER

main52161-16010iNHW11200005

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-47010iNHW11200005

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-47010iNHW11200005

52541PROTECTOR, FRONT BUMPER

main52541-47010iNHW11200005

52543SEAL, FRONT BUMPER SIDE, RH

main52543-47010iNHW11200005

52544SEAL, FRONT BUMPER SIDE, LH

main52544-47010iNHW11200005

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47010iNHW11200005

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-47010iNHW11200005

53851EPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-47020iNHW11200005

6269952010ORNAMENT, QUARTER TRIM POCKET

main62699-52010

9010506260

main90105-06260

9010906267

main90109-06267

9011906110

main90119-06110

9015960382

main90159-60382

9015960444

main90159-60444

9015960488

main90159-60488

9015960500

main90159-60500

9017810002

main90178-10002

9017906127

main90179-06127

9017906132

main90179-06132

9020207027

main90202-07027

9046705116

main90467-05116

32 parts on this diagram · 1 diagram in section
