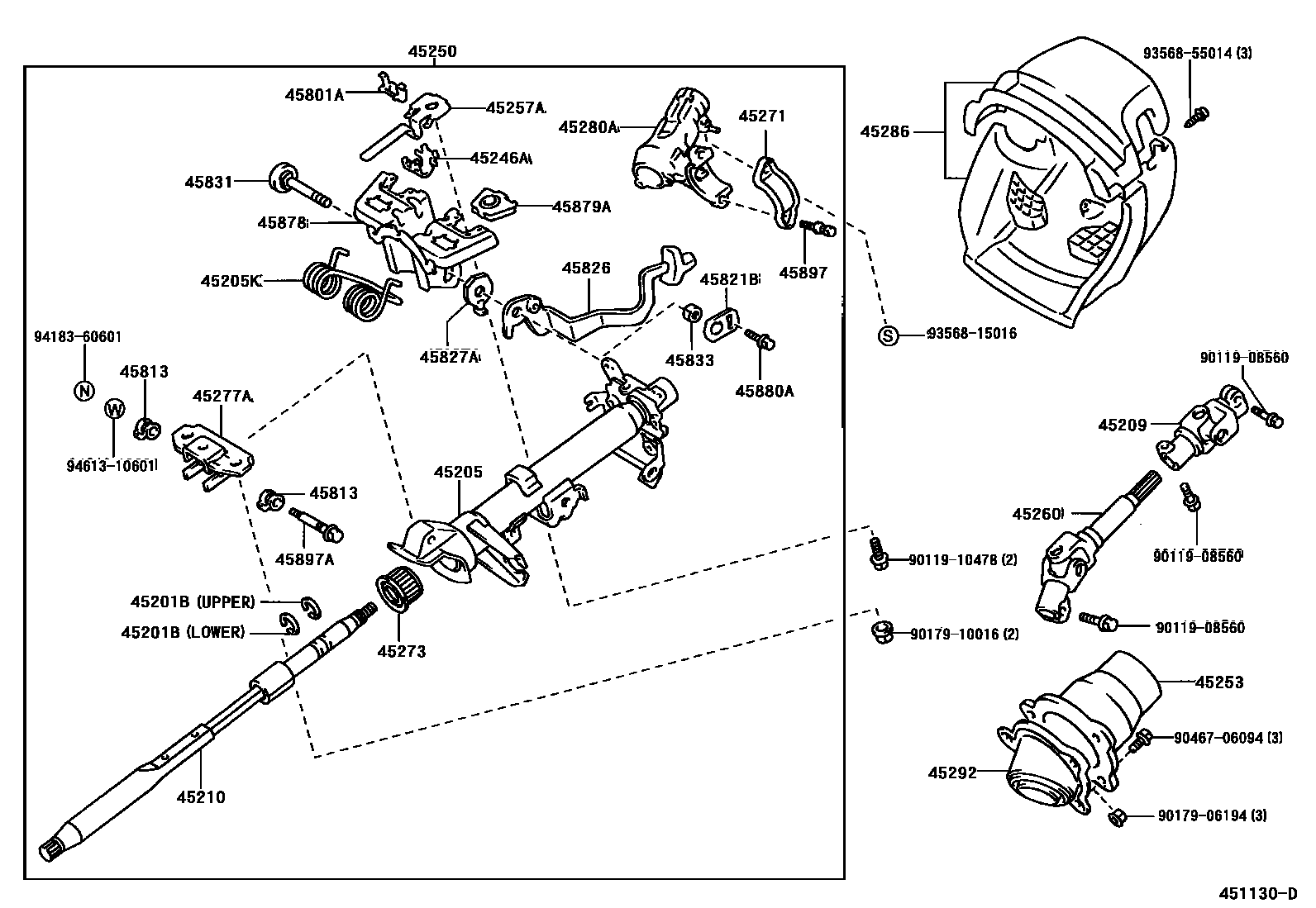

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205KSPRING(FOR STEERING COLUMN TUBE)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45250COLUMN ASSY, STEERING
LT.AMETHYST,TRIM9#
LT.AMETHYST,TRIM9#
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45277ASUPPORT, TILT STEERING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
LT.AMETHYST,TRIM9#
LT.AMETHYST,TRIM9#
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=14
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
LT.AMETHYST,TRIM9#
LT.AMETHYST,TRIM9#
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9011910478
main90119-10478
9017906194
main90179-06194
9017910016
main90179-10016
9046706094
main90467-06094
9356815016
main93568-15016
9356855014
main93568-55014
9418360601
main94183-60601
9461310601
main94613-10601
37 parts on this diagram · 2 diagrams in section
