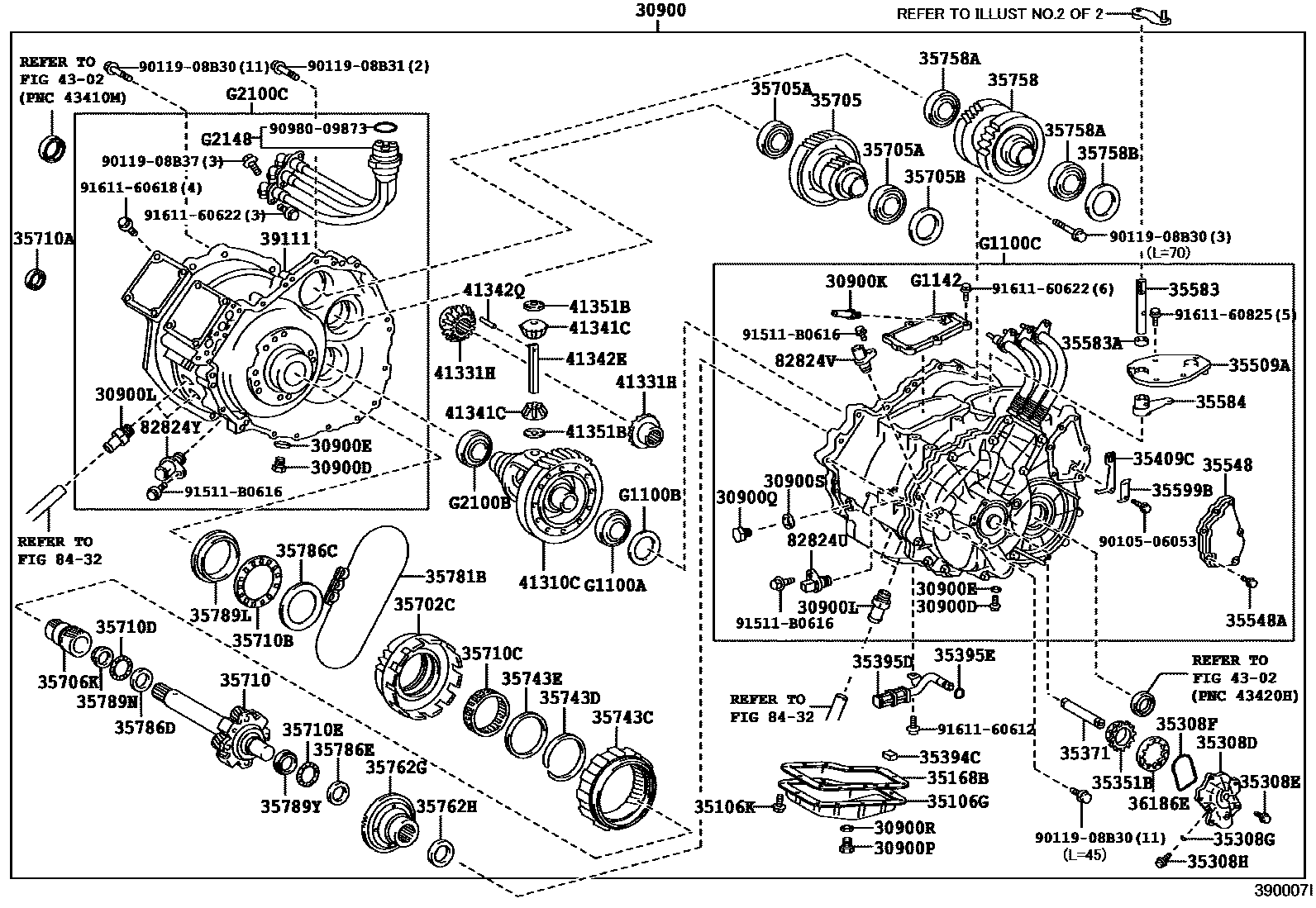

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900LUNION(FOR TRANSAXLE HOUSING)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
35106GPAN SUB-ASSY, TRANSAXLE OIL
35106KBOLT, W/WASHER (FOR TRANSAXLE OIL PAN & CASE)
35168BGASKET, TRANSAXLE OIL PAN
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308EBOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35371SHAFT, OIL PUMP DRIVE
35394CMAGNET, OIL CLEANER
35395DSTRAINER, TRANSMISSION OIL
35395ERING, O(FOR TRANSAXLE OIL STRAINER)
35409CSPRING SUB-ASSY, MANUAL DETENT
35509ACOVER SUB-ASSY, PARKING SHAFT
35548COVER, PARKING
35548ABOLT, W/WASHER (FOR PARKING COVE & CASE)
35583SHAFT, PARKING LOCK
35583ASEAL, OIL(FOR PARKING LOCK SHAFT)
35584LEVER, PARKING LOCK, NO.3
35599BCOVER, MANUAL DETENT SPRING
35702CSPROCKET SUB-ASSY, TRANSMISSION DRIVE
35705GEAR SUB-ASSY, COUNTER DRIVEN
35705ABEARING(FOR COUNTER DRIVEN GEAR)
35705BSHIM(FOR COUNTER DRIVEN GEAR)
T=1.25,MARK 1
T=1.28,MARK 2
T=1.25,MARK 3
T=1.76,MARK 18
T=1.79,MARK 19
T=1.82,MARK 20
T=1.85,MARK 21
T=1.88,MARK 22
T=1.34,MARK 50
T=1.36,MARK 51
T=1.38,MARK 52
T=1.40,MARK 53
T=1.42,MARK 54
T=1.44,MARK 55
T=1.46,MARK 56
T=1.48,MARK 57
T=1.50,MARK 58
T=1.52,MARK 59
T=1.54,MARK 60
T=1.56,MARK 61
T=1.58,MARK 62
T=1.60,MARK 63
T=1.62,MARK 64
T=1.64,MARK 65
T=1.66,MARK 66
T=1.68,MARK 67
T=1.70,MARK 68
T=1.72,MARK 69
T=1.74,MARK 70
35706KGEAR SUB-ASSY, PLANETARY SUN
35710SHAFT ASSY, INPUT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
BROWN
BLACK
35710BBEARING, THRUST NEEDLE ROLLER, NO.1(FOR DRIVE SPROCKET)
35710CBEARING, NEEDLE ROLLER, NO.2(FOR DRIVE SPROCKET)
35710DBEARING, THRUST NEEDLE ROLLER, NO.1(FOR INPUT SHAFT)
35710EBEARING, THRUST NEEDLE ROLLER, NO.2(FOR INPUT SHAFT)
35743CGEAR, PLANETARY RING
35743DRING, SNAP(FOR PLANETARY RING GEAR)
35743ESPACER(FOR PLANETARY RING GEAR)
35758GEAR, SPROCKET DRIVEN & COUNTER DRIVE
35758ABEARING, RADIAL BALL(FOR CONTER DRIVE GEAR)
35758BSHIM(FOR COUNTER DRIVE GEAR)
T=1.35,MARK A
T=1.40,MARK B
T=1.45,MARK C
T=1.50,MARK D
T=1.55,MARK E
T=1.60,MARK F
T=1.65,MARK G
T=1.70,MARK H
T=1.75,MARK J
T=1.80,MARK K
T=1.85,MARK L
35762GFLANGE, PLANETARY RING GEAR
35762HSHIM(FOR PLANETARY RING GEAR FLANGE)
35781BCHAIN, TRANSMISSION DRIVE
35786CRACE, THRUST BEARING, NO.1
35786DRACE, THRUST BEARING, NO.1(FOR INPUT SHAFT)
35786ERACE, THRUST BEARING, NO.2(FOR INPUT SHAFT)
35789LRACE, THRUST BEARING, NO.2
35789NRACE, THRUST BEARING, NO.2(FOR INPUT SHAFT)
35789YRACE, THRUST BEARING NO.3(FOR INPUT SHAFT)
36186EROTOR, OIL PUMP DRIVEN
39111COVER, POWER CABLE
41310CCASE ASSY, DIFFERENTIAL
41331HGEAR, DIFFERENTIAL SIDE
41341CPINION, DIFFERENTIAL
41342ESHAFT, DIFFERENTIAL PINION
41342QPIN, STRAIGHT(FOR DIFFERENTIAL PINION SHAFT)
41351BWASHER, DIFFERENTIAL PINION THRUST
4302
82824UCONNECTOR, WIRING HARNESS(FOR MOTOR STATOR)
82824VCONNECTOR, WIRING HARNESS(FOR MOTOR REVOLUTION SENSOR)
82824YCONNECTOR, WIRING HARNESS(FOR GENERATOR)
8432
G1100ABEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE LH)
G1100BSHIM(FOR DIFFERENTIAL CASE LH)
T=2.40,MARK 11
T=1.80,MARK 1
T=1.83,MARK 2
T=1.86,MARK 3
T=1.89,MARK 4
T=2.34,MARK 19
T=2.37,MARK 20
T=2.43,MARK 22
T=2.63,MARK 23
T=1.92,MARK 50
T=1.94,MARK 51
T=1.96,MARK 52
T=1.98,MARK 53
T=2.00,MARK 54
T=2.02,MARK 55
T=2.04,MARK 56
T=2.06,MARK 57
T=2.08,MARK 58
T=2.10,MARK 59
T=2.12,MARK 60
T=2.14,MARK 61
T=2.16,MARK 62
T=2.18,MARK 63
T=2.20,MARK 64
T=2.22,MARK 65
T=2.24,MARK 66
T=2.26,MARK 67
T=2.28,MARK 68
T=2.30,MARK 69
T=2.32,MARK 70
G1100CMOTOR ASSY, HYBRID VEHICLE
G1142COVER, MOTOR WATERJACET
G2100BBEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE RH)
G2100CGENERATOR ASSY, HYBRID VEHICLE
G2148CABLE, GENERATOR
9010506053
9011908B30
9011908B31
9011908B37
9098009873
91511B0616
9161160612
9161160618
9161160622
9161160825
86 parts on this diagram · 2 diagrams in section
